Description

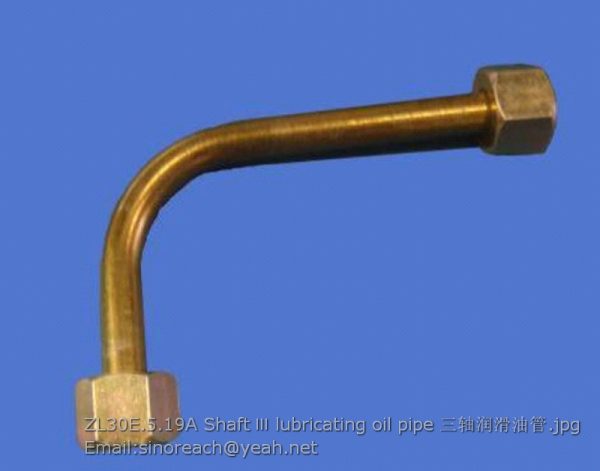

LONKING ZL30E.5.19A Shaft Ⅲ lubricating oil pipe

LG853.01.02 变矩器回油接头 Torque converter oil return connector 1
612600080024 燃油进油管 Fuel inlet pipe 1
LG853.01-002 测压接头 Pressure measuring connector 1 403727
GB/T5782 螺栓M14×65 Bolt M14×65 4
GB/T97.1 垫圈14 Washer 14 4
GB/T93 垫圈14 Washer 14 4
GB/T6170 螺母M14 Nut M14 8
GB/T5782 螺栓M22×55 Bolt M22×55 2
GB/T97.1 垫圈22 Washer 22 2
GB/T93 垫圈22 Washer 22 2
LG856.01Ⅰ-002 水箱拉杆 Radiator pull rod 2
612600160003 水泵至冷却器水管 Water pipe from pump to cooler 1
JB/T8870-1999 喉箍φ44-64 Hoopφ44-64 2
LG853.01-007 水箱胶垫 Radiator rubber pad 4

LG856.02.01 变矩器总成 Torque converter assembly
LG853.02-001 双头螺栓 Stud
GB/T6171 螺母M10×1 Nut M10×1
GB/T93 垫圈10 Washer 10
LG856.02Ⅰ.02 双变油路总成 Torque converter and transmission oil circuit assembly
GB/T93 垫圈12 Washer 12
GB/T5782 螺栓M12×45 Bolt M12×45
LG50EX.02-001 吸油胶管 Oil suction hose

LG853.02.01-001 机芯总成 Core assembly 1 402000-1
LG853.02.01-012 衬垫 Gasket 1 402215
LG853.02.01-013 观察盖 Observing cover 1 402214A
LG853.02.01-002 变矩器壳体 Torque converter body case 1 402216
JB/T8547-97 金属密封环YH×125 Metal seal ring YH×125 1
GB/T5782 螺栓M10×25 Bolt M10×25 9
GB/T93 垫圈10 Washer 10 9
LG853.02.01-003 导轮座 Guide wheel bracket 1 402222
LG853.02.01-004 铜垫圈 Copper washer 2 402106
LG853.02.01-005 管接头 Pipe connector 2 402111A
LG853.02.01-007 弹簧Ⅰ Spring Ⅰ 1 402229
LG853.02.01-008 进口阀芯 Inlet valve core 1 402233
LG853.02.01-006 阀盖 Valve cover 1 402228A
LG853.02.01-011 螺塞Z3/4〞 Plug screw Z3/4〞 1 402223
GB/T5781 螺栓M8×20 Bolt M8×20 2
GB/T93 垫圈8 Washer 8 8
GB/T5781 螺栓M8×16 Bolt M8×16 6
LG853.02.01-015 出口阀芯 Outlet valve core 1 402234
LG853.02.01-010 弹簧Ⅱ Spring Ⅱ 1 402231A
LG853.02.01-009 盖板 Cover board 1 402230A
LG853.02.01-014 回油接头 Oil return connector 1 402204
