Description

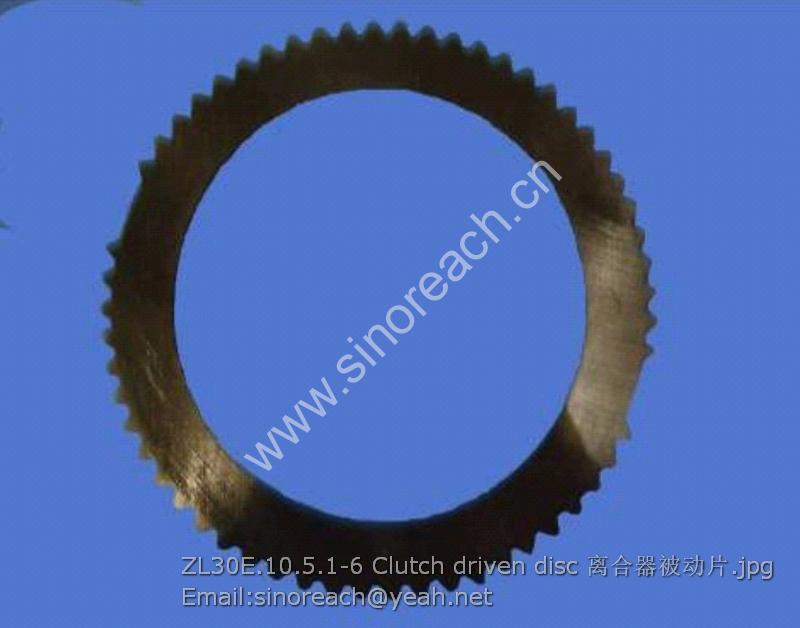

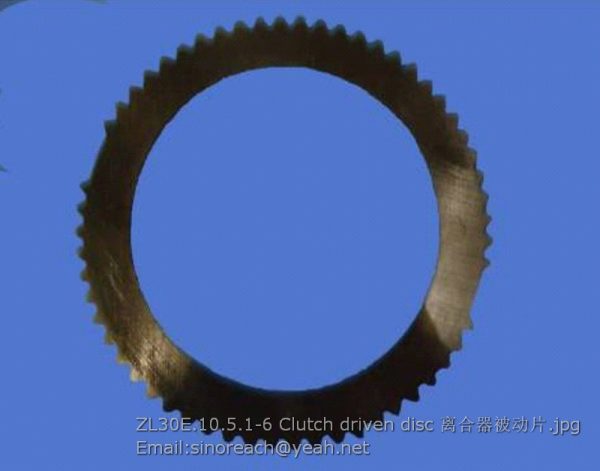

LONKING ZL30E.10.5.1-6 Clutch driven disc

LG856.10Ⅱ.01 前车架 Front frame 1
GB/T5783 螺栓M10×20 Bolt M10×20 4
GB/T93 垫圈10 Washer 10 4
LG855.10-001 盖板 Cover board 1 LG855.10001A
LG855.10.04 翻斗缸后销轴焊合 Tilt cylinder rear pin weldment 1 LG50F.10002-003A
JB/T7940.1-1995 油杯M10×1 Oil cup M10×1 11 GB/T1152
GB/T5783 螺栓M20×30 Bolt M20×30 9
GB/T93 垫圈20 Washer 20 9
GB/T97.1 垫圈20 Washer 20 7
LG855.10.05 动臂上销轴焊合 Lift arm upper pin weldment 2 LG50F.10005-005A
LG855.10.06 动臂缸后销轴焊合 Lift cylinder rear pin weldment 2 LG50F.10007-008A
LG855.10.07 后转向销轴焊合 Rear steering pin weldment 2 LG50F.10011-012A
LG855.10-002 转向缸后垫套 Steering cylinder rear tray 2 LG50F.10013A
GB/T5783 螺栓M16×35 Bolt M16×35 4
GB/T93 垫圈16 Washer 16 12
LG855.10.08 油箱固定座 Oil tank bracket 2 LG50E.10001-002A
LG856.10Ⅰ.02 后车架 Rear frame 1
LG856.10.02 后车架 Rear frame 1
LG855.10-003 双变滤清器支架 Oil filter bracket 1 510009C
LG855.10.03 副车架 Oscillating suspension 1 LG50F.10300B
LG853.10-018 挡块 Block 8 410002B
LG855.10-004 铜垫 Copper pad 2 LG50F.10035A

LG855.10.09 副车架销 Oscillating suspension pin 2 LG50F.10033-034A
LG855.10.10 副车架注油管1 Oscillating suspension oil filling pipe 1 1 LG50F.10042-042A
GB/T5782 螺栓M12×110 Bolt M12×110 8
GB/T93 垫圈12 Washer 12 22
GB/T6170 螺母M12 Nut M12 8
GB/T297-1994 轴承32215 Bearing 32215 4 GB297-84 7515E
LG853.10-008 端盖 End cover 1 510014C
LG853.10-007 铰接销 Articulating pin 2 510012C
LG853.10-006 压板 Press plate 2 510011C
GB/T13871-1992 FB形油封75×100×12 FB-type seal 75×100×12 2
LG853.10-005 上轴承盖 Upper bearing cover 2 510013C
LG853.10-004 下轴承盖 Lower bearing cover 2 510015C
LG853.10-003 调整垫 Adjusting spacer 2sets 510018C
LG853.10-001 上轴套 Upper shaft sleeve 1 LG50F.10020A
LG853.10-002 下轴套 Lower shaft sleeve 1 510017C
GB/T13871-1992 FB形油封85×110×12 FB-type seal 85×110×12 2
GB/T5783 螺栓M12×30 Bolt M12×30 14
LG855.10.11 前转向销轴焊合 Front steering pin weldment 2 LG50F.10015-016A
LG855.10.12 右前转向销注油管 Right front steering pin oil filling pipe 1 LG50F.10018-018A
LG855.10.13 左前转向销注油管 Left front steering pin filling pipe 1
LG855.10-006 调整垫圈 Adjusting washer 1set
