Description

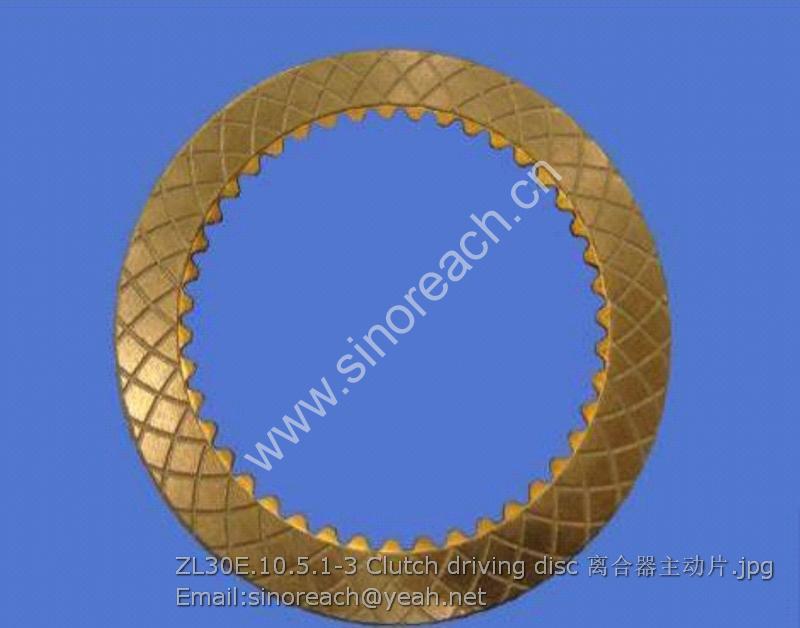

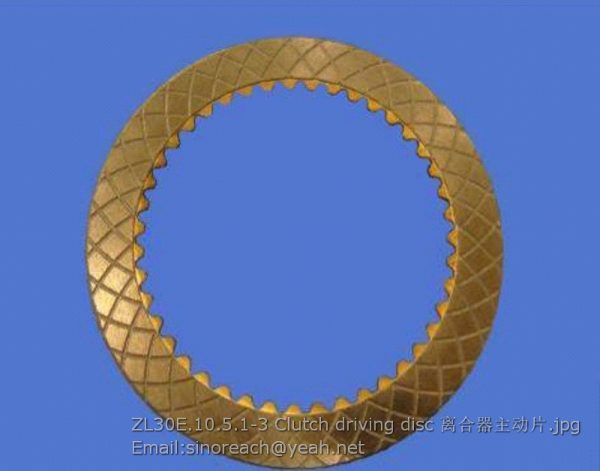

LONKING ZL30E.10.5.1-3 Clutch driving disc

LG50EX.09.02 驻车制动气室 Parking brake air chamber 1 QZ50-3507001
LG50EX.09.04 驻车制动气室固定座 Parking brake air chamber fixing bracket 1 LG50F.09007-008A
GB5783 螺栓 M16×45 Bolt M16×45 2
GB/T97.1 垫圈 10 Washer 10 2
GB/T 93 垫圈 10 Washer 10 2
90C-C/8I-L=1800 手控动阀至驻车制动气室胶管 Hose from manual control brake valve to parking brake air chamber 1
LG856.09.02 手控制动阀 Manual control brake valve 1 QZ50
90C-C/8I-L=1400 手控制动阀至切断气缸胶管 Hose from manual control brake valve to cutoff cylinder 1
LG856.08-001 四回路保护阀出气接头 Four-circuit protecting valve outlet connector 1
JB1002 垫圈 16 Washer 16 1
LG853.08-013 接头 Connector 2
JB1002 垫圈 22 Washer 22 2
LG856.09.01 驻车制动储气筒总成 Parking brake air tank assembly 1
C/8I-L=3400 四回路保护阀至手制动气筒胶管 Hose from protecting valve to parking brake air tank 1
C/8I-L=3200 手制动气筒至手控阀胶管 Hose from parking brake air tank to manual control valve 1
LG50EX.09.03 XZ切断气缸 XZ cutoff cylinder 1
LG50EX.09-001 手控制动阀出气接头 Hand control brake valve air outlet connector 2 LG50F.09002A
LG50EX.09-003 切断气缸进气接头 Cutoff cylinder air inlet connector 2 LG50F.09003A

19 LG50EX.09-002 手控制动阀进气接头 Manual control brake valve air inlet connector 1 LG50F.09001A
20 LG856.09-001 制动气室进气接头 Brake air chamber inlet connector 1
