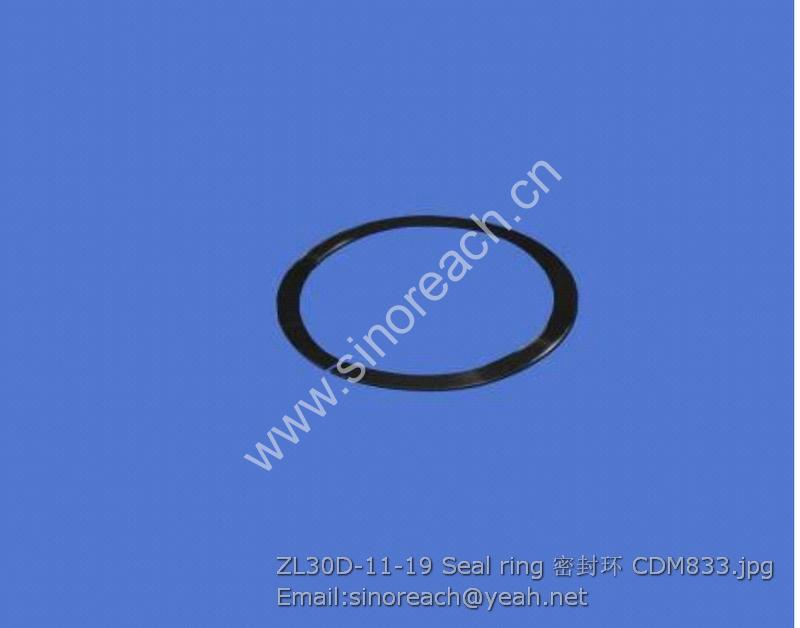

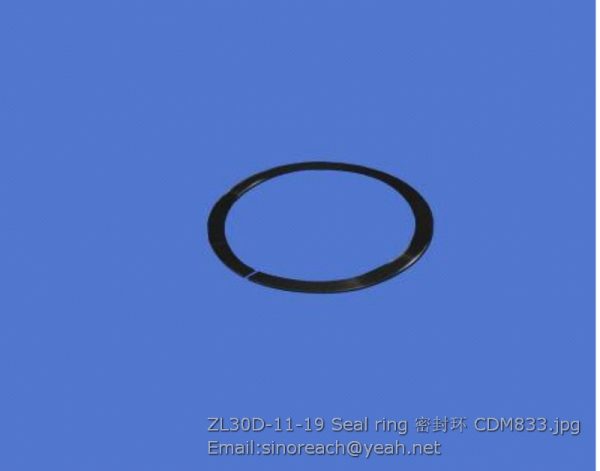

LONKING ZL30D-11-19 Seal ring CDM833

LG50F.08004-005A 后加力泵支座 Rear booster pump bracket
GB/T5783 螺栓 M12×30 Bolt M12×30
GB/T93 垫圈 12 Washer 12
GB/T5783 螺栓 M16×16 Bolt M16×16
GB/T93 垫圈 6 Washer 6
LG50F.08002A 管夹 18 Pipe clip 18
GB/T5783 螺栓 M12×30 Bolt M12×30
GB/T93 垫圈12 Washer 12

27 LG50F.08004-005A 后加力泵支座 Rear booster pump bracket 1 LG855.08.01
28 GB/T5783 螺栓 M12×30 Bolt M12×30 4
29 GB/T93 垫圈 12 Washer 12 4
30 GB/T5783 螺栓 M16×16 Bolt M16×16 4
31 GB/T93 垫圈 6 Washer 6 4
32 LG50F.08002A 管夹 18 Pipe clip 18 2
33 GB/T5783 螺栓 M12×30 Bolt M12×30 2
34 GB/T93 垫圈12 Washer 12 2
8.2 Disc Brake

Fig.29 Disc brake

Fig.29 盘式制动器Disc brake (408100, LG853.04.01.03) Remarks
Item 当前 Current No. Chinese Description English Description Qty 替代Substitute No.
1 408121 螺栓M22 Bolt M22 4
2 GB/T93 垫圈 22 Washer 22 4
3 408105-106 内钳 Inner caliper 1
4 408112 矩形密封圈 Rectangular seal ring 4
5 O-RING GB1235-76 O型圈 Ф20×2.4 O-ring Ф20×2.4 2
6 408113 活塞 Piston 4
7 408110 防尘罩 Dust cover 4
8 403111 卡圈 Snap ring 4
9 408107-108 制动片 Disc brake disc 2 LG853.04.01.03.02
10 408109-109 外钳 Outer caliper 1
11 408103 放气嘴 Air bleed nozzle 2
12 403104 接头 Connector 2
13 408124 垫圈 Washer 2
14 408120 螺栓M20×1.5×56 Bolt M20×1.5×56 4 LG853.04.01-020
15 GB/T93 垫圈20 Washer 20 4
16 408114 螺栓销 Bolt pin 2 LG853.04.01.03-011
17 408101 管接头 Pipe connector 1
18 408115 垫圈 Washer 1
19 GB/T93 垫圈 10 Washer 10 2
20 408102 垫圈 Washer 8
