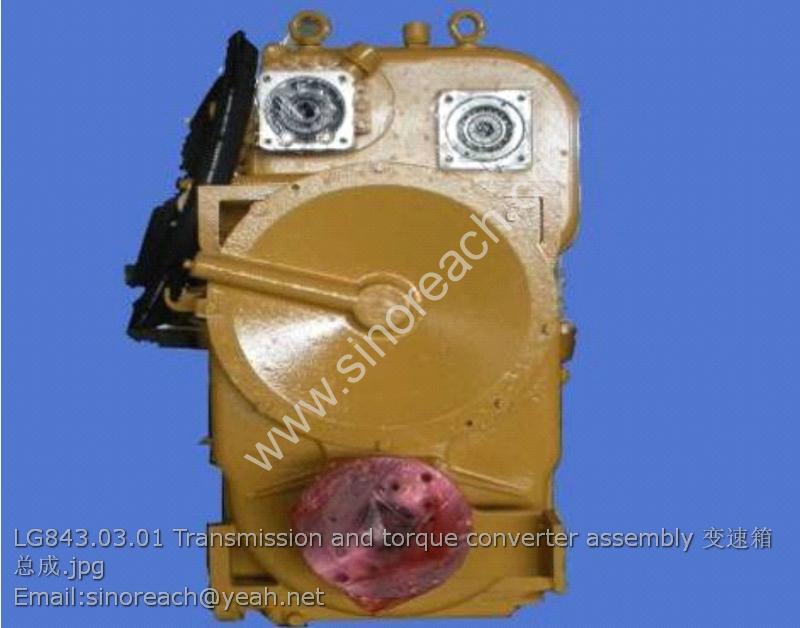

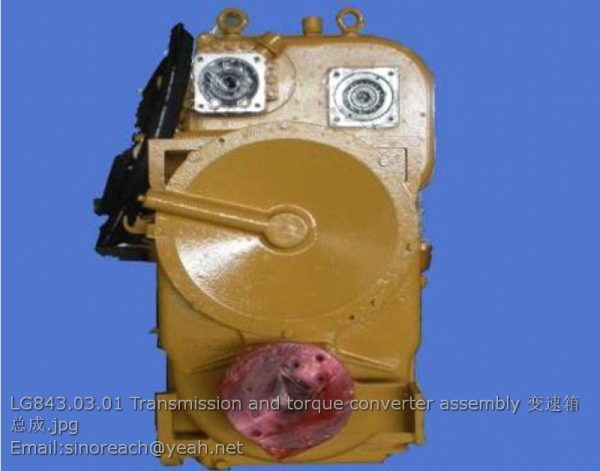

LONKING LG843.03.01 Transmission and torque converter assembly

402223 螺塞 Z3/4″ Plug Z3/4″
402222 导轮座 Idler wheel seat
GB/T1235-76 O型密封圈 Ф135×3.1 O-ring Ф135×3.1
402216A 壳体 Torque converter shell
402215A 衬垫 Pad
402214A 观察盖 Viewer cover
GB/T67 螺钉 M8×18 Screw M8×18
GB/T93 垫圈 8 Washer 8
402221 密封环 Sealing ring
402220 分动齿轮 Transfer Gear
GB/T276 轴承 117（130×85×22） Bearing 117(130×85×22)
GB/T5784 螺钉 M8×35 Screw M8×35
402227 泵轮 Pump wheel
402224 调整垫片 Shims
402218 放松垫片 Lock washer
GB/T6171 螺母 M10×1 Nut M10×1
GB/T93 垫圈 10 Washer 10
402237 双头螺栓 Stud
402210 圆垫板 Round pad
402201 垫片 Gasket
402202 弹性板 δ=1.0 Elastic plateδ=1.0
GB/T93 垫圈 12 Washer 12
GB/T5780 螺栓 M12×30 Bolt M12×30
402211 变矩器垫片 Torque converter pad
402208 弹性销 Elastic pin
GB/T93 垫圈 8 Washer8
GB/T6170 螺母AM8 Nut AM8

402203 罩轮 Housing wheel 1
402236 O型密封圈 O-ring 1
GB/T276 轴承210（90×50×20） Bearing 210(90×50×20) 1
402207 一级涡轮罩 First stage turbine hood 1
402206 一级涡轮壳 First stage turbine housing 1
GB/T869 沉头铆钉 Rivet 12
GB/T276 轴承113（100×65×18） Bearing 113(100×65×18) 1
GB/T893.1 孔用挡圈 50 Hole ring 50 1
402212-13 二级涡轮 Second stage turbine 1
402209 一级涡轮 First stage turbine 1
GB/T894.1 轴用挡圈 80 Shaft retainer 80 1
402217 导轮 Idler wheel 1
402226 压板 Press plate 1
GB/T5780 螺栓 M12×45 Bolt M12×45 12
402229 弹簧 Spring 1 LG853.02.01-007
402204 回油接头 Oil return connector 1 LG853.02.01-014
402232 垫片 Pad 2
402231A 弹簧 Spring 1 LG853.02.01-010
402230A 盖板 Cover board 1 LG853.02.01-009
402233 进口阀杆 Inlet valve stem 2 LG853.02.01-008
402228A 阀盖 Valve cap 1 LG853.02.01-006
GB/T5780 螺栓 M10×28 Bolt M10×28 8
402111A 接头 Connector 2 LG853.02.01-005
402106 铜垫圈 Copper washer 2 LG853.02.01-004
402238 花键垫片 Spline washer 1
402234 出口阀芯 Outlet spool 1 LG853.02.01-015
