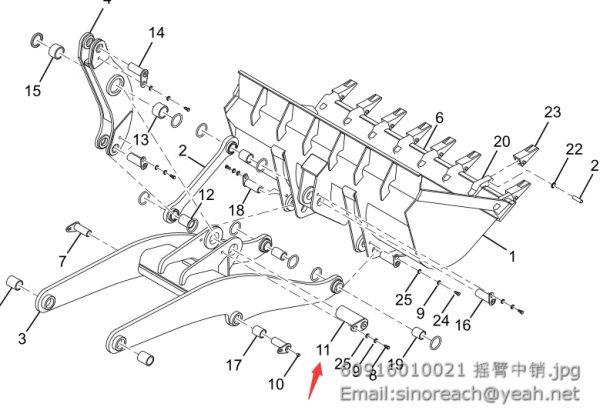

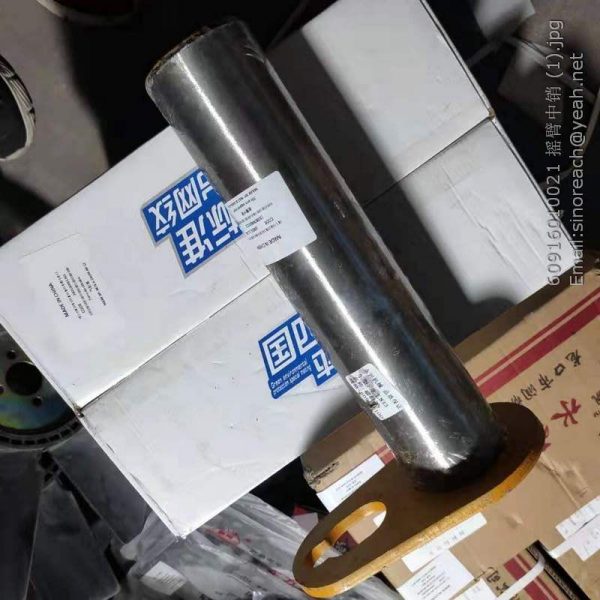

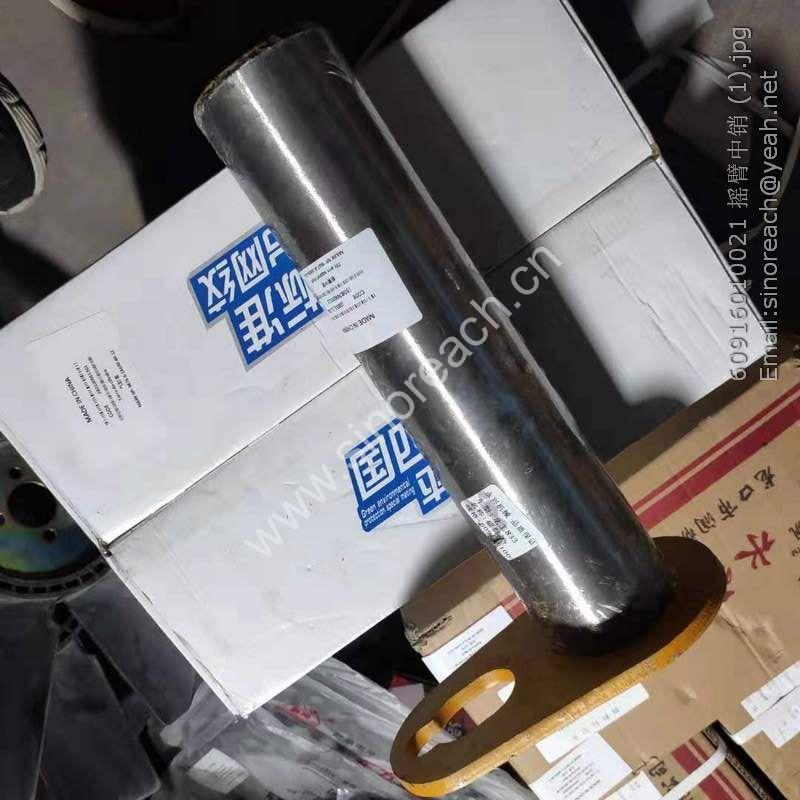

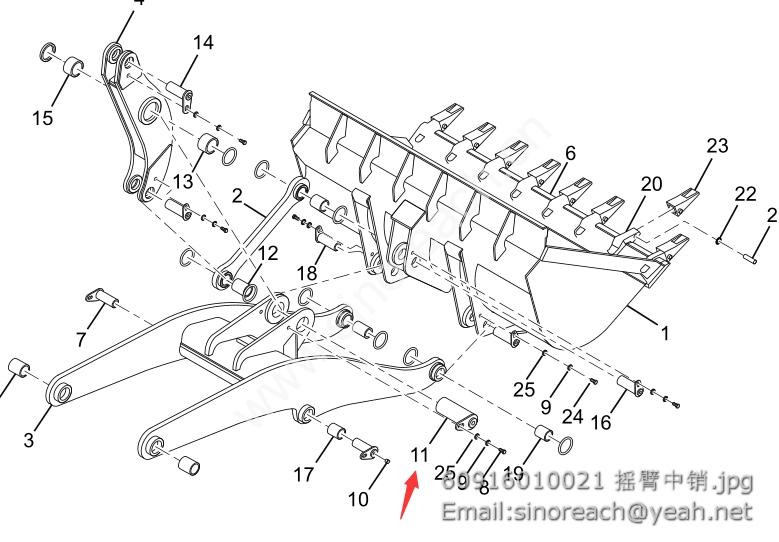

LONKING  60916010021  Tilt arm support shaft   LG833.11.06  30874900313

Categories: , Tag:

Description

LONKING  60916010021  Tilt arm support shaft   LG833.11.06  30874900313

22 H-H/38/42-Ⅱ-L900 双联泵吸油胶管 Duplex pump oil suction hose 1
23 φ38×4-360 后车架回油夹布胶管 Rear frame oil return hose 1
24 JB/T8870-1999 喉箍(φ38～57) Strap(φ38～57) 2
25 LG30F.07Ι.08 后车架进油过渡接头 Rear frame oil-inlet transit connector 1 LG30FK.07010-012
26 LG30F.07Ι-002 管夹 Pipe clip 1 LG30F.07012A
27 H-H/25/28-2S-L880 铰接进油胶管 Articulated oil suction hose 1
28 LG30F.07Ι.09 前车架进油过渡接头体 Front frame oil inlet transit adapter 1 LG30F.07008-008A
29 90F(32)-H/25/28-Ⅱ-L1000 分配阀进油胶管 Distribution valve oil inlet hose 1
30 H-H/19/18-Ⅱ-L892 胶管总成 Hose assembly 1
31 LG853.07.23 多路换向阀 Implement valve 1 DF32.2C
32 GB/T5782 螺栓M12×140 Bolt  M12×140 1
33 GB/T5782 螺栓M12×120 Bolt  M12×120 1
34 LG30F.07Ι.10 动臂缸前腔钢管 Pipe of lift cylinder front chamber 1 307001-001D
35 LG30F.07Ι.11 动臂缸后腔钢管 Pipe of lift cylinder rear chamber 1 307007-008D
36 LG30F.07Ι.18 动臂缸前腔钢管 Pipe of lift cylinder front chamber 1 307001-001D
37 LG30F.07Ι.19 动臂缸后腔钢管 Pipe of lift cylinder rear chamber 1 307007-008D
38 GB/T3452.1-1992 O形圈32×3.1 O-ring 32×3.1 1
39 LG30F.07Ι.12 转斗缸前腔钢管 Pipe of tilt cylinder front chamber 1 307031-031D
40 LG30F.07.02 动臂油缸 Lift cylinder 1 HSGK125/70X775
41 GB1235-76 O形圈50×3.1 O-ring 50×3.1 3
42 LG30F.07Ι.13 分配阀回油钢管 Distribution valve oil return pipe 1 LG30F.07005-006A-1
43 LG30F.07Ι.14 分配阀至动臂油缸前腔钢管 Pipe from distribution valve to lift cylinder front chamber 1 LG30F.07001-002A
44 LG30F.07Ι.15 分配阀至动臂油缸后腔钢管 Pipe from distribution valve to lift cylinder rear chamber 1 LG30F.07003-004A
45 LG30F.07Ι-003 动臂缸进出油管管夹 Lift cylinder oil inlet/outlet pipe clip 2 307040D
46 GB/T5783 螺栓M8×30 Bolt M8×30 2
47 GB/T6170 螺母M8 Nut M8 14
48 GB/T97.1 垫圈8 Washer 8 10
49 GB/T93 垫圈8 Washer 8 10
50 H-H/32/34-Ⅱ-L770 前车架回油胶管 Front frame oil return hose 1
51 LG30F.07Ι-006 管夹 Pipe clip 2 LG30F.07025A
52 GB/T5782 螺栓M8×90 Bolt  M8×90 6
53 LG30F.07Ι.16 液压油箱回油钢管 Hydraulic tank oil return pipe 1 LG30F.07011-011A
54 LG30F.07Ι-004 压板 Press plate 1 407027B
55 LG30F.07Ι.17 双联泵吸油钢管 Duplex pump oil suction pipe 1 LG30FK.07034-037
56 LG30F.07Ι-005 泵吸油管压板 Duplex pump oil suction pipe press plate 1 307026D
57 GB/T5783 螺栓M12×40 Bolt  M12×40 4
58 LG30F.07Ι-007 转斗油缸标示杆 Tilt cylinder indicator lever 1
59 GB/T97.1 垫圈10 Washer 10 2
60 GB/T5783 螺栓M10×20 Bolt  M10×20 2
61 GB/T5782 螺栓 M10×55 Bolt  M10×55 2
