Description

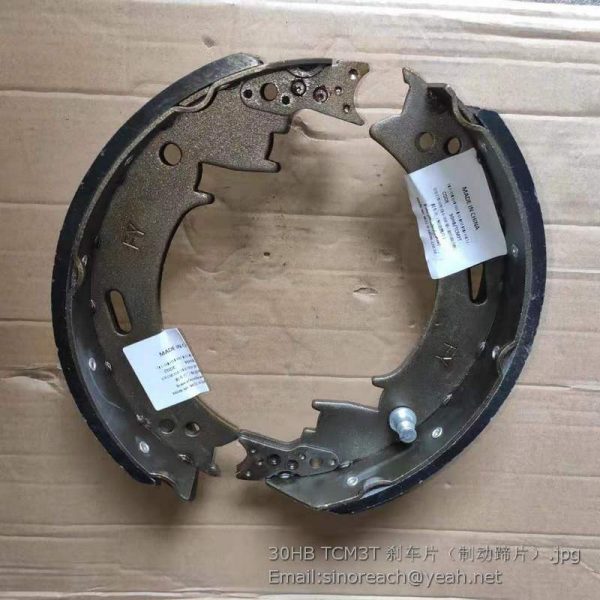

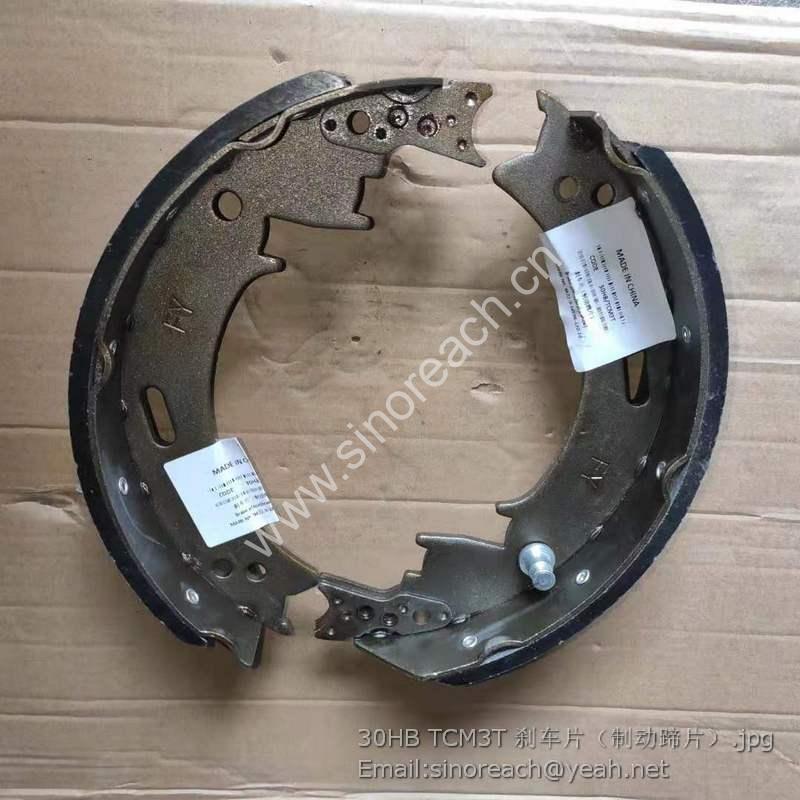

LONKING 30HB/TCM3T Brake piece  LG20DTIII-35DTIII

24 LG853.01.02 变矩器回油接头 Torque converter oil return connector 1
25 612600080024 燃油进油管 Fuel inlet pipe 1
26 LG853.01-002 测压接头 Pressure measuring connector 1 403727
27 GB/T5782 螺栓 M14×65 Bolt M14×65 4
28 GB/T97.1 垫圈 14 Washer 14 4
29 GB/T93 垫圈 14 Washer 14 4
30 GB/T6170 螺母 M14 Nut M14 8
31 GB/T5782 螺栓 M22×55 Bolt M22×55 2
32 GB/T97.1 垫圈 22 Washer 22 2
33 GB/T93 垫圈 22 Washer 22 2
34 LG856.01Ⅰ-002 水箱拉杆 Radiator pull rod 2
35 612600160003 水泵至冷却器水管 Water pipe from pump to cooler 1
36 JB/T8870-1999 喉箍φ44-64 Hoopφ44-64 2
37 LG853.01-007 水箱胶垫 Radiator rubber pad 4

1 LG856.02.01 变矩器总成 Torque converter assembly 1
2 LG853.02-001 双头螺栓 Stud 12
3 GB/T6171 螺母 M10×1 Nut M10×1 12
4 GB/T93 垫圈 10 Washer 10 12
5 LG856.02Ⅰ.02 双变油路总成 Torque converter and transmission oil
circuit assembly 1
6 GB/T93 垫圈 12 Washer 12 12
7 GB/T5782 螺栓 M12×45 Bolt M12×45 12
8 LG50EX.02-001 吸油胶管 Oil suction hose 11 LG853.02.01-001 机芯总成 Core assembly 1 402000-1
2 LG853.02.01-012 衬垫 Gasket 1 402215
3 LG853.02.01-013 观察盖 Observing cover 1 402214A
4 LG853.02.01-002 变矩器壳体 Torque converter body case 1 402216
5 JB/T8547-97 金属密封环 YH×125 Metal seal ring YH×125 1
6 GB/T5782 螺栓 M10×25 Bolt M10×25 9
7 GB/T93 垫圈 10 Washer 10 9
8 LG853.02.01-003 导轮座 Guide wheel bracket 1 402222
9 LG853.02.01-004 铜垫圈 Copper washer 2 402106
10 管接头 Pipe connector 2 402111A
11 LG853.02.01-007 弹簧Ⅰ Spring Ⅰ 1 402229
12 LG853.02.01-008 进口阀芯 Inlet valve core 1 402233
13 LG853.02.01-006 阀盖 Valve cover 1 402228A
14 LG853.02.01-011 螺塞 Z3/4〞 Plug screw Z3/4〞 1 402223
15 GB/T5781 螺栓 M8×20 Bolt M8×20 2
16 GB/T93 垫圈 8 Washer 8 8
17 GB/T5781 螺栓 M8×16 Bolt M8×16 6
18 LG853.02.01-015 出口阀芯 Outlet valve core 1 402234
19 LG853.02.01-010 弹簧Ⅱ Spring Ⅱ 1 402231A
20 LG853.02.01-009 盖板 Cover board 1 402230A
21 LG853.02.01-014 回油接头 Oil return connector 1 402204
