Description

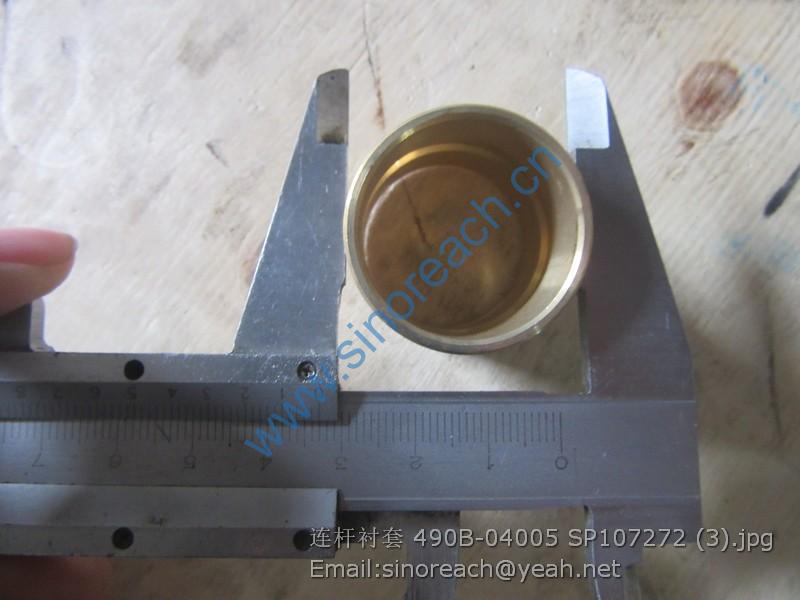

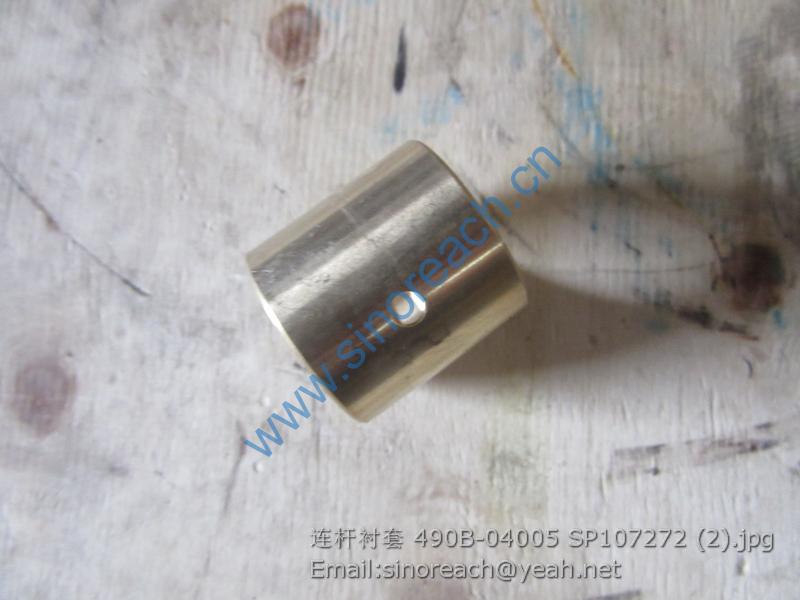

LIUGONG CONNECTING ROD BUSHING SP107272
| SP110112 | 气缸盖
Cylinder head |
1 | 15 | GB/T848-2002 | 小垫圈A级20
Washer 20 |
| 490B-03105 | 冷却水喷孔堵塞
Plug |
4 | 16 | SP107264 | 气门摇臂轴弹簧
Spring |
| SP107255 | 碗形塞片12
Plug 12 |
2 | 17 | SP107265 | 气门摇臂轴
Shaft |
| 07B0070 | 轴用弹性挡圈A型20
Washer 20 |
2 | 18 | SP107247 | 气门锁夹
Split valve retainer |
| SP107267 | 气门摇臂衬套
Valve rocker arm bushing |
8 | 19 | SP107248 | 气门弹簧上座
Valve spring seat,upper |
| SP107262 | 气门间隙调整螺钉
Adjusting screw for valve clearance |
8 | 20 | SP107245 | 气门内弹簧
Valve spring ,inner |
| SP107266 | 气门摇臂
Valve rocker arm |
8 | 21 | 气门外弹簧
Valve spring,outer
|
|
| GB/T6171-2000 | 1型六角螺母M8X1
Nut M8X1
|
8 | 22 | SP107250 | 气门弹簧下座
Low seat,valve spring |
| SP107263 | 气门摇臂轴支座
Seat |
4 | 23 | SP127866 | 气门导管油封
Oil seal |
| GB/T97.1-2002 | 平垫圈10
Washer 10 |
8 | 24 | A490BZL-03102A | 气门导管
Valve guide |
| GB/T93-1987 | 弹簧垫圈10
Spring washer10 |
8 | 25 | GB/T5783-2000 | 螺栓M8X18
Bolt M8X18 |
| GB/T5782-2000 | 螺栓M10X65
Bolt M10X65 |
4 | 26 | SP107252 | 后端盖衬垫
Gasket |
| SP107243 | 气门摇臂轴支座螺栓
Bolt |
4 | 27 | SP107251 | 后端盖
Rear cover |
| GB/T923-1998 | 盖形螺母M8
Nut M8 |
4 | 28 | GB/T93-1987 | 弹簧垫圈8
Spring washer8 |
| GB/T5783-2000 | 螺栓M8X22
Bolt M8X22 |
| SP107236 | 碗形塞片30
Pulg 30 |
| SP107259 | 进气门座
Intake valve seat |
| SP107253 | 进气门
Intake valve |
| SP107254 | 排气门
Exhaust valve |
| SP107260 | 排气门座
Exhaust valve seat |
| SP107249 | 吊耳
Hoisting bracket |
| 490B-03017 | 碗形塞片20
Pulg 20 |
| SP109862 | 喷油器铜套
Copper sleeve |
| MW101194 | 前油封王 60x80x12
Oil seal 60x80x12 |
