Description

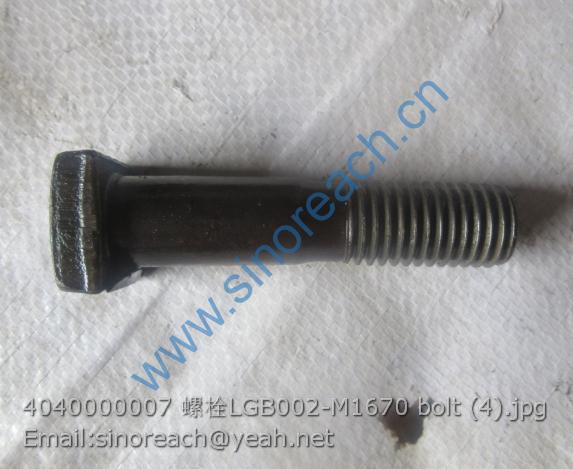

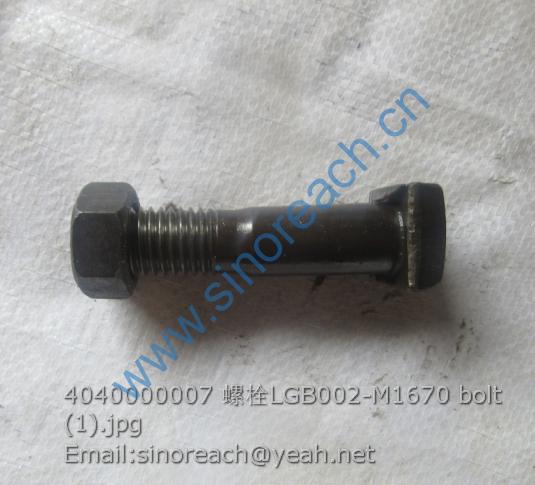

LGB002-M1670 Bolt Nut 4040000007 3050900044 3050900003 for LG936 LG933 LG956 LG955 WHEEL LOADER spare part

1 4120002027005 顺序阀座DXS-18-01 Valve seat Y 2
2 4120002027006 计量阀座DXS-16-04 Valve seat Y 3
3 4120002027007 O型圈18X1.8GB3452.1-82 O-ring Y 3
4 4120002027008 O型圈12.5X1.8GB3452.1-82 O-ring Y 3
5 4120002027009 弹簧DXS-16-01 Spring Y 3
6 4120002027010 阀芯座DXS-16-02 Seat Y 3
7 4120002027011 计量阀芯DXS-16-03 Valve rod Y 3
8 4120002027012 销φ2.5X12GB879-86 Pin Y 4
9 4120002027013 R1/8螺堵DXS-22 Plug Y 4
10 4120002027014 弹簧座DXS-10-05 Spring seat Y 4
11 4120002027015 弹簧DXS-17 Spring Y 4
12 4120002027016 计量弹簧DXS-10-04 Spring Y 4
13 4120002027017 弹簧座DXS-10-06 Spring seat Y 4
14 4120002027018 钢丝挡圈DXS-10-03 Retaining ring Y 4
15 4120002027019 弹性圆柱销φ2X10GB879-86 Pin Y 4
16 4120002027020 O型圈22.4X2.8GB3452.1-82 O-ring Y 4
17 4120002027021 盖DXS-10-02-01 Cover Y 4
18 4120002027022 塑料塞DXS-10-02-02 Plastic plug Y 4
19 4120002027001 C1型密封件10X16X6 C1 10 Sealing ring Y 4
20 4120002027023 密封圈盖DXS-10-07 Sealing cover Y 4
21 4120002027024 弹性挡圈17GB893.1-86 Retaining ring Y 4
22 4120006641001 电磁铁DXS-13d Magnet Y 3
23 4120002027025 压销DXS-05-01 Pin Y 4
24 4120002027026 钢球9/32”GB308-84 Ball Y 4
25 4120000370018 轴套DXS-11 Bushing Y 1
26 4120002027027 螺塞DXS-21 Plug Y 1
27 4120002027028 导向套DXS-19 Guide ring Y 1
28 4120002027029 弹簧DXS-20 Spring Y 1
29 4120002027031 弹簧座DXS-18-03 Spring seat Y 1
30 4120002027032 顺序阀芯DXS-18-02 Valve spindle Y 1

31 4120000370013 阀体DXS-08 Valve body Y 1
32 4120002027034 O型圈16X1.8GB3452.1-82 O-ring Y 2
33 4120002027033 O型圈20X1.8GB3452.1-82 O-ring Y 2
34 4120002027035 O型圈11.8X1.8GB3452.1-82 O-ring Y 1
35 4120002432424 螺塞DXS-18-04 Plug Y 1
36 4120002027002 手柄组件DXS-01 Control kit Y 1
37 4120000370014 橡胶罩DXS-09 Cover Y 1
38 4120000370005 手柄接头DXS-02 Nipple Y 1
39 4120002027036 螺母M12GB6170-86 Nut Y 1
40 4120002027037 小垫圈-20-140HVGB848-85 Washer Y 1
41 4120002027038 铰座DXS-07-01 Seat N 1
42 4120002027048 长销DXS-07-06 Pin Y 1
43 4120002027040 铰接DXS-07-02 Attaching link N 1
44 4120004305001 铰座DXS-07-07 Bracket Y 1
45 4110001321160 螺母GB6170-86 M6 DIN934 8 0637 Nut N 4
46 4120002027042 压销DXS-03-01 Pin N 4
47 4120002027043 挡圈8GB895.1-86 Retaining ring N 4
48 4120002027044 压销座DXS-03-03 Pin N 4
49 4120002027045 压板DXS-03-02 Cover Y 4
50 4120000370009 固定板DXS-04 Plate Y 1
51 4120004305002 安装板DXS-07-03b Fixation plate Y 1
52 4120002027047 短销DXS-07-04 Pin N 2
53 2810000357004 螺母M20-04（GB6172-86） Nut Y 1
54 4110001321157 弹性圆柱销GB879-86 6×30 DIN1481 Spring pin Y 1
55 4120002027049 压杆1DXS-10-01 Plate Y 2
56 4120002027050 压杆2DXS-12-01 Plate Y 2

1 4120002263 动臂油缸HSGF-170*90*767-1427 Lifting cylinder N 2
2 29130012321 左动臂缸小腔钢管 Pipe Y 1
3 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 12
4 4011000473 螺栓GB16674-M10*55EpZn-8.8 Bolt Y 8
5 4011000309 螺栓GB16674-M10*50EpZn-8.8 Bolt Y 8
6 29130010861 动臂联大腔三通钢管 Pipe Y 1
7 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 6
8 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 56
9 29130010891 阀至左动臂缸大腔钢管 Pipe Y 1
10 29130010741 左支架 Bracket Y 1
11 4011000479 螺栓GB16674-M12*30EpZn-8.8 Bolt Y 4
12 29130020951 阀至左动臂缸小腔钢管 Pipe Y 1
13 29130011001 钢管支架 Bracket Y 1
14 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 3
15 29130010981 动臂联小腔三通钢管 Pipe Y 1
16 4041001141 U形螺栓LGB159-03646 U-bolt Y 1
17 4041001142 底板LGB160-3646 Bracket Y 1
18 4013000007 螺母GB6170-M10EpZn-8 Nut Y 14
19 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 14
20 4041001017 U形螺栓LGB159-13040 U-bolt Y 6
21 4041001018 底板LGB160-3040 Bracket Y 6
22 29130010571 动臂缸胶管 Hose assembly Y 4
23 4041000043 分体法兰LGB117-310490 Flange half Y 8
24 29130000111 管夹 Clamp Y 2
25 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 6
26 29130012361 左动臂缸大腔钢管 Pipe Y 1
27 4011000488 螺栓GB16674-M10*16EpZn-8.8 Bolt Y 4
28 29130010371 管夹 Clamp Y 4
29 4041000869 缓冲套LGB123-0740 Rubber sleeve Y 4
30 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2
