Description

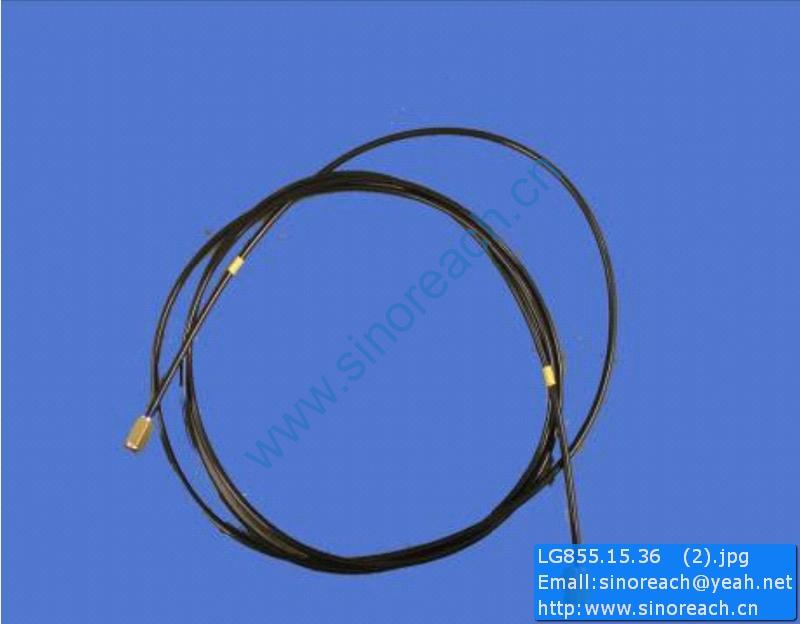

LG855.15.36 Engine oil pressure gauge hose CDM833 CDM835 CDM843 CDM853 CDM855 CDM855 E parts

1 Z50G.34.5 液压油箱 Oil tank 1
2 Z50G.14G.2 油箱回油管 Oil return tube 1
3 Z50E.34N.1 油箱出油管 Outlet oil tube 1
4 Z50G.34-1 Φ64低压胶管 Hose 1
5 Z50G.14-2 Φ51低压胶管(L=370) Hose 1
6 Z50G.34N.2 油泵进油管 Inlet oil tube 1
7 Z50G.34N.3 油泵出油管 Outlet oil tube 1
8 Z50G.14.6 回油管 Oil return tube 1
9 Z50G.14-3 板 Plate 1
10 Z60F.14-3 油管夹 Tube clip 1
11 Z50G.34N.4 胶管接头 Hose joint 1
12 Z50G.14-5 板 Plate 1
13 Z50G.14-6 板 Plate 1
14 Z50G.14-7 油管夹 Tube clip 2
15 Z50G.14-8 油管夹 Tube clip 6
16 Z50G.14-9 板 Hose joint 4
17 Z60F.14-9 套管 Bushing 2
18 Z60F.14-10 套管 Bushing 6
19 Z50G.14-10 板 Plate 1
20 Z50E.34F.3 标示杆 Rod 1
21 Z50G.34.1 动臂油缸 Cylinder 2
22 Z50B.14.23 油管 Oil tube 2
23 Z50G.14.9 支板 Plate 1
24 Z50G.14.10 支板 Plate 1
25 Z50G.14.11 油管 Oil tube 1
26 Z50G.14.12 油管 Oil tube 1
27 Z50B.14-3 板 Plate 2
28 Z50B.14-4 衬垫 Pad 2
29 Z50G.14-11 连接板 Coupling plate 1
30 Z50E.14.13 多路阀进油管 Inlet oil tube 1

Z50G.34N 工作液压系统 Hydraulic System

序号
No. 零件代号
Part No. 名 称
Part Name 数量
Q’ty
31 Z50G.34.2 油管 Oil tube 1
32 Z50G.34.3 油管 Oil tube 1
33 Z50G.14.16 油管 Oil tube 2
34 Z50G.14G.4 接头体 Joint 2
35 Z50G.14-12 O形圈 O-ring 4
36 Z50G.34.6 油管 Oil tube 1
37 Z50G.14T.1 转斗油缸 Cylinder 1
38 Z50G.14G-3 板 Plate 2
39 Z50E.34.4 油管 Oil tube 1
40 Z50G.14.21 油管 Oil tube 1
41 Z50G.14.22 油管 Oil tube 1
42 Z50G.14-13 接头体 Joint 2
43 Z50G.14.23 多路阀回油管 Oil return tube 1
44 Z30.4M-2 接头 Joint 6
45 Z50G.34N.5 油管 Oil tube 1
46 Z50G.14T.5 软管总成 Hose assy’s 1
47 Z50G.14T.6 软管总成 Hose assy’s 1
