Description

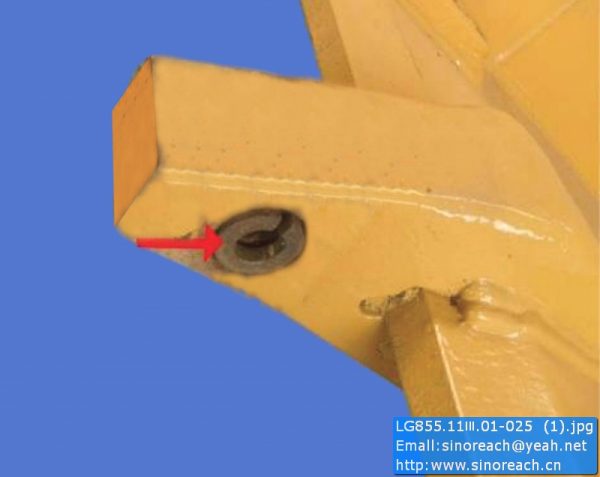

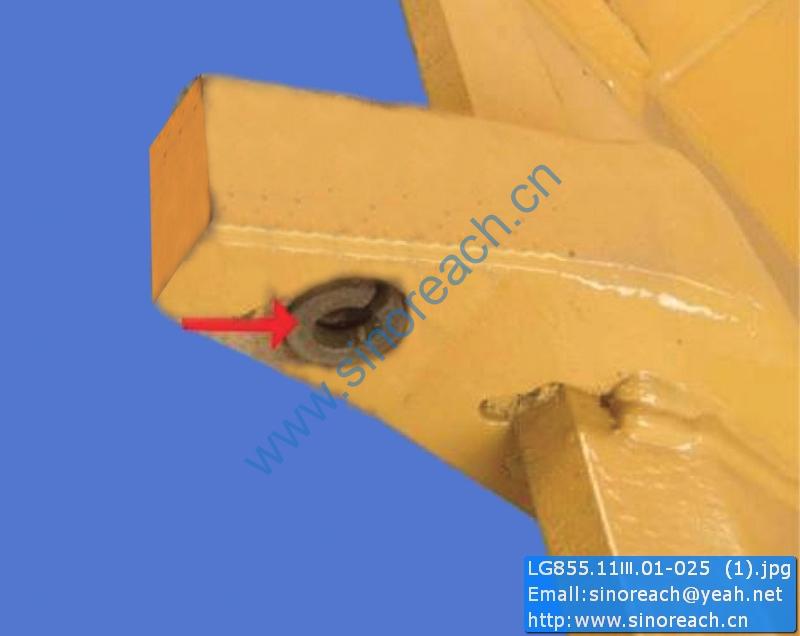

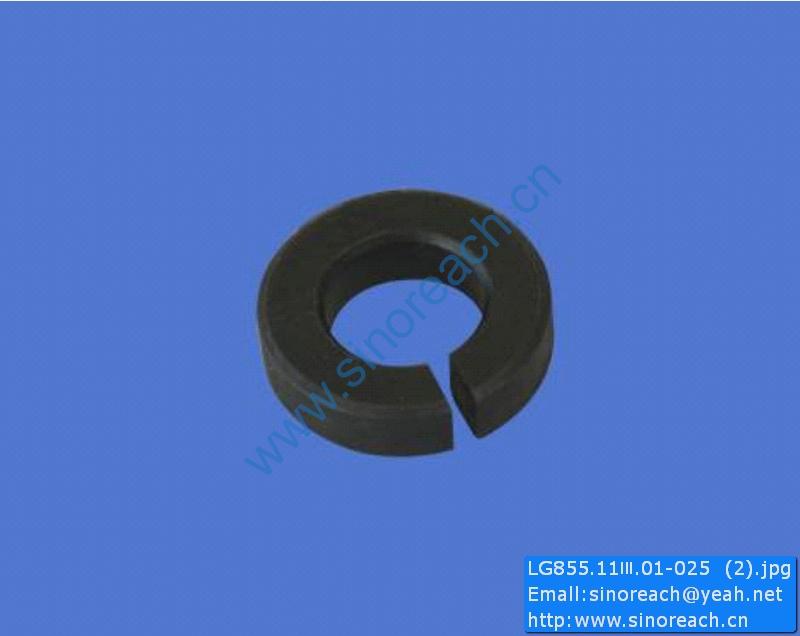

LG855.11Ⅲ.01-025 Retainer ring CDM833 CDM835 CDM843 CDM855 CDM856 parts

W-19-00031 转向器阀块总成 Steering gear 1
B-G057830-00006 螺栓M10x25ZnD Bolt 6
B-G000930-00001 垫圈10 Washer 13
W-16-00128 软管总成 Hose ass’y 4
B-G057830-00003 螺栓M10x20ZnD Bolt 6
B-G00097B-00002 垫圈10 Washer 8
B-Q020120-00002 U形管夹A22 U-Clip 6
B-G061760-00001 螺母M10x1.25ZnD Nut 12
B-Q020490-00001 垫圈10 Washer 14
B-J010000-00002 螺塞M14x1.5 Plug 2
B-J010020-00003 垫圈14 Washer 2
W-16-00129 软管总成 Hose ass’y 1
W-16-00130 软管总成 Hose ass’y 1
W-16-00321 软管总成 Hose ass’y 1
B-J010020-00002 垫圈12 Washer 3
W-16-00132 软管总成 Hose ass’y 1
W-16-00133 软管总成 Hose ass’y 1
B-J010020-00006 垫圈20 Washer 4
W-16-00704 软管总成 Hose ass’y 1
B-Q020710-00006 O形圈11X1.9 O-Ring 2
B-J088700-00018 喉箍d70 Clamp 4
B-J010020-00009 垫圈27 Washer 2
B-G057830-00145 螺栓M8x30-10.9ZnD Bolt 16
B-Q020140-00001 分离式法兰Aф32.6/35 Parting flange 8
B-Q020710-00049 O形圈31×3.5 O-Ring 4
B-G057830-00010 螺栓M10x30ZnD Bolt 4
B-Q020710-00065 O形圈41×3.5 O-Ring 1
B-Q020710-00050 O形圈32×3.1 O-Ring 4
B-Q020750-00062 胶管接头25I-1800 Hose joint 1

Z50G.10J 转向系统 Steering System

序号
Index 零 件 代 号
Part No. 名 称
Description 数量
Q’ty
B-Q020750-00073 胶管接头25I-3500 Hose joint 1
B-G057820-00054 螺栓M12x80-10.9ZnD Bolt 4
B-G000930-00003 垫圈12 Washer 4
B-Q020710-00077 O形圈54×3.5 O-Ring 1
B-Q020710-00039 O形圈24×2.4 O-Ring 1
B-Q020710-00046 O形圈30×3.1 O-Ring 1
W-07-00131 优先阀 Priority valve 1
B-G057820-00167 螺栓M8x70ZnD Bolt 2
B-G000930-00017 垫圈8 Washer 18
B-Q020490-00023 垫圈8 Washer 2
W-01-00102 齿轮泵 Gear Pump 1
B-G008980-00014 螺柱M12x35-10.9ZnD Bolt 4
B-G061700-00007 螺母M12ZnD Nut 4
B-G00097B-00004 垫圈12ZnD Washer 4
B-J010020-00007 垫圈22 Washer 1

W-19-00001
B-G061710-00010 方向盘
螺母M16X1.5ZnD Steering
Nut 1
1
