Description

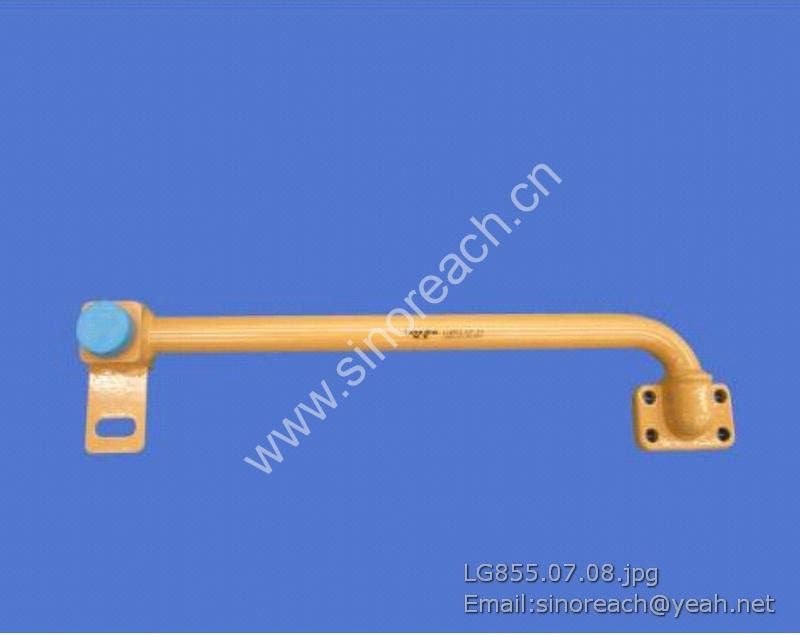

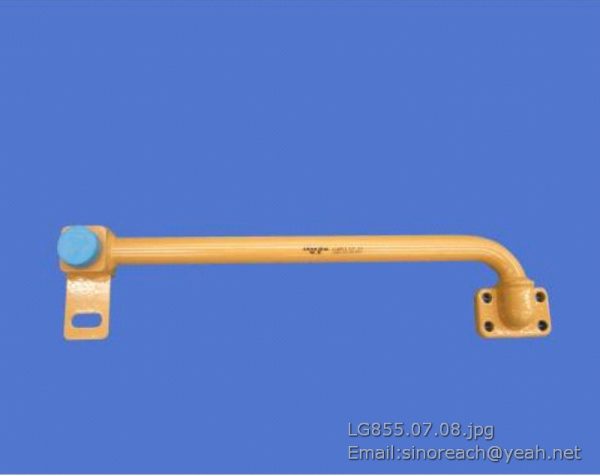

LG855.07.08 Lift cylinder big chamber pipe (left) for LONKING

前车架总成 Front frame assembly 1
后车架总成 Rear frame assembly 1
GB/T5782 螺栓M12×110 Bolt M12×110 8 GB/T297-1994
GB/T93 垫圈12 Washer 12 22 LG853.10-008
GB/T6170 螺母M12 Nut M12 8 LG853.10-007
GB297-84 7515E 轴承32215 Bearing 32215 4
510014C 端盖 End cover 1
510012C 铰接销 Hitch pin 2
GB/T5783 螺栓M20×35 Bolt M20×35 2
GB/T93 垫圈20 Washer 20 2
510011C 压板 Press plate 2 LG853.10-006
GB/T13871-1992 FB形油封75×100×12 FB-type oil seal75×100×12 2
510013C 上轴承盖 Upper bearing cover 2 LG853.10-005
510015C 下轴承盖 Lower bearing cover 2 LG853.10-004
510018C 调整垫 Shims 2 LG853.10-003
LG50F.10020A 上轴套 Upper shaft sleeve 1 LG853.10-001
510017C 下轴套 Lower shaft sleeve 1 LG853.10-002
GB/T13871-1992 FB形油封85×110×12 FB-type oil seal 85×110×12 2
GB/T5783 螺栓M12×35 Bolt M12×35 14
LG855.10-006 调整垫圈 Spacer 2
LG853.10-022 下端盖 Lower end cover 1

LG50EX.10.01 前车架 Front frame 1
GB/T5783 螺栓M10×20 Bolt M10×20 4
GB/T93 垫圈10 Washer 10 4
LG855.10001A 盖板 Cover plate 1 LG855.10-001
LG50F.10002-003A 翻斗缸后销轴焊合 Rear pin weldment of tilt cylinder 1 LG855.10.04
GB/T1152 油杯M10×1 Oil cup M10×1 13 JB/T7940.1-1995
GB/T5783 螺栓M20×35 Bolt M20×35 5
GB/T93 垫圈20 Washer 20 5
GB/T97.1 垫圈20 Washer 20 5
LG50F.10005-005A 动臂上销轴焊合 Upper pin weldment of lift arm 2 LG855.10.05
LG50F.10007-008A 动臂缸后销轴焊合 Rear pin weldment of lift cylinder 2 LG855.10.06
LG50F.10015-016A 前转向销轴焊合 Front turn pin weldment 2 LG855.10.11
LG50F.10017A 转向缸前垫套 Front bush of steering cylinder 2 LG855.10-005
LG50F.10018-018A 右前转向销注油管 Right front turn pin oil filling pipe 1 LG855.10.12
LG855.10.13 左前转向销注油管 Left front turn pin oil filling pipe 1
