Description

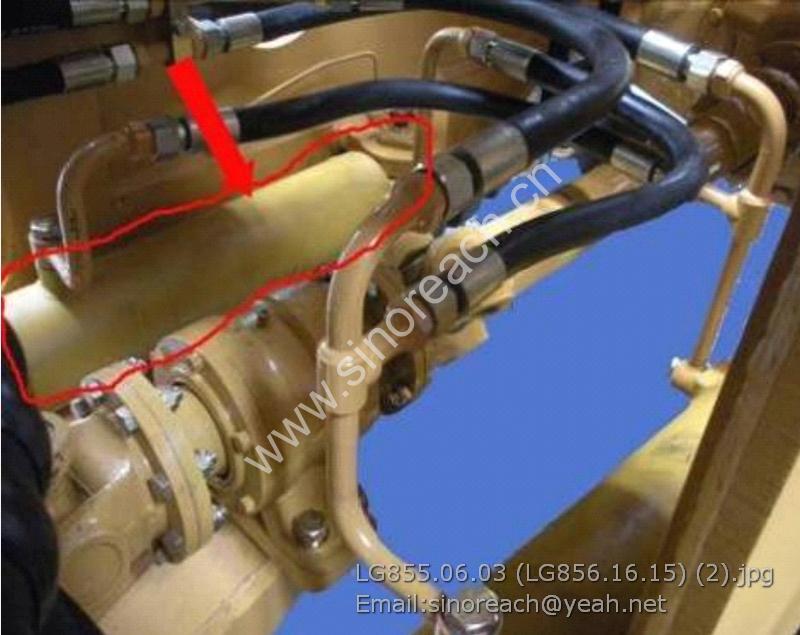

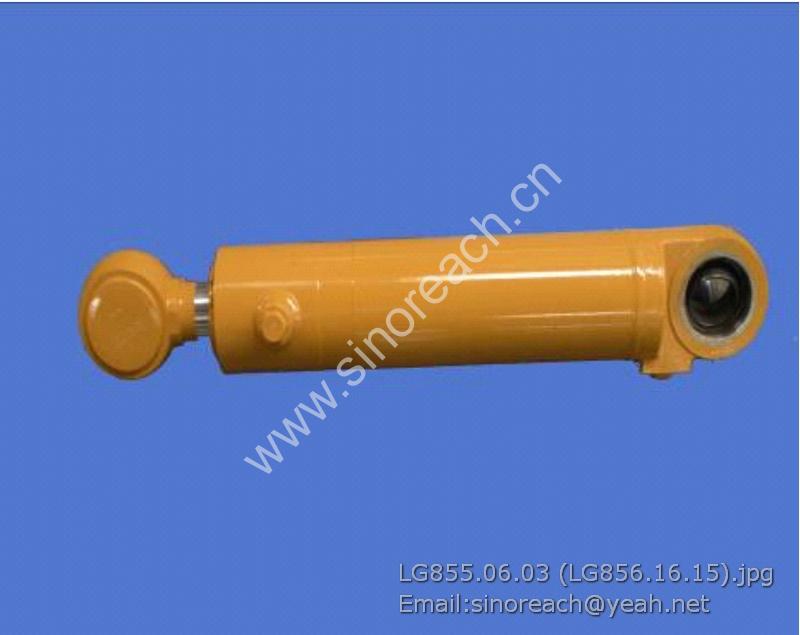

LG855.06.03 LG856.16.15 Steering cylinder(left) for LONKING PART

L5063G-03 缸体 Cylinder body
GB91-86 开口销Ф63×60 Cotter pin Ф63×60
L5063-01 槽形螺母 Castle nut
ZL50D.29-8 支承环 Supporting ring
HJD100 格来圈 Glyd Ring
L5063-02 活塞 Piston
GB/T1235-76 O型圈Ф40×3.1 O-ring Ф40×3.1
GB/T893.1-86 弹性挡圈 75 Elastic collar Ф75
GB/T9163-90 关节轴承 GE50ES Joint bearing GE50ES
L5063-05 活塞杆 Piston rod
AY055Y P5008 防尘圈 Dust ring
GB/T894.1-86 挡圈 Spacer
YJZ12-06 卡键套 Retainer ring
YZJ12-05 卡键 Retainer
B4 055C P5008 Y型密封圈 Y-RING
GSJQ550 斯特封 Step seal
L5063-04 导向套 Guide sleeve
GB1235-76 O型圈 100×5.7 O-ring Ф100×5.7

LG50F.07021A 铲斗放平标示杆 Bucket leveling ruler 1 LG853.07.07
LG50F.07100A 转斗油缸 Tilt cylinder 1 LG855.07.01
GB/T5782 螺栓 M10×70 Bolt M10×70 24
GB/T93 垫圈 10 Washer 10 80
LG50F.07001-002A 转斗油缸前腔钢管 Front chamber tube of tilt cylinder 1 LG855.07.03
GB1235-76 O形圈Ф38×3.5 O-ring Ф38×3.5 6
JB/ZQ4428-86 胶管总成32/34-Ⅲ-L1152 Hose assembly 32/34-Ⅲ-L1152 3
LG50F.07003-003A 转斗油缸后腔钢管 Rear chamber tube of tilt cylinder 1 LG855.07.04
LG50F.07005-005A 动臂油缸后腔钢管 Rear chamber tube of lift cylinder 2 LG855.07.07（08）
38/42-Ⅰ-L540 分配阀回油胶管 51×550 Distribution valve oil return hose (Ф51×550) 1
管夹 (Ф51～70) Pipe clip (Ф51～70) 2
LG50F.07031A 后车架回油过渡接头压板 Front/rear frame oil return transit connector retainer 2 LG853.07-004
GB/T5782-86 螺栓 M10×50 Bolt M10×50 12
LG50F.07032-033A 前车架回油过渡接头 Front frame oil return transit connector 1 LG855.07.09
38B-Ⅱ-L1152 铰接回油胶管 Articulated oil return hose 1
CBGJ3100/1010-XF 工作/先导双联泵 Implement/pilot duplex pump 1 LG50EX.07.03
GB898-86 双头螺柱 AM12×40 Stud AM12×40 4
GB/T6170-86 螺母 M12 Nut M12 7
GB/T93-87 垫圈 12 Washer 12 11
吸油胶管(φ51×520) Suction hose(Ф51×520) 1
LG50F.06012A 压板 Press plate 7 LG853.07-007
GB/T5783-86 螺栓 M10×42 Bolt M10×42 36
45F⊥90F/25-2S-L500 工作泵出油胶管 Implement pump outlet hose 1
LG50F.07017-018A 工作泵出油钢管 Implement pump outlet tube 1 LG855.07.10
GB1235-76 O形圈Ф45×3.5 O-ring Ф45×3.5 7
LG50F.07034-034A 后车架回油过渡接头 Rear frame oil return transit connector 1 LG855.07.11

LG50F.07035A 前(后)车架进油过渡接头压板 Front/rear frame oil inlet transit adaptor press plate 2 LG853.07-002
32B-4S-L1260 铰接进油胶管 Articulation oil inlet hose 1
38/42-Ⅰ-L575 回油胶管 Oil return hose 1
LG50F.07036-036B 前车架进油过渡接头 Front frame oil inlet transit connector 1 LG50EX.07.05
90B-B/25-2S-L1500 动臂缸胶管 Lift cylinder hose 4
LG50F.07023A 管夹 Pipe clip 8 LG855.07-001
GB/T5783-86 螺栓 M8×25 Bolt M8×25 8
GB/T93-87 垫圈 8 Washer 8 10
GB/T6170-86 螺母 M8 Nut M8 8
GB/T5782-86 螺栓 12×180 Bolt 12×180 3
LG50F.07010-011A 分配阀动臂联后腔钢管（一） Rear chamber tube (I) of distribution valve lift chamber 1 LG50EX.07.06
LG50F.07006-008A 分配阀动臂联前腔钢管（一） Front chamber tube (I) of distribution valve lift chamber 1 LG50EX.07.07
LG50F.07016A 压板 Press plate 1 LG50EX.07-001
GB5783-86 螺栓 M12×45 Bolt M12×45 8
LG50E.07014-014A 分配阀进油胶管 Distribution valve inlet hose 1
GB1235-76 O形圈 Ф50×3.1 O-ring Ф50×3.1 2
LG50F.07012-012A 分配阀动臂联后腔钢管（二） Rear chamber tube (Ⅱ) of distribution valve lift chamber 1 LG50EX.07.08
LG50F.07009-009A 分配阀动臂联前腔钢管（二） Front chamber tube (Ⅱ) of distribution valve lift chamber 1 LG50EX.07.09
LG50F.07004-004A 动臂油缸前腔钢管 Front chamber tube of lift cylinder 2 LG855.07.05（06）
LG50F.07022A 管夹 Pipe clip 1
GB/T5782 螺栓M8×55 Bolt M8×55 2
LG50F.07200A 动臂油缸 Lift cylinder 2 LG855.07I.02
LG50F.07024A 管夹 Pipe clip 2 LG50EX.07-002
GB/T6170 螺母 M10 Nut M10 2
LG50F.07013-013A 分配阀转斗联钢管 Distribution valve tilt channel tube 2 LG855.07.19
LG50F.07015-015A 分配阀回油钢管 Distribution valve oil return tube 1 LG50EX.07.10
