Description

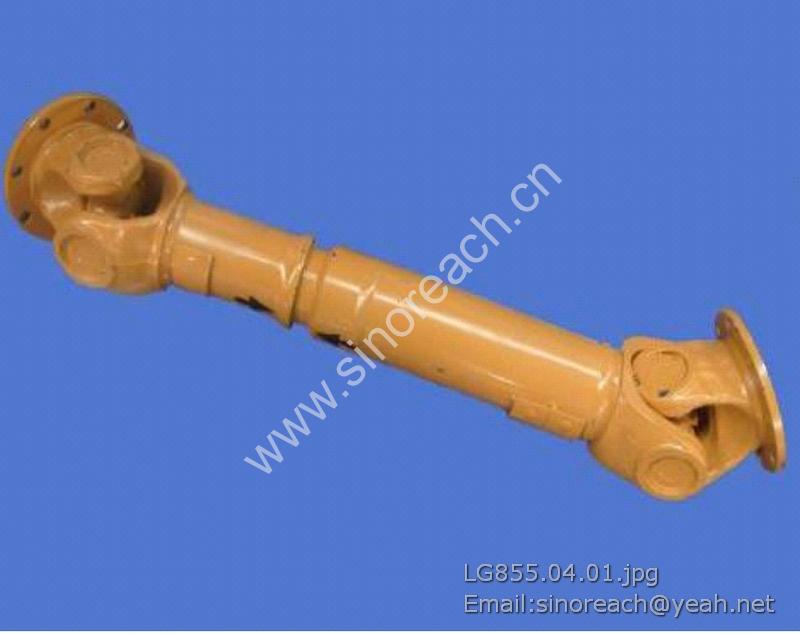

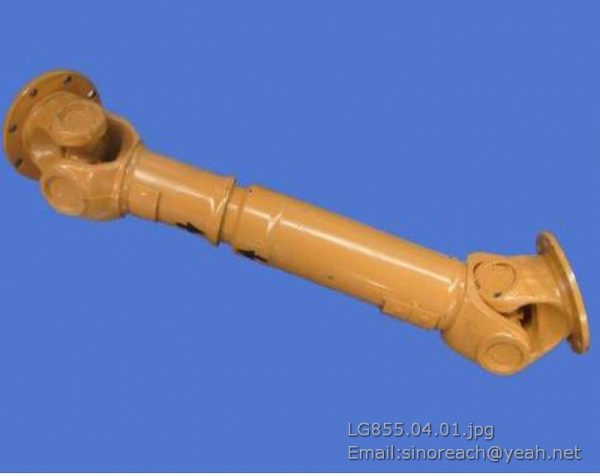

LG855.04.01 Front drive shaft assembly for LONKING part

30612000073 LG6230.12.05A 底封板1 BOTTOM COVER PLATE 1 1
2 30612102107 LG6235.12-02 底封板9 BOTTOM COVER PLATE 9 1
3 30612100403 LG6230.12-24 底封板2 BOTTOM COVER PLATE 2 1
4 30612100404 LG6230.12-25 底封板3 BOTTOM COVER PLATE 3 1
5 30612101198 LG6225L.12-01 底封板4 BOTTOM COVER PLATE 4 1
6 30612100892 LG6235.12-01 底封板8 BOTTOM COVER PLATE 8 1
7 30612100406 LG6230.12-27 底封板5 BOTTOM COVER PLATE 5 1
8 30612101199 LG6225L.12-02 底封板6 BOTTOM COVER PLATE 6 1
9 30612101604 LG6235E.12-01 底封板7 BOTTOM COVER PLATE 7 1
10 51204101122 GB/T5783 螺栓 M10×25 BOLT M10×25 66
11 51401100122 GB/T93 垫圈10 WASHER 10 66
12 51420100122 GB/T96.1 垫圈10 WASHER 10 62
13 51421100121 GB/T97.1 垫圈10 WASHER 10 4

1 30615000028 LG6230.15.01 动臂 BOOM 1
2 30612000144 LG6230.12.02 动臂后端销轴总成Φ90 REAR PIN ASS’Y, BOOM Φ90 1
3 30612000143 LG6230.12.04 动臂油缸销轴总成Φ80 CYLINDER PIN ASS’Y, BOOM 2
Φ80
4 30615100256 LG6230.15-04 动臂中部销轴总成 MIDDLE PIN ASS’Y, BOOM 1
5 30615000071 LG6230.15.08 动臂前端销轴总成 FRONT PIN ASS’Y, BOOM 1
6 30615000012 LG6230.15.09 斗杆油缸销轴总成 CYLINDER PIN ASS’Y, ARM 1
7 30615000012 LG6230.15-07 隔套 SLEEVE 2
8 51203133121 GB/T5782 螺栓 M16×150 BOLT M16×150 2
9 51307001322 GB/T6170 螺母 M16 NUT M16 4
10 60980000065 VAW 09001 防尘圈90×105×6 DUST SEAL 90×105×6 2
11 30615100171 LG6230.15-03 调整垫圈 ADJUST SHIM 2组
12 30615100618 LG6230.15-05 调整垫圈 ADJUST SHIM 2组
13 30615100176 LG6230.15-06 调整垫圈 ADJUST SHIM 2组
14 30615100617 LG6230.15-09 调整垫圈 ADJUST SHIM 2组
15 30612100397 LG6230.12-01 一型锁板 1-TYPE LOCK PLATE 1
16 30612101184 LG6225L.12-03 垫板 SHIM PLATE 3
17 51204133722 GB/T5783 螺栓 M16×40 BOLT M16×40 3
18 51401130122 GB/T93 弹簧垫圈16 SPRING WASHER 16 6
19 30615100259 LG6230.15-10 灯架 LAMP BRACKET 2
20 51204111122 GB/T5783 螺栓 M12×25 BOLT M12×25 4
21 51401110122 GB/T93 弹簧垫圈12 SPRING WASHER 12 4
22 30615100171 LG6230.15-03 调整垫圈 ADJUST SHIM 2组
23 30615100140 LG6230.15-02 压板 PRESS PLATE 1
24 30615100260 LG6230.15-11 钢套 STEEL SLEEVE 2
25 51204132522 GB/T5783 螺栓 M16×35 BOLT M16×35 4
26 30616100318 LG6360.16-05 堵头 PLUG 2
