Description

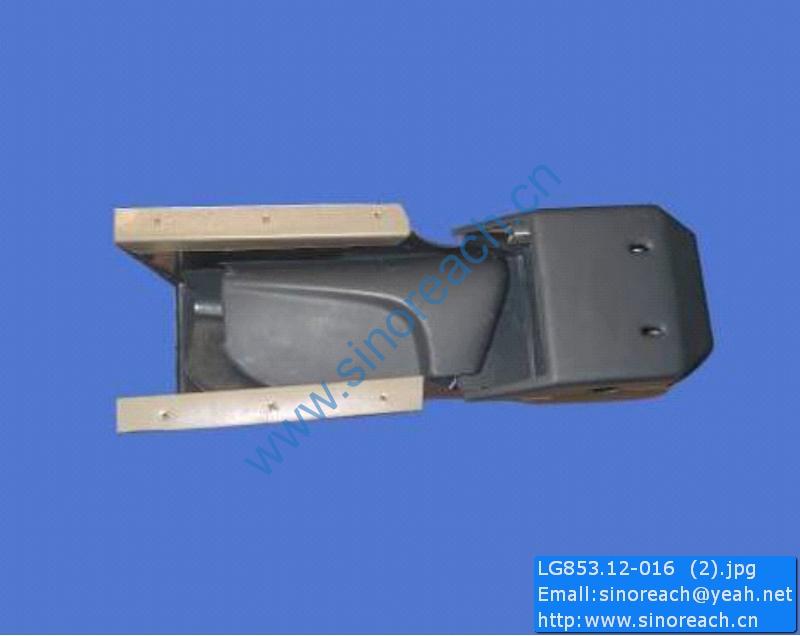

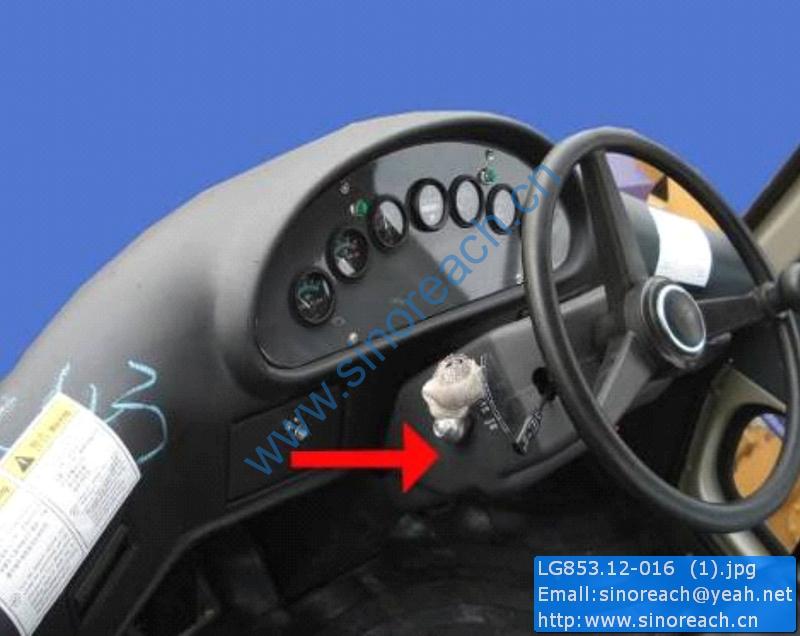

LG853.12-016 Steering gear cover assembly CDM843 CDM853 CDM855 CDM855E parts
1 Z50H.1A-1 水箱减振垫 Cushion
2 B-G057830-00157 螺栓M14×55ZnD Blot
3 B-G00097B-00006 垫圈14ZnD Washer
4 B-G000930-00005 垫圈14 Washer
5 B-G061700-00010 螺母M14ZnD Nut
6 Z50B.1-2 水箱撑杆 Support
7 B-G057830-00057 螺栓M14×35ZnD Blot
8 Z60H.1.3 水箱机油散热器组件 Radiator ass’y
9 Z60H.1-3 柴油机出水管 Hose
10 Z50H.1A-10 柴油机进水接管 Hose
11 B-J088700-00018 喉箍d70 Clamp
12 Z50H.1A-21 夹布输油胶管φ10×1000 Hose
13 B-J088700-00007 喉箍d16 Clamp
14 Z60H.1.4 消音器支架 Support
15 Z50H.1A.2 排气接管支架 Support
16 Z60H.1-4 排气接管 Hose
17 B-G000930-00001 垫圈10 Washer
18 B-G00097B-00002 垫圈10ZnD Washer
19 B-G057830-00006 螺栓M10×25ZnD Blot
20 Z60H.1.5 排气垫 Pad
21 B-G057830-00015 螺栓M10×40ZnD Blot
22 B-G061700-00003 螺母M10ZnD Nut
23 W-02-00058 消声器(带排气尾管) Noise suppresser
24 Z50H.1A-5 空滤器卡箍 Clamp
25 Z50H.1A.4 空滤器接管 Hose
26 B-G057830-00018 螺栓M10×50ZnD Blot
27 Z60H.1.7 空滤器卡箍 Clamp
28 Z60H.1-9 垫 Pad
29 W-02-00045 空滤器总成|AH19227-SD Air cleaner ass’y
30 W-02-00125 柴油机6CTAA8.3-C240 Engine
31 Z60H.1.6 空滤器支架 Support
32 Z50H.1A.6 支架 Support
33 Z50B.1C.15 油门软轴 Flexible shaft
34 B-G057830-00132 螺栓M6×25ZnD Blot
35 B-G061700-00034 螺母M6ZnD Nut
36 B-G00097B-00021 垫圈6ZnD Washer
37 B-G000930-00015 垫圈6 Washer
38 Z50H.1A-6 油门手柄 Handle
39 Z30.1A.1 球铰接头 Joint
40 Z50H.1A.8 油门软轴支架 Support
41 W-02-00068 油门踏板（行程75） Acceletor pedal
42 B-G057830-00083 螺栓M16×65-10.9ZnD Blot
43 B-G00097B-00008 垫圈16ZnD Washer
44 B-G000930-00006 垫圈16 Washer
45 B-G061700-00014 螺母M16ZnD Nut
46 Z50H.1A.9 支板 Plate
47 B-G057850-00036 螺栓M22×1.5×140-10.9ZnD Blot
48 B-G000930-00009 垫圈22 Washer
49 Z30.1-10 垫圈 Washer
50 Z30.1.2 缓冲橡胶垫 Cushion
51 B-G061710-00018 螺母M22×1.5ZnD Nut
52 Z50H.1A-16 输油泵进油接头 Joint
53 W-02-00038 进油软管|4RCG12350700 Hose
54 B-J009990-00001 铰接螺栓M14×1.5×32 Blot 2
55 B-J010020-00003 垫圈14 Washer 4
56 Z60H.1-15 进气胶管 Hose 1
57 Z50H.1A-15 进气胶管 Hose 1
58 Z60H.1-14 进气接管 Hose 1
59 W-02-00130 预紧力弹簧卡箍115 Clamp 2
60 W-02-00131 预紧力弹簧卡箍125 Clamp 2
61 Z50H.1A-7 油底壳放油接头 Joint 1
62 Z50B.1-15 夹布输油胶管 Hose 1
63 B-J009990-00005 铰接螺栓M18×1.5×38 Blot 1
64 B-J010020-00005 垫圈18 Washer 2
65 B-J088700-00014 喉箍d32 Clamp 2
66 Z50H.1A-20 柴油机进水管 Hose 1
67 Z50H.1A-19 柴油机进水接管 Hose 1
68 Z50B.1.11 接管 Hose 1
69 Z50B.1-12 螺塞 Plug 1
70 B-G057830-00003 螺栓M10×20ZnD Blot 2
71 柴油机附件 Engine accessory 1
72 Z60H.1-8 柴油机回油管φ8×1100 Hose 1
73 Z60H.1-11 飞轮连接壳体 Connecting 1
74 Z60H.1-10 螺栓 Blot 8
75 Z60H.1-12 飞轮壳连接壳体 Connecting 1
76 B-G057830-00104 螺栓M20×80ZnD Blot 2
77 B-Q020490-00011 垫圈20 Washer 2
78 Z60H.1-13 连接板 Plate 2
Z60H.1 发动机系统㈠ Engine System ⑴
序号
No. 零件代号
Part No. 零 件 名 称
Part Name 数量
Q’ty
79 Z60H.1-5 垫 Washer 4
80 Z60H.1-6 垫 Washer 4
81 Z60H.1-7 垫 Washer 6
82 B-G000930-00008 垫圈20 Washer 2
83 B-G061700-00018 螺母M20ZnD Nut 2
84 Z30.1-10 垫圈 Washer 8
85 Z30.1.2 缓冲橡胶垫 Cushion 4
86 B-G057830-00075 螺栓M16×45-10.9ZnD Blot 8
87 Z50H.1A.3 柴油机后支座 Support 2
88 B-G057830-00130 螺栓M6×16ZnD Blot 2
