Description

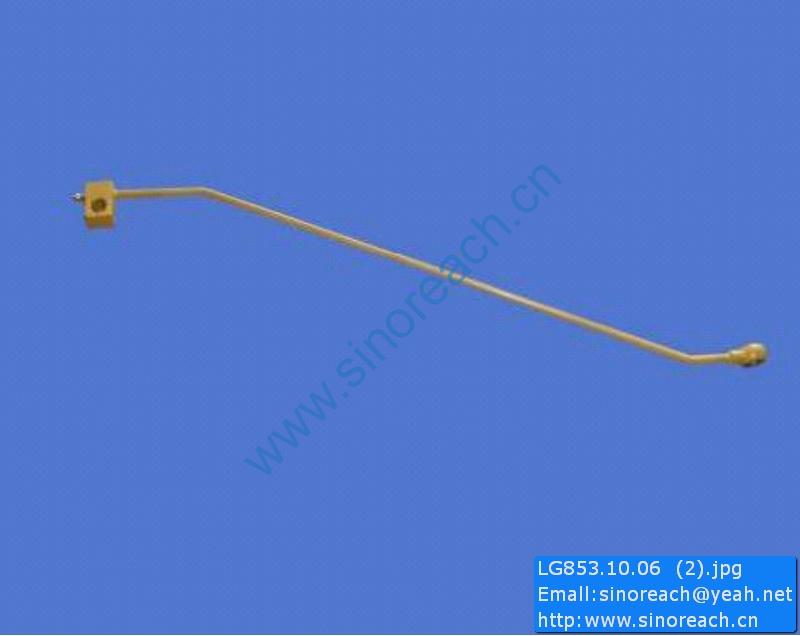

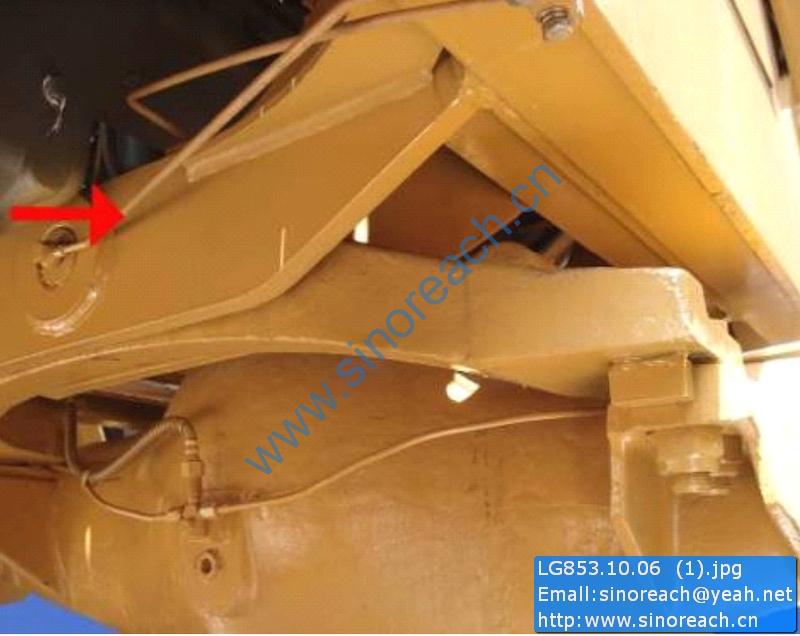

LG853.10.06 Oscillating suspension pin filling pipe I CDM843 parts

26 B-G002970-00017 1 轴承32024 Bearing
27 B-G002970-00016 1 轴承32022 Bearing
28 190C.8-36 1 O形圈 O-Ring
29 190C.8-13 1 垫 Shim
190C.8-14 1 垫 Shim
190C.8-15 1 垫 Shim
30 190C.8-17 1 调整垫 Shim
190C.8-18 1 调整垫 Shim
190C.8-19 1 调整垫 Shim
31 B-G057830-00078 1 螺栓M16x50-10.9 Bolt
32 B-Q020490-00007 1 垫圈16 Washer
33 B-G09877A-00043 1 油封FB80x105x10 Seal
34 190C.8A-3 1 半壳 Half Case
35 B-Q020490-00005 1 垫圈14 Washer
36 B-G057820-00068 1 螺栓M14x90-10.9 Bolt
190C.8A.1 1 NOSPIN差速器 Differential
37 71965 1 花键毂 Side Gear
38 67207 1 弹簧座 Retainer
39 67204 1 弹簧 Spring
40 67483 1 从动环总成 Clutch，H.O.R. Ass’y.
41 71966 1 主动环总成 Spider，C’Cam Ass’y.

1 190C.8C-1A 1 短半轴 Short Shaft
2 190C.8C-2A 1 长半轴 Long Shaft
3 B-G002830-00003 1 滚动轴承NUP215E Bearing
4 B-Q020580-00001 1 挡圈130 Snap Ring
5 190C.8-11 1 小链轮 Small Sprocket
6 190C.8-39 1 轴套 Spacer
7 190C.8-10 1 轴套 Spacer
8 190C.8-46 1 座 Holder
9 B-G057830-00042 1 螺栓M12×45-10.9 Bolt
10 190C.8-45 1 保险片 Lock
11 190C.8-47 1 垫 Shim
