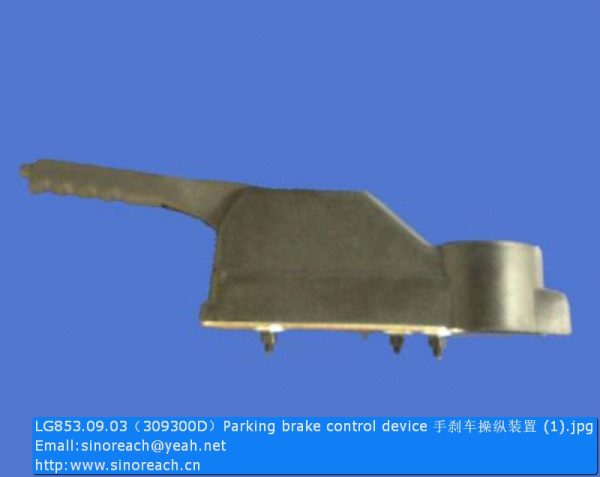

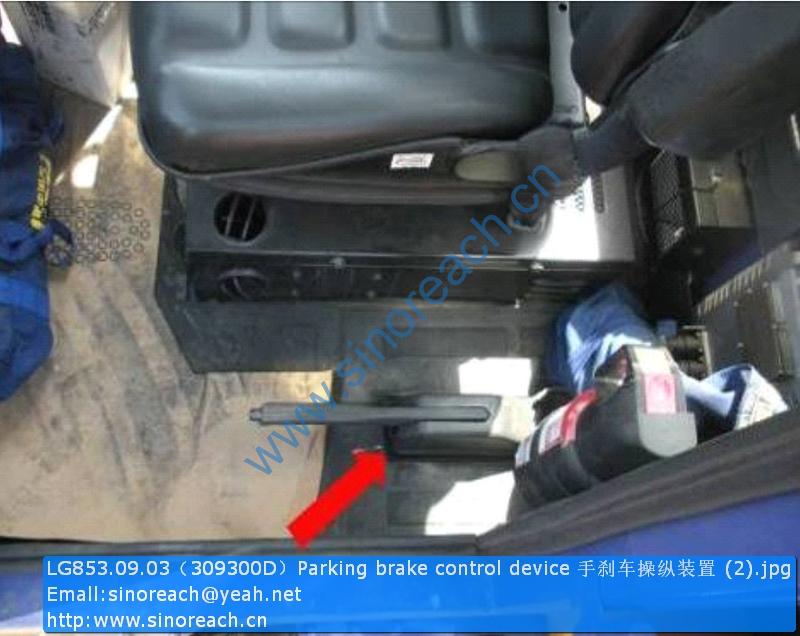

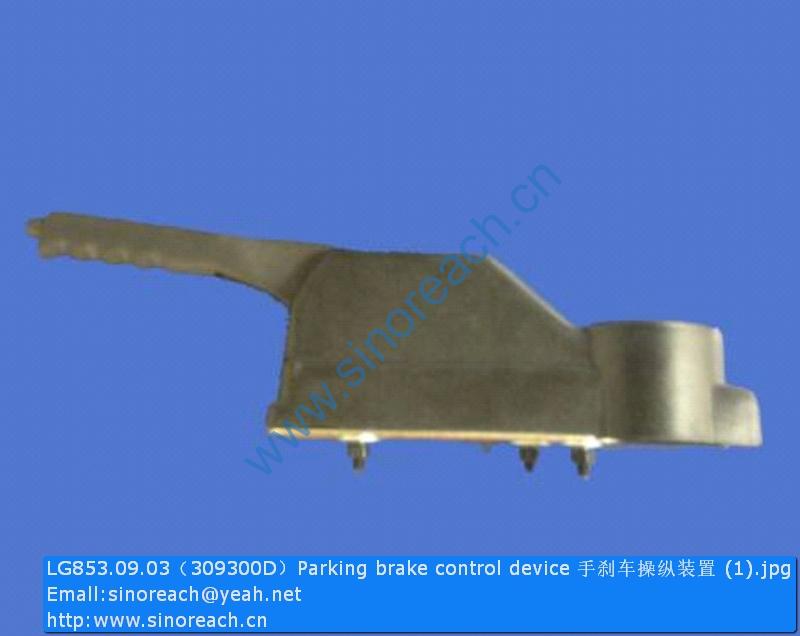

LG853.09.03 309300D Parking brake control device CDM833 CDM835 CDM843 CDM853 parts

31 B-G057830-00097 1 螺栓M20X50ZnD BOLT 4
32 B-G000930-00008 1 垫圈20 WASHER 4
33 Z60H.4.1.1 1 接管 TUBE 2
34 B-G057820-00124 1 螺栓M22X140ZnD BOLT 2
35 Z30.1-10 1 垫圈 WASHER 4
36 Z30.1.2.1 1 缓冲座 SUPPORT 2
37 Z30.1.2-1 1 缓冲橡胶 CUSHION 2
38 B-Q020490-00013 1 垫圈22 WASHER 4
39 B-G061720-00009 1 螺母M22ZnD NUT 2
40 B-G061700-00020 1 螺母M22ZnD NUT 2
41 190C.4-9 1 垫圈（调整用） TAB 1组
42 190C.4-7 1 软钢纸板 WASHER 1
43 190C.4-3 1 压板 BOARD 2
44 190C.4-4 1 橡胶垫 WASHER 2
45 190H.4.3 1 加油管保护板 PLATE 1
46 B-Q020490-00003 1 垫圈12 WASHER 2
47 B-G057830-00037 1 螺栓M12×35ZnD BOLT 2
48 B-Q020750-00070 1 胶管接头25I-2950 JOINT 1
49 B-Q020750-00072 1 胶管接头25I-3300 JOINT 1

1 190C.8-1 1 中心箱 Case
2 190C.8-44 1 板 Plate
3 190C.8-43 1 密封垫 Gasket
4 B-G057830-00037 1 螺栓M12×35 ZnD Bolt
5 B-Q020490-00003 1 垫圈12 Washer
6 190C.8-12A 1 边箱 Side Case
7 190C.8-21 1 轴衬 Bushing
8 B-Q020520-00005 1 O形圈314.4×5.7 O-Ring
9 B-G057820-00083 1 螺栓M16×60 ZnD Bolt
10 B-Q020490-00007 1 垫圈16 Washer
11 190C.8B-1 1 法兰 Flange
12 190C.8.5 1 管组件 Pocket
13 B-Q020520-00006 1 O形圈354.4×5.7 O-Ring
14 B-Q020520-00007 1 O形圈369.4×5.7 O-Ring
15 190C.8-37 1 垫圈 Washer
16 1 上、下壳体组件 Cage Ass’ Y
190C.8-5 1 上壳体 Upper Cage
190C.8-7 1 下壳体 Lower,Cage
17 B-G001190-00024 1 销B8×20 Pin
18 190C.8-42 1 压板 Plate
19 190C.8-41 1 压板 Plate
20 B-G057830-00143 1 螺栓M8×25 ZnD Bolt
21 B-Q020490-00023 1 垫圈8 Washer
22 190C.8-6 1 密封圈 Seal
23 B-G057820-00055 1 螺栓M12×80 ZnD Bolt
24 190C.8-9 1 螺栓 Bolt
25 B-G061700-00007 1 螺母M12 ZnD Nut
26 B-Q020490-00003 1 垫圈12 Washer
27 190C.8-38 1 螺栓 Bolt
28 B-G057820-00086 1 螺栓M16×65 ZnD Bolt
29 B-Q020490-00007 1 垫圈16 Washer
