Description

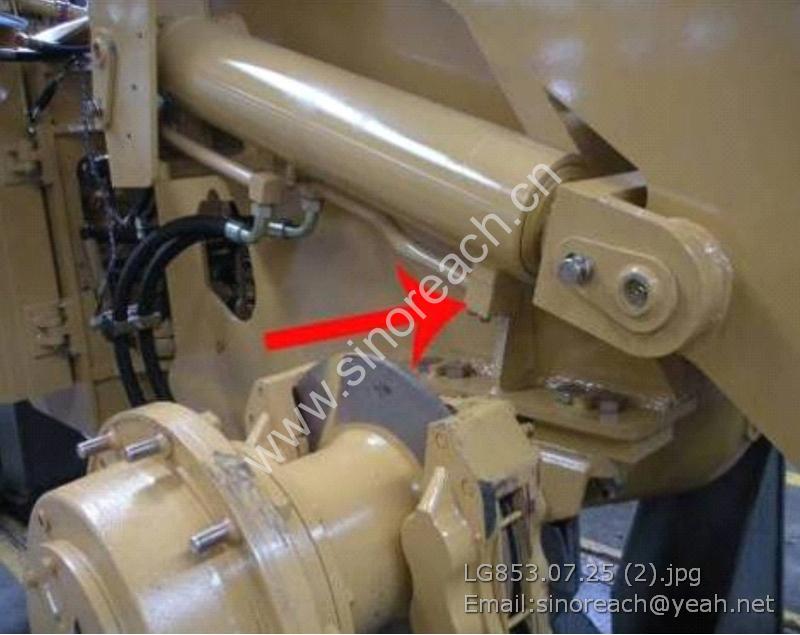

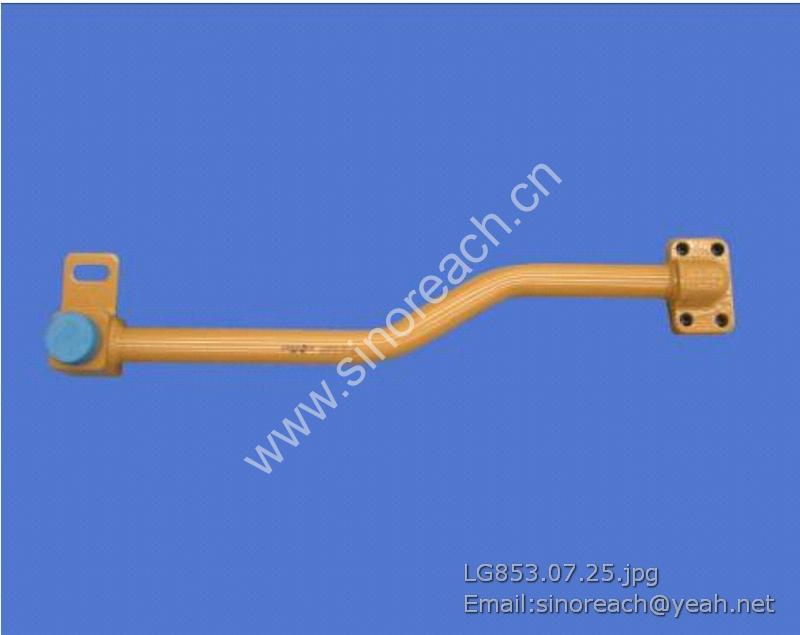

LG853.07.25 Lift cylinder small chamber pipe (right) for LONKING

GB5786-86 螺栓M12×1.5×40-10.9 Bolt M12×1.5×40-10.9 40
GB889-86 螺母M12×1.5-8 Nut M12×1.5-8 40
LG50F.04201A 前传动轴总成 Front drive shaft assembly 1 LG855.04.01
LG50F.04202A 中间支承轴 Intermediate support shaft 1 LG855.04.02
GB5782-86 螺栓M16×50-8.8 Bolt M16×50-8.8 4
GB97.1-85 垫圈 16 Washer 16 4
GB93-87 垫圈 16 Washer 16 4
LG50F.04203A 中/后传动轴总成 Intermediate/rear drive shaft assembly 2 LG855.04.03

403302A 尼龙自锁螺母M33×1.5 Nylon self-lock nut M33×1.5
404327 O型圈 O-ring
404301-302B 输入法兰 Input flange
GB/T5782 螺栓M14×55-8.8 Bolt M14×55-8.8
GB/T93 垫圈 14 Washer Ф14
GB/T5782 螺栓 M12×55-8.8 Bolt M12×55-8.8
GB/T93-87 垫圈 12 Washer 12
GB/T9877.1-1998 油封 FB62×93×13 Seal FB62×93×13
404303A 密封盖 Seal cover
404304 密封垫 Seal gasket
GB/T297 圆锥滚子轴承 31310 Taper roller bearing 31310
404306 轴承套 Bearing sleeve
404305 铜垫 Copper pad
404325 调整垫片 Adjusting shims
404307 轴套 Shaft sleeve
GB/T297 圆锥滚子轴承 31311 Taper roller bearing 31311
404312B 托架 Bracket
GB/T297 圆锥滚子轴承 32215 Taper roller bearing 32215
404315 调整螺母 Adjusting nut
404319B 锁紧片 Lock sheet
GB/T93-87 垫圈 10 Washer 10
GB/T32.1 螺栓 M10×1×20-8.8 Bolt M10×1×20-8.8
GB/T97-76 垫圈 22 Washer 22
GB/T32.1 螺栓 M22×90-8.8 Bolt M22×90-8.8
保险铁丝Ф1.6×450 Iron wire Ф1.6×450
404311C/D 主动螺旋伞齿轮 Spiral bevel gear

GB/T283 圆柱滚子轴承 NUP2306E Pillar roller bearing NUP2306E
GB/T894.2 挡圈 30 Spacer 30
GB/T91 开口销3×26 Cotter pin 3×26
GB/T6178 螺母M14 Nut M14
404316 差速器左壳 Left differential case
404328 半轴齿轮垫片 Axle shaft gear washer
404317 半轴齿轮 Axle shaft gear
404314 锥齿轮 Bevel gear
404313 锥齿轮垫片 Bevel gear spacer
404001B 主传动垫片 Final drive spacer
404321 十字轴 Spider
404318 轴承盖 Bearing cover
404323B 螺栓 Bolt
404324 大螺旋伞齿轮 Spiral bevel gear
404322B 差速器右壳 Right differential case
GB/T6180 螺母 M16 Nut M16
GB/T91 开口销 4×28 Cotter pin 4×28
404320B 螺栓 Bolt
GB/T5782 螺栓 M16×40 Bolt M16×40
GB/T93 垫圈 16 Washer 16
