Description

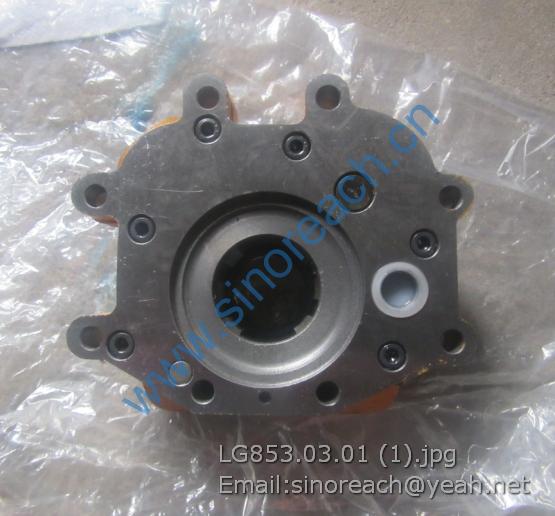

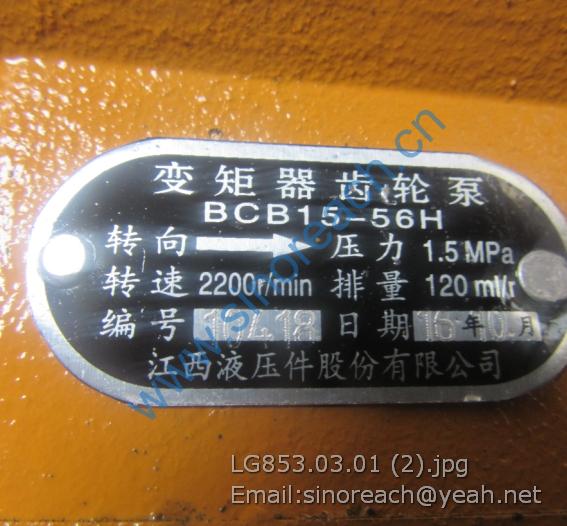

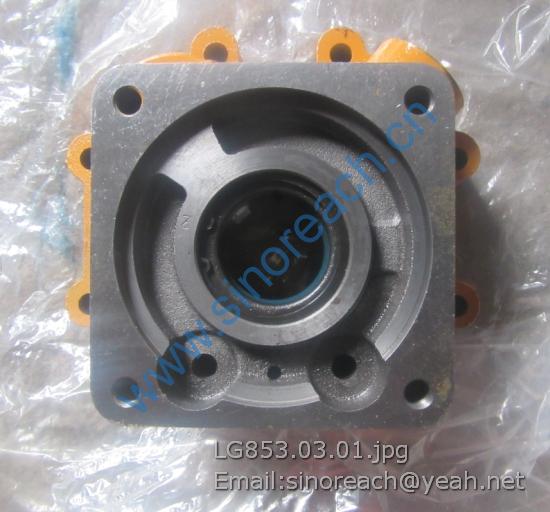

LG853.03.01.10 403600 gear pump for LONKING CDM856 spare part
1 190-01 LINK R.H 右链板 1
2 190-02 WASHER 垫圈 2
3 190-03 BUSHING 衬套 1
4 190-04 TRACK SHOE 履带板 1
5 190-05 BOLT 螺栓 4
6 190-06 * LOOSE PIN 活销 1
7 190-07 NUT 螺母 4
8 190-08 * PIN 销 1
9 190-09 LINK L.H 左链板 1
10 190-10 * SEAL 防尘密封圈 2
11 190-11 BUSHING 衬套 1
190－K REPAIRING KIT 维修包
1 (R1/8 BASE TEE)-30487-
1330(R1/8 RIGHT-ANGLE) LUBRICATION HOSE ASSEMBLY 润滑软管总成 2
2 QND1243×32Z SWING CIRCLE 回转支承 1
3 PT1/8 GREASE CUP 油杯 4
4 SNM7843 JOINT 接头 2
5 CDM6210.08-03A CUSHION COVER 垫套 36
6 GB/T5782 BOLT M22×75 螺栓 M22×75 36
GB/T5782 BOLT M22×115 螺栓 M22×115 36
7 GB/T1230 WASHER 22 垫圈 22 36
8 R08-8 HOSE CLIP 软管夹 3
9 GB/T97.1 WASHER 6 垫圈 6 2
10 GB/T5783 BOLT M8×16 螺栓 M8×16 2
11
CDM6210.08-08
CYLINDRICAL PIN WITH INTERNAL
TREAD 内螺纹圆柱销 1
12 22587-2 RIGHT-ANGLE CONNECTOR 直角接头 2
13 22632-2T RIGHT-ANGLE CONNECTOR 6 直角接头 6 2
14 CDM6210.14-01 CYLINDRICAL PIN 圆柱销 1
15 M5 × 130CHB-10A-85A/260-
RG11D20M1
SWING DRIVE 回转驱动 1
16 GB/T5783 BOLT M20×60 螺栓 M20×60 11
17 GB/1230 WASHER 20 垫圈 20 11
1 CDM6210.14.550 FLANGE COMPONENT 法兰组件 4
2 6ZWII18K2F CENTRAL SWING CONNECTOR 中央回转接头 1
3 GB/T5783 BOLT M12×35 螺栓 M12×35 4
4 GB/T1230 WASHER 12 垫圈 12 4
5 CDM6210.14.503 STRAIGHT CONNECTOR 直通接头 1
6 CDM6210.14.531 THREE-WAY CONNECTOR 三通接头 1
7 CDM6210.14.501 STRAIGHT CONNECTOR 直通接头 2
8 CDM6210.14.507 STRAIGHT CONNECTOR 直通接头 2
9 CDM6210.14.512 STRAIGHT CONNECTOR 直通接头 4
10 CDM6210.14.516 F OIL PORT CONNECTOR F 油口接头 1
11 CDM6210.14.513 REDUCER UNION 变径接头 1
12 CDM6210.14.532 THREE-WAY CONNECTOR 三通接头 1
