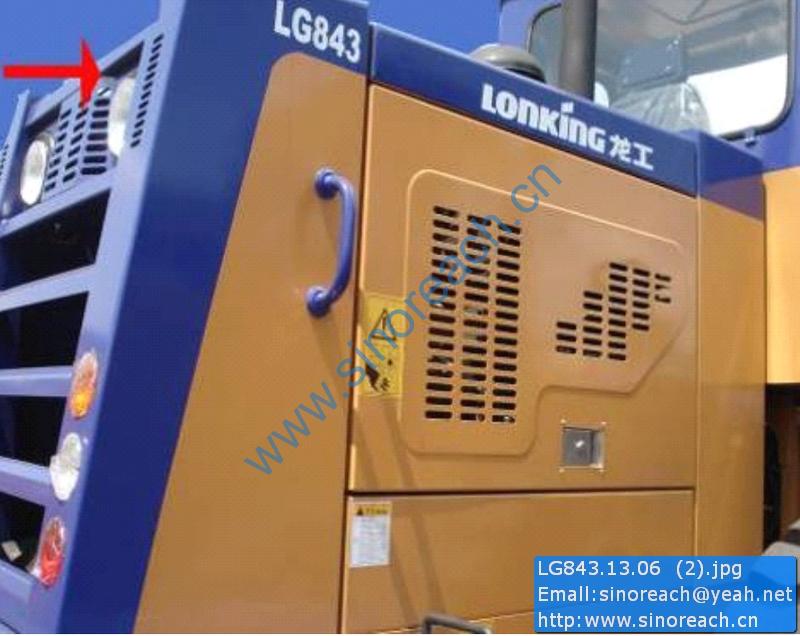

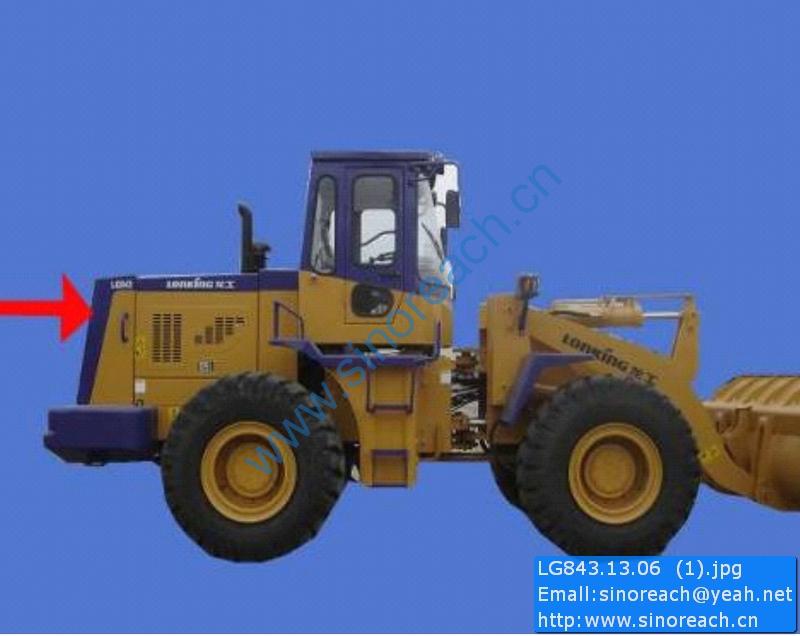

LG843.13.06 Engine hood assembly CDM843 parts

1 WZ30.9-2 O型圈 O-Ring 2
2 WZ30.9-1 接头 Joint 2
3 B-Q020710-00098 O型圈8×1.9 O-Ring 8
4 B-Q020750-00081 胶管接头4I-650 Hose 2
5 B-G057830-00139 螺栓 M8×20ZnD Bolt 1
6 B-G00097B-00023 垫圈8ZnD Washer 3
7 WZ30.9-7 管夹 Clamp 2
8 WZ30C.9.2 油管 Oil Pipe 1
9 WZ30C.9.1 油管 Oil Pipe 1
10 B-J018800-00002 喉箍16 Clamp 6
11 WZ30.9-20 夹布输油胶管φ8×1600 Hose 1
12 WZ30.9-17 胶管外护套 Sleeve 1
13 B-J018800-00003 喉箍20 Clamp 2
14 WZ30.9-19 夹布输油胶管φ8×1500 Hose 1
15 WZ30.9.1 油杯 Oil Cup 1
16 WZ30.9-5 支架 Support 1
17 B-G057830-00137 螺栓M8×16ZnD Bolt 2
18 WZ30.9-18 夹布输油胶管φ8×600 Hose 2
19 WZ30.9.2 油管 Oil Pipe 1
20 WZ30.9-6 接头 Joint 2
21 B-J010020-00001 垫圈10 Washer 2
22 WZ30C.9-1 接头 Joint 2
23 B-J010020-00002 垫圈12 Washer 4
24 WZ30.9-16 螺栓 Bolt 2
25 WZ30C.9-2 螺栓 Bolt 2

1 WZ30C.10D.4 接头体 Joint body 1
2 WZ30C.10-1 O形圈 O-Ring 1
3 WZ30C.10D.5 接头体 Joint body 1
4 WZ30.10D.1 接头体 Joint body 1
5 WZ30.10A-1 O形圈 O-Ring 2
6 W-16-00380 软管总成 Hose ass’y 2
7 WZ30C.10B.1 油管 Tube 1
8 WZ30C.10B.2 油管 Tube 1
9 B-G000930-00001 垫圈10 Washer 11
10 WZ30.10-2 管夹 Clamp 2
11 B-Q020490-00023 垫圈8 Washer 4
12 B-G057830-00143 螺栓M8×25ZnD Bolt 2
13 B-G061700-00003 螺母M10ZnD Nut 4
14 WZ30.10D-1 接头体 Joint body 2
15 WZ30.10-10 O形圈 O-Ring 4
16 W-16-00392 软管总成 Hose ass’y 2
17 WZ30.10D.5 接头体 Joint body 1
18 W-16-00389 软管总成 Hose ass’y 1
19 WZ30.10D.6 接头体 Joint body 1
20 W-16-00387 软管总成 Hose ass’y 1
22 W-19-00026 转向器阀块总成 Steering gear 1
23 Z50B.10-5 螺栓 Bolt 1
24 WZ30C.10D.3 接头体 Joint body 1
25 W-16-00378 软管总成 Hose ass’y 1
26 WZ30.10-4 螺栓 Bolt 4
27 WZ30.10-5 板 Plate 1
28 B-J010020-00002 垫圈12 Washer 2
29 WZ30.10-13 U型管夹 Bolt 1

30 B-G061700-00036 螺母M8ZnD Nut 2
31 WZ30.10.6 方向杆组件 Without Tit Steering 1
32 W-19-00001 方向盘TCM-2 Wheel 1
33 B-G061730-00007 螺母M16×1.5ZnD Nut 1
34 WZ30.10-6 橡胶垫 Mount 3
35 WZ30.10-7 橡胶垫 Mount 3
36 WZ30.10-8 套 Spacer 3
37 WZ30.10-9 垫片 Washer 3
38 B-G008890-00001 螺母M10ZnD Nut 3
39 B-G057820-00016 螺栓M10×55ZnD Bolt 3
40 WZ30C.10-2 O形圈 O-Ring 1
41 WZ30.10B.3 接头体 Joint body 1
