Description

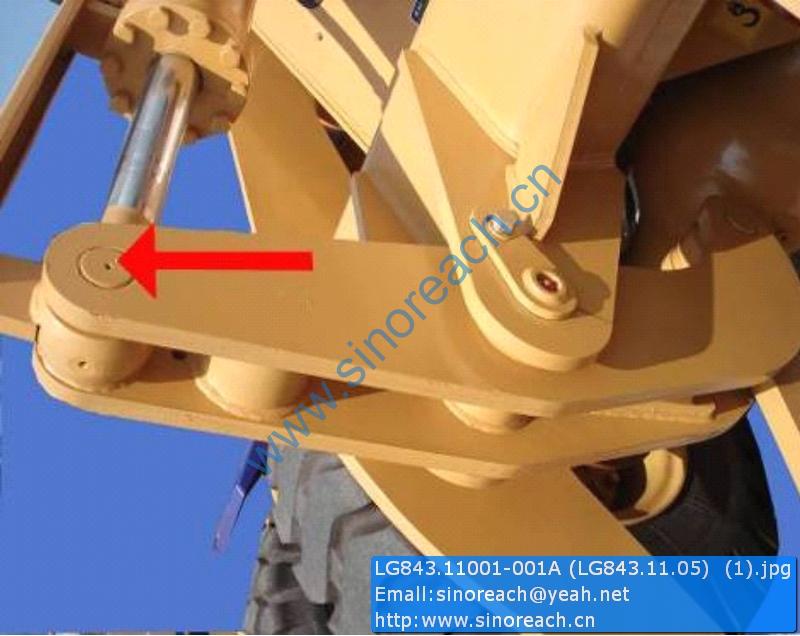

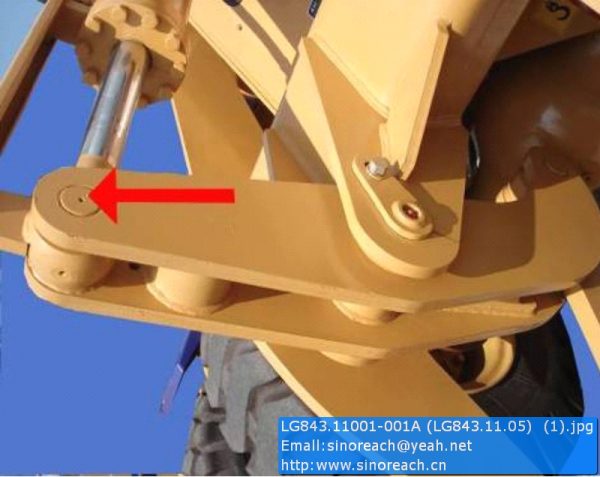

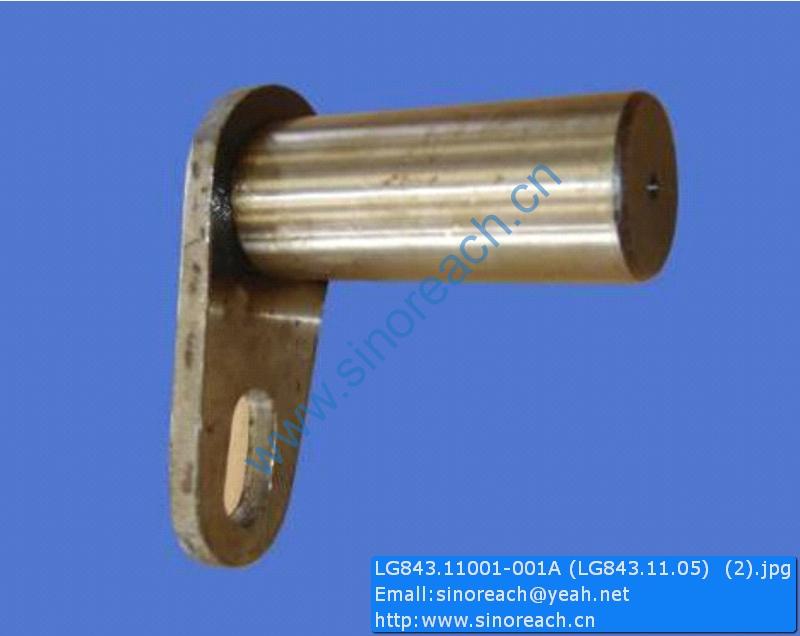

LG843.11001-001A LG843.11.05 Tilt lever end pin CDM843 parts

57 B-G061700-00007 螺母M12ZnD Nut 4
58 B-Q-020710-00050 O形圈32×3.1 O-ring 4
59 W-16-00407 软管总成 Hose ass’y 1
60 B-Q020050-00016 线夹C30×43 Clip 2
61 B-G057830-00025 螺栓M12×16ZnD Bolt 2
62 B-G00097B-00004 垫圈12ZnD Washer 10
63 WZ30C.14B-6 泵连接盘 Joint 1
64 B-G057830-00029 螺栓M12X25-10.9ZnD Bolt 4
65 B-G057830-00006 螺栓M10X25ZnD Bolt 2
66 WZ30C.14B-3 U型螺栓 U-Bolt 1
67 WZ30C.14B-4 连接板 Plate 1
68 B-Q020490-00001 垫圈10 Washer 6
69 B-G000930-00003 垫圈12 Washer 2

1 B-G057830-00006 螺栓M10×25ZnD Bolt 4
2 B-G00097B-00001 垫圈10ZnD Washer 8
3 WZ30.14.4-1 盖板 Cover plate 1
4 B-J010000-00008 螺塞M22×1.5 Plug 2
5 WZ30.14D.1.1 箱体 Tank body 1
6 B-G061700-00003 螺母M10ZnD Nut 2
7 WZ30.14.4-2 压板 Plate 2
8 WZ30.14.4-3 拉杆 Rod 1
9 B-G057820-00236 螺栓M10×230ZnD Bolt 2
10 B-J010020-00007 垫圈22 Washer 2
11 B-G057830-00137 螺栓M8×16ZnD Bolt 12
12 B-G000930-00017 垫圈8 Washer 12
13 WZ30.14.4-4 盖板 Cover plate 2
14 WZ30.14.4-5 纸垫 Paper washer 2
15 W-15-00066 预压式空气滤清器 Air filter 1
16 Z30.14A.8.7 油标 Oil gauge 1
17 B-G000930-00001 垫圈10 Washer 2
18 W-12-00006 防滑布 Pad 4
