Description

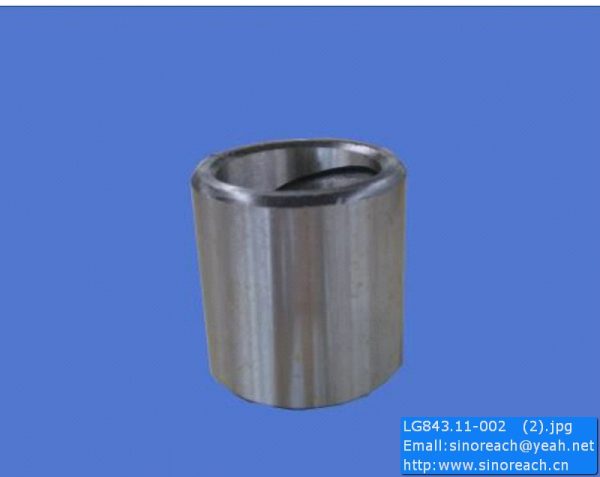

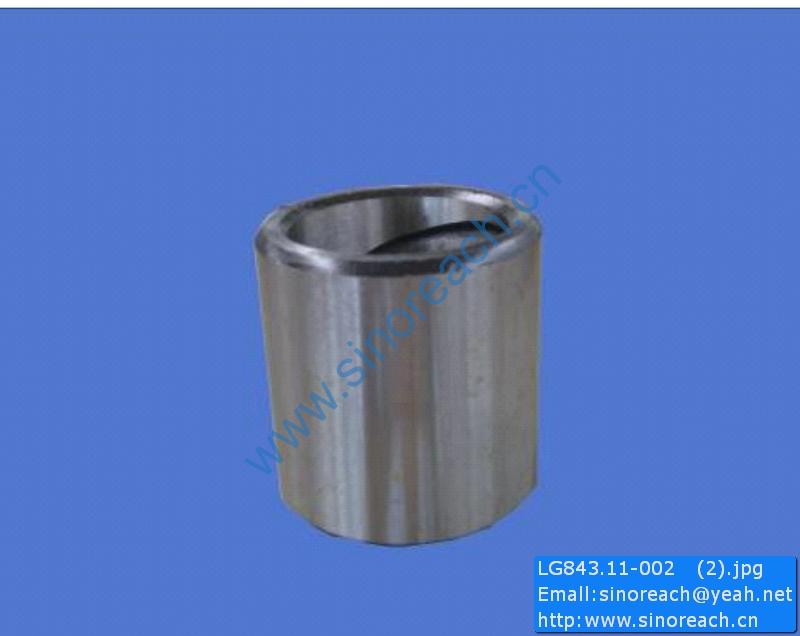

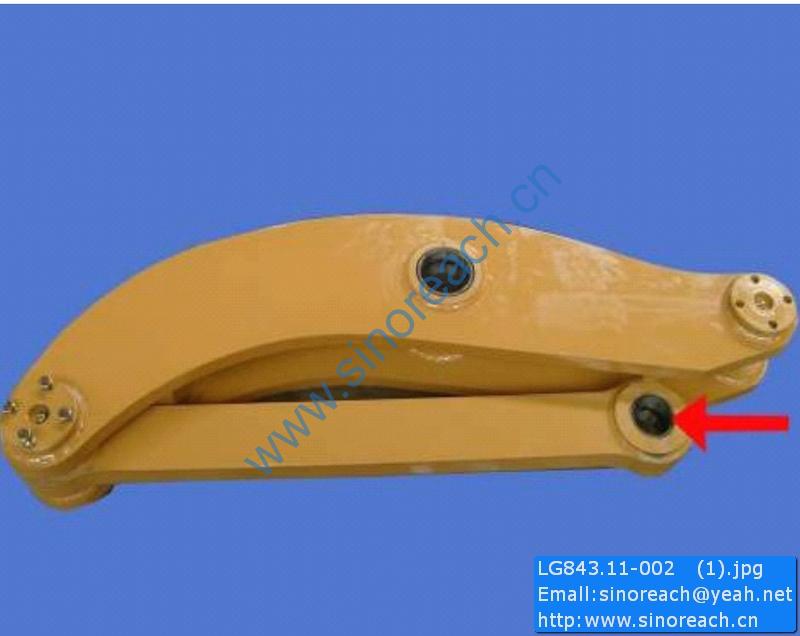

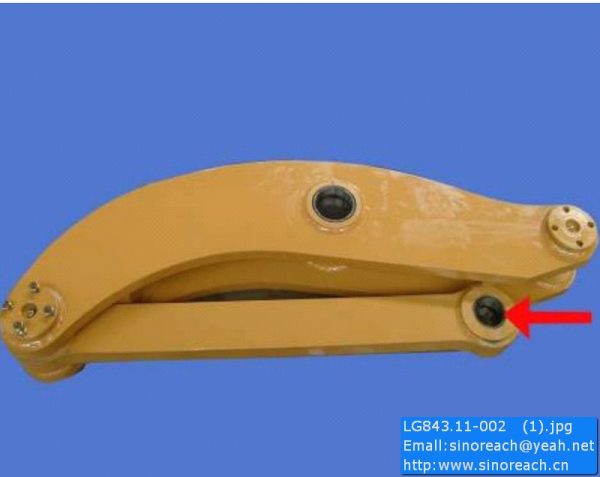

LG843.11-002 Pull rod bush CDM843 parts
29 B-G061700-00003 螺母M10ZnD Nut 6
30 B-G008980-00021 螺柱M10×85ZnD Stud 2
1 WZ30.4.6 手柄上盖 Upper knob 1
2 LA42(B)-11/R 按钮开关 Switch 1
3 WZ30.4.7 手柄下盖 Lower Knob 1
4 B-G000790-00002 螺钉M8×10ZnD Screw 1
5 B-G00862A-00003 垫圈5 Washer 2
6 B-G000650-00003 螺钉M5×20ZnD Screw 2
7 WZ30C.4B.1 档位操纵杆 Shift Lever 1
8 B-G057830-00132 螺栓M6×25ZnD Bolt 1
9 B-G057820-00048 螺栓M12×65ZnD Bolt 1
10 B-G00097B-00004 垫圈12ZnD Washer 2
11 WZ30.4-5 半圆键 Key 1
12 B-G008890-00002 螺母M12ZnD Nut 1
13 WZ30.4-6 档位操纵杆拉簧 Spring 1
14 B-G00097B-00021 垫圈6ZnD Washer 1
15 WZ30.4.5 操纵杆护套 Boot 1
1 WZ30.4.1.1 油尺座 Dipstick Seat 1
2 WZ30.4.1.2 油尺 Dipstick 1
3 B-Q020710-00040 O形圈24×2.4 O-Ring 1
4 B-G057820-00074 螺栓M16×130ZnD Bolt 2
5 WZ30.4.1-1 接头 Joint 1
6 WZ30.4-3 垫圈 Washer 6
7 Z30.1.2-1 减震垫 Spacer 2
8 WZ30.4.3 左支板 Left Bracket 1
9 B-G00097B-00004 垫圈12ZnD Spacer 8
10 B-G057830-00037 螺栓M12×35ZnD Bolt 7
11 B-G000930-00003 垫圈12 Washer 7
12 Z30.1.2.1 减震垫 Spacer 2
13 B-G061700-00014 螺母M16ZnD Nut 2
14 B-G061720-00004 螺母M16ZnD Nut 2
15 W-03-00134 液力变速器 Transmission 1
16 WZ30.4.8 接头 Joint 2
17 WZ30C.4B-1 散热器到变速箱油管φ16×2050 Pipe 1
18 WZ30.4.4 右支板 Right Bracket 1
19 WZ30.4-4 线夹 Clip 1
20 WZ30C.4B-2 变速箱到散热器油管φ16×1410 Pipe 1
21 B-G057830-00180 螺栓M10×80ZnD Bolt 10
22 B-G057830-00030 螺栓M12×25ZnD Bolt 1
23 B-G057830-00001 螺栓M10×16ZnD Bolt 6
24 B-G000930-00001 垫圈10 Washer 22
25 B-G009000-00001 螺柱M10×30-10.9ZnD Stud 4
26 W300 液力变矩器 Converter 1
27 连接板 (液力变矩器带) Plate 1
28 B-G00097B-00002 垫圈10ZnD Washer 4
29 B-G061700-00003 螺母M10ZnD Nut 6
30 B-G008980-00021 螺柱M10×85ZnD Stud 2
