Description

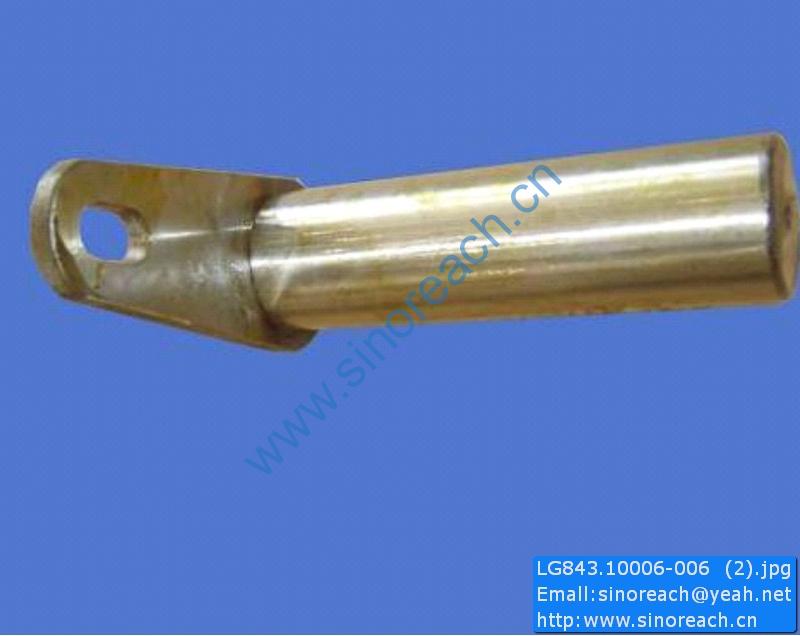

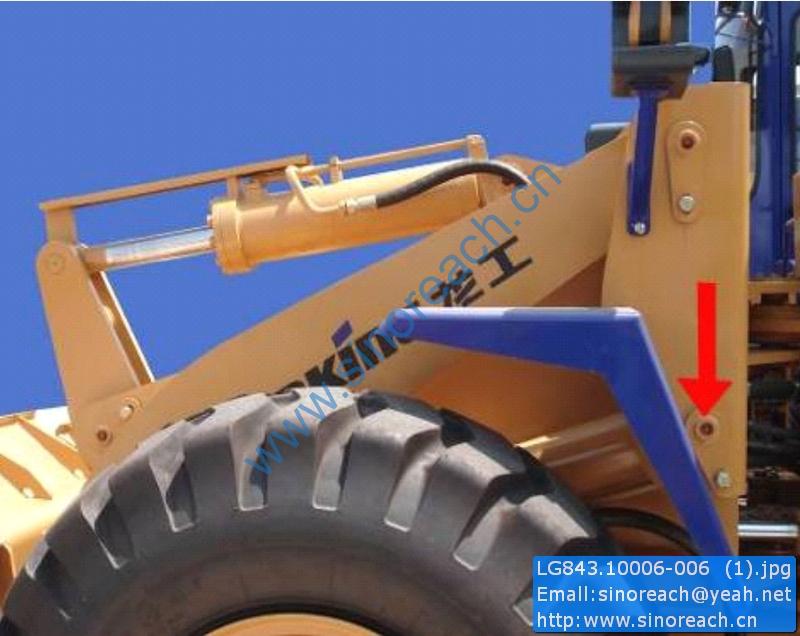

LG843.10006-006 Lift cylinder rear pin CDM843 parts
1 WZ30.13.1.1 斗 Bucket 1
2 WZ30.13.1-2 轴套40A Bushing 8
3 B-G057820-00113 螺栓M20×160-10.9ZnD Bolt 2
4 B-Q020490-00011 垫圈20 Washer 4
5 WZ30.13.1-1 隔套 Spacer 2
6 B-G061700-00018 螺母M20ZnD Nut 2
7 WZ30.13.1-3 附加铲刃板 Edge 1
8 190C.13-26 螺栓 Bolt 10
9 190C.13-26 螺母 Nut 10
1 WZ30C.14-1 夹布胶管 Hose 1
2 B-J088700-00013 喉箍d30 Clamp 4
3 WZ30C.14.1 泵进油管 Tube 1
4 B-G057830-00010 螺栓M10×30ZnD Bolt 8
5 B-G000930-00001 垫圈10 Washer 14
6 B-Q020710-00071 O形圈48×3.5 O-ring 1
7 WZ30.14-2 低压胶管 Hose 2
8 B-J088700-00018 喉箍Dd70 Clamp 4
9 W-01-00060 齿轮油泵 Pump 1
10 B-G008980-00009 螺柱M14×35-8.8ZnD Bolt 4
11 B-Q020490-00005 垫圈14 Washer 4
12 WZ30C.14B-5 泵连接套 Joint 1
13 B-G057830-00010 螺栓M10X40-10.9ZnD Bolt 4
14 B-Q020490-00003 垫圈12 Washer 8
15 WZ30C.14B-2 钢管 Tube 1
16 WZ30.14D.1 液压油箱 Hydraulic tank 1
17 WZ30.14-5 垫圈 Washer 1
18 B-G057830-00101 螺栓M20×60ZnD Bolt 4
19 B-G00097B-00010 垫圈20ZnD Washer 4
20 WZ30C.14-16 板 Plate 1
21 B-G057830-00003 螺栓M10×20ZnD Bolt 4
22 W-07-00095 装载阀 Valve 1
23 B-G057830-00041 螺栓M12×40ZnD Bolt 4
24 WZ30C.14D-1 接头 Joint 1
25 WZ30C.14-6 O形圈 O-ring 3
26 WZ30C.14D-2 接头 Joint 1
27 WZ30C.14-8 O形圈 O-ring 2
28 WZ30C.14D-5 接头 Joint 1
29 W-16-00405 软管总成 Hose ass’y 1
30 W-16-00408 软管总成 Hose ass’y 1
31 W-07-00094 挖掘阀 Valve 1
32 WZ30C.14D.1 接头 Joint 1
33 WZ30C.14D.2 接头 Joint 1
34 W-16-00399 软管总成 Hose ass’y 1
35 WZ30C.14D.3 接头 Joint 1
36 B-G057820-00196 螺栓M6×65ZnD Bolt 8
37 B-G000930-00015 垫圈6 Washer 8
38 B-Q020710-00082 O形圈60×3.1 O-ring 2
39 WZ30C.14-14 座 Seat 2
40 W-15-00110 精滤器 Filter 1
41 B-G057830-00018 螺栓M10×50ZnD Bolt 2
42 W-16-00377 软管总成 Hose ass’y 1
43 WZ30C.14D-3 接头 Joint 1
44 WZ30C.14-10 O形圈 O-ring 1
45 WZ30C.14D.4 接头 Joint 1
46 W-07-00093 优先阀 Demand valve 1
47 B-G057820-00207 螺栓M8×75ZnD Bolt 2
48 B-G000930-00017 垫圈8 Washer 2
49 WZ30C.14D-4 接头 Joint 1
50 WZ30C.14-12 O形圈 O-ring 2
51 W-16-00401 软管总成 Hose ass’y 1
52 WZ30C.14D.5 接头 Joint 1
53 W-16-00403 软管总成 Hose ass’y 1
54 WZ30C.14-13 夹布胶管 Hose 1
55 WZ30C.14D.6 泵出油接头 Joint 1
56 B-Q-020710-00065 O形圈41×3.5 O-ring 1
