Description

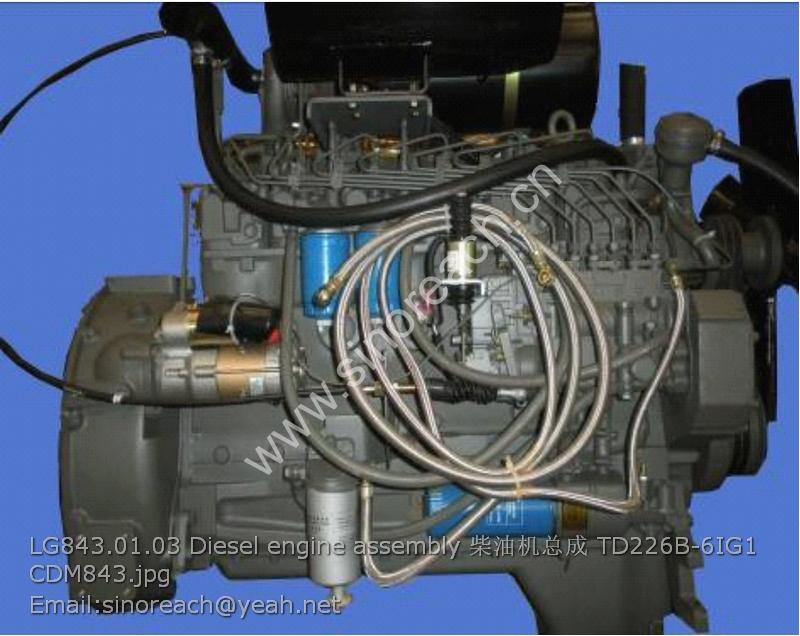

LG843.01.03 Diesel engine assembly TD226B-6IG1 CDM843

612600140060 油门软轴(1900) Throttle flexible shaft
LG853.01.06-001 软轴固定架 Flexible shaft fixed support
LG853.01.06-002 软轴支架 Flexible shaft support
GB/T93 垫圈6 Washer 6
GB/T97.1 垫圈6 Washer 6
GB/T6170 螺母M6 Nut M6
GB/T5783 螺栓M6×20 Bolt M6×20
LG853.01.06.02 油门踏板总成 Throttle pedal assembly

LG853.02.01 变矩器总成 Torque converter assembly
402237 双头螺栓 Stud
GB/T6171 螺母M10X1 Nut M10X1
GB/T93 垫圈10 Washer 30
LG855.02.02 双变油路总成 Transmission and torque converter oil circuit assembly
GB/T93 垫圈12 Washer 12
GB/T5782 螺栓M12×45 Bolt M12X45
LG50EX.02-001 吸油胶管 Oil suction hose

402002A 铰接螺栓 Articulated bolt
JB1002-77 垫圈27 Washer 27
402014B 接头体 Adapter
JB1002-77 垫圈30 Washer 30
GB/T5783 螺栓M8X35 Bolt M8×35
GB/T6170 螺母M8 Nut M8
GB/T93 弹垫8 Elastic pad 8
GB/T97.1 平垫8 Flat pad 8
YFL-A400X25LS-G 双变滤油器 Transmission and torque converter oil filter
306016D 接头体 Adapter
180B-270°-90B-25/28-Ⅰ-L1080 变矩器至滤油器胶管 Hose from torque converter to oil filter
90B-B/25/28-IIBZ-25/18BG-L750 滤油器至变矩器胶管 Hose from oil filter to torque converter
90B-45Q/25/28-Ⅰ-L2100 冷却器至变矩器胶管 Hose from cooler to torque converter
90B-90Q/25/28-Ⅰ-L1930 变矩器至冷却器胶管 Hose from torque converter to cooler
