Description

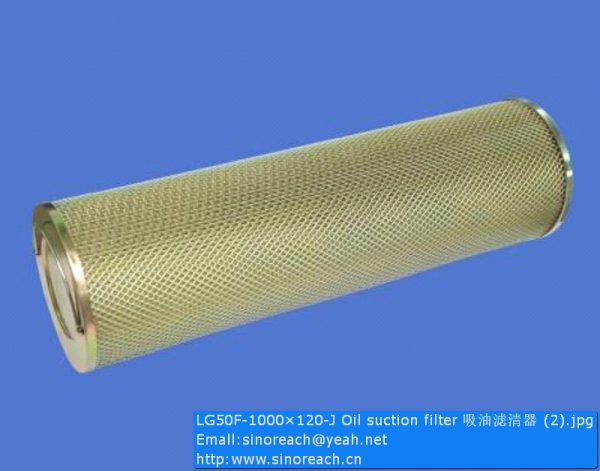

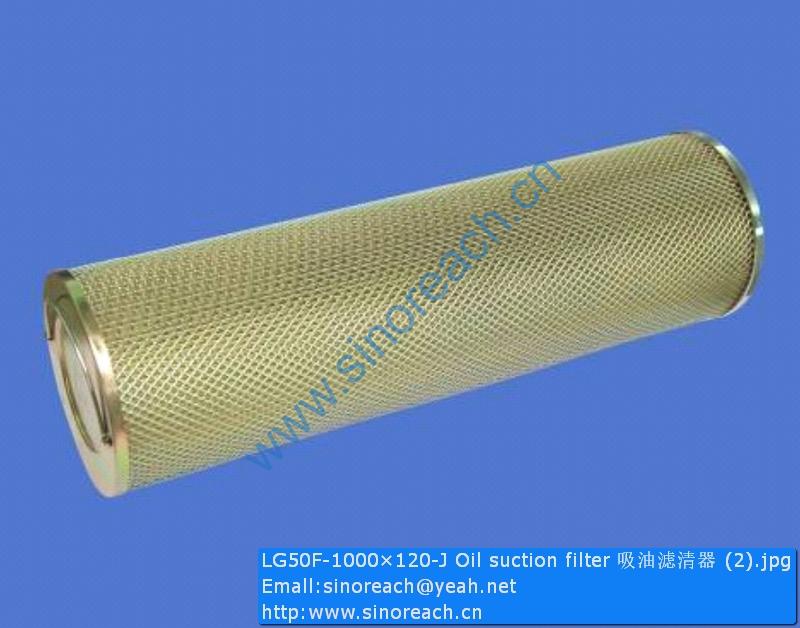

LG50F-1000×120-J Oil suction filter CDM855 CDM855E parts

1 B-G00893A-00014 孔用弹性挡圈75 Snap ring 2
2 B-G091630-00004 关节轴承GE50ES Joint bearing 1
3 Z60F.10.17.2 活塞杆 Pistion rod 1
4 防尘圈50 （HA3300500-01-100） Dust ring 1
5 B-Q020710-00075 Ｏ形圈55×3.1 O-ring 1
6 密封圈50（HS2310500-04-200） Seal ring 2
7 Z60F.10.17-4 导向套 Guide sleeve 1
8 B-Q020710-00001 Ｏ形圈100×5.7 O-ring 2
9 Z30.14.28-8 卡键 Block key 1
10 Z30.14.28-9 挡圈 Snap ring 1
11 B-G00894A-00025 轴用弹性挡圈90 Snap ring 1
12 B-G000910-00060 开口销6.3×65 Cotter pin 1
13 B-Q020710-00061 O形圈40×3.1 O-ring 1
14 Z60F.10.17-2 活塞 Pistion 1
15 格莱圈100( HK1501000-04-55N) Seal ring 2
16 Z60F.10.17-3 支承环 Support ring 1
17 B-G061780-00009 开槽六角螺母M36×2 Nut 1
18 Z60F.10.17.1 缸体 Cylinder body 1
19 Z60F.10.17-1 衬套 Bushing 1

1 W-18-00015 手控制动阀QZ50-3526002 Control valve 1
2 Z60F.11-3 堵头 Stopper 1
3 Z60F.11-2 直角接头 Joint 1
4 B-Q020710-00098 O形圈 8×1.9 O-Ring 5
5 W-13-00004 气管DH/G12X1.25 L=1200 Air pipe 1
6 B-G061700-00014 螺母M16ZnD Nut 2
7 B-G00097B-00008 垫圈16 ZnD Washer 2
8 B-G000930-00006 垫圈16 Washer 2
9 W-11-00004 报警灯开关SH361 switch 4
10 B-J010020-00002 垫圈12 Washer 2
11 Z60F.11-1 三通接头 Tee joint 1
12 W-18-00026 驻车制动气室QZ50A-3507001 chamber 1
13 Z60F.11-4 直角接头 Joint 1
14 W-13-00003 气管DH/G12X1.25 L=1000 Air pipe 1
15 B-G057830-00096 螺栓M20×45 ZnD Bolt 2
16
17
18
19
20
21



B-G00097B-00010
B-G000930-00008
Z60F.11.1
Z60F.9.13.1
Z60F.9.13-2
B-J010020-00005
垫圈20ZnD
垫圈20
支架
直角接头
接头
垫圈18 Washer
Washer
Bracket
Joint
Joint
Washer 2
2
1
1
1
1
