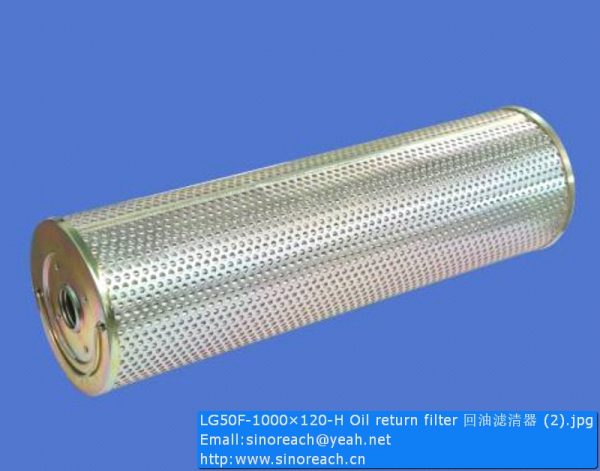

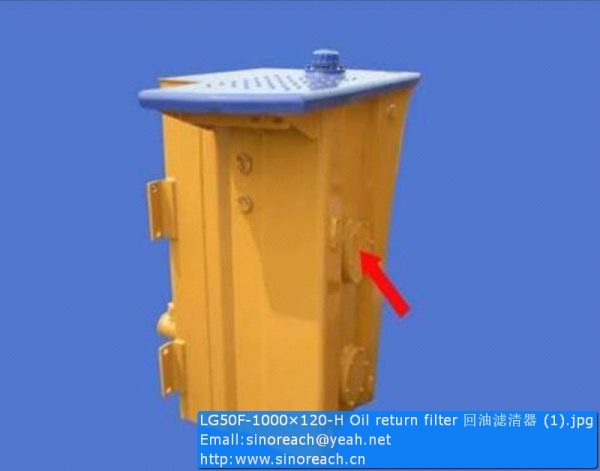

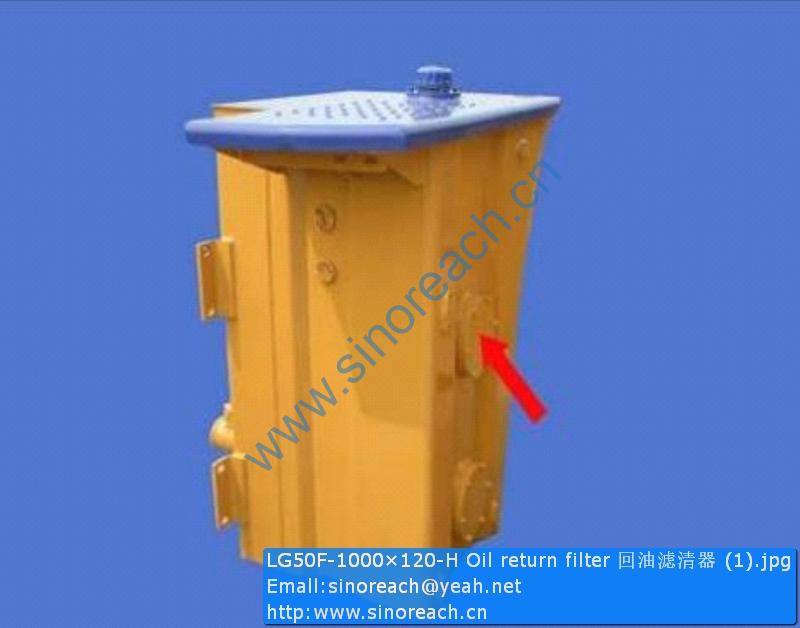

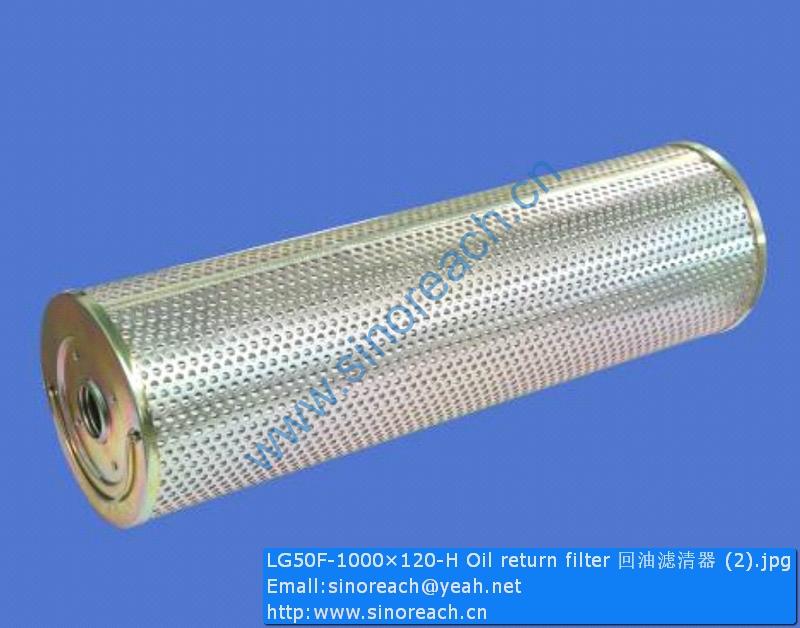

LG50F-1000×120-H Oil return filter CDM855 CDM855E parts

1 Z60H.10.11 油管 Oil tube 1
2 B-Q020710-00050 O形圈32×3.1 O-ring 4
3 Z60H.10.14 软管总成 Hose ass’y 1
4 Z60H.10.12 油管 Oil tube 1
5 Z60H.10.13 软管总成 Hose ass’y 1
6 Z60H.10-6 波纹管 Hose 1
7 B-J088700-00020 喉箍d90 Clamp 4
8 Z60H.10.1 油泵进油管 Tube 1
9 B-G057820-00058 螺栓M12×95 ZnD Bolt 4
10 B-G000930-00003 垫圈12 Washer 19
11 B-Q020710-00085 O形圈65×3.1 O-ring 1
12 Z60H.10.4 接头体 Joint body 1
13 B-Q020710-00006 O形圈11×1.9 O-ring 16
14 Z60F.10-8 连接板 Plate 1
15 Z60F.10-3 橡胶垫 Rubber pad 4
16 Z60F.10-4 板 Plate 2
17 Z60F.10-5 套管 Sleeve tube 4
18 B-G057820-00165 螺栓M8×60 ZnD Bolt 4
19 B-G00097B-00023 垫圈8ZnD Washer 4
20 B-G000930-00017 垫圈8 Washer 8
21 B-G057830-00139 螺栓M8×20 ZnD Bolt 4
22 B-G061700-00036 螺母M8 ZnD Nut 4
23 W-16-00270 软管总成F481CACE101005-420 Hose ass’y 1
24 W-16-00266 软管总成F481CACA101005-800 Hose joint 1
25 W-16-00265 软管总成F481CACA101005-700 Hose joint 1
26 Z60H.10-1 接头体 Joint body 4
27 B-J010020-00006 垫圈20 Washer 4
28 W-16-00268 软管总成F481CACF101005-1400 Hose ass’y 1
29 W-16-00269 软管总成F481CACF101005-1800 1
30 Z60H.10-4 接头体 Joint body 1

31 B-J010020-00003 垫圈14 Washer 3
32 W-07-00051 流量放大阀ZLF25A11 Magnify valve 1
33 B-G057820-00027 螺栓M12×105 ZnD Bolt 3
34 Z60F.10-14 接头体 Joint body 1
35 B-G057820-00025 螺栓M10×85-10.9ZnD Bolt 4
36 B-G000930-00001 垫圈10 Washer 56
37 B-Q020710-00063 O形圈40×3.5 O-ring 3
38 Z60H.10.6 软管总成 Hose ass’y 1
39 B-Q020140-00002 分离式法兰AФ38.9/35 Parting flange 12
40 B-G057830-00011 螺栓M10×35－10.9ZnD Bolt 20
41 B-Q020710-00060 O形圈38×3.5 O-ring 2
42 Z60H.10.7 接头体 Joint body 1
43 B-J009990-00003 螺栓M14×1.5×35 Bolt 1
44 Z60F.10-13 连接板 Coupling plate 1
45 B-G057830-00006 螺栓M10×25 ZnD Bolt 12
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60 B-Q020120-00004B-G061760-00001
B-Q020490-00001ZZ60H.10.9
Z60H.10.10
Z60F.10.14
B-G057830-00034B-Q020710-00071
Z60F.10.13
W-16-00272
B-Q020710-00028
W-16-00273
Z60H.10.8
W-19-00010
B-G057830-00010 U形管夹A34
螺母M10×1.25ZnD
垫圈10
油管
油管
放大阀进油管
螺栓M12×30 ZnD
O形圈48×3.5
放大阀回油管
软管总成F381CACA181810-500
O形圈20×2.4
软管总成F381CACA181810-600
左转向油缸
全液压转向器BZZ3-100
螺栓M10×30 ZnD U clip
Nut
Washer
Oil tube
Oil tube
Tube
Bolt
O-ring
Tube
Hose joint
O-ring
Hose joint
Left cylinder
Steering gear
Bolt 5
10
10
1
1
1
8
3
1
2
8
2
1
1
4

61 W-16-00271 软管总成F481CACE101005-450 Hose ass’y 1
62 Z60F.10-2 连接板 Plate 1
63 Z60F.10-12 连接板 Plate 1
64 W-07-00058 限位阀XF-B6 Valve 2
65 B-G057820-00016 螺栓M10×55 ZnD Bolt 8
66 W-16-00513 软管总成F48111515161616-1150 Hose ass’y 1
67 Z60H.10-2 接头体 Joint body 5
68 Z60F.10-7 O形圈 O-ring 6
69 W-16-00267 软管总成F481CACF101005-450 Hose ass’y 1
70 Z60F.10-15 连接板 Plate 1
71 B-G057830-00030 螺栓M12×25 ZnD Bolt 4
72 Z60H.10.5 右转向油缸 Right cylinder 1
73 Z60H.10.3 油管 Oil tube 1
74 Z60F.10-11 连接板 Plate 1
75 W-16-00512 软管总成F48111515161616-1050 Hose ass’y 1
76
77
78
79
80
81
82
83
84
85
86
87
88

Z60H.10.2
B-G057830-00036
W-01-00089
Z60H.10-3
B-G008980-00018 B-G061700-00007
B-G00097B-00004W-16-00135
W-19-00001
B-G061710-00010
Z60H.10-7
Z60H.10-5
W-15-00105 油泵出油管
螺M12×35-10.9ZnD
齿轮油泵P257-G70467ZAC6/P124-G30ING
纸垫
螺M12×40-10.9ZnD
螺母M12ZnD
垫圈12ZnD
软管总成F481CACA101005-500
方向盘TCM-2
螺母M16×1.5ZnD
接头体
垫片
O形圈2-219N552-90 Tube
Bolt
Gear pump
Paper pad
Bolt
Washer
Washer
Hose joint
Steering wheel
Nut
Joint body
Pad
O-ring 1
4
1
1
4
2
2
1
1
1
1
1
4
