Description

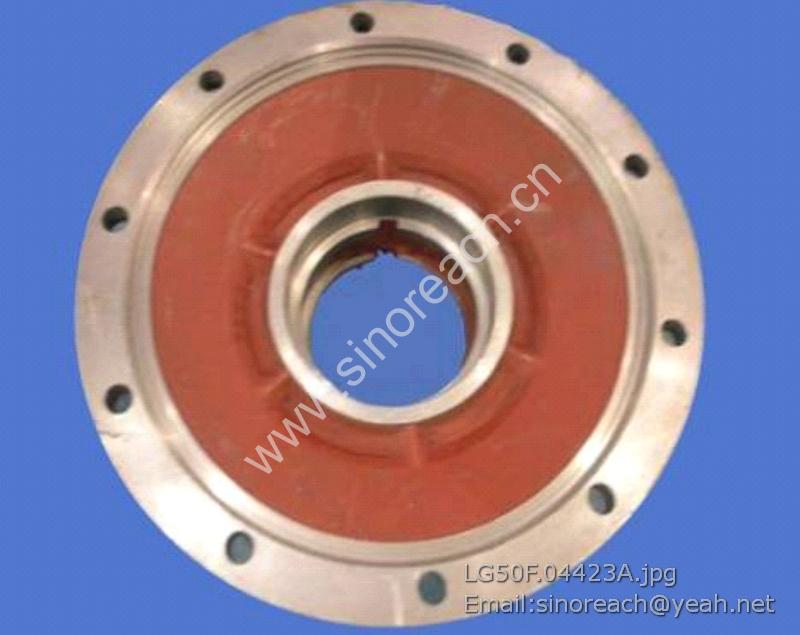

LG50F.04423A Hub for LONKING part

1 LG856.11.01 铲斗 Bucket 1
2 LG853.11.02 拉杆 Pull rod 1
3 LG855.11.03 动臂 Lift arm 1 LG855.11300A
4 LG853.11.04 摇臂 Tilt arm 1
5 LG853.11-001 动臂上轴套 Lift arm upper shaft sleeve 2
6 JB/T7940.1-1995 油杯 M10×1 Oil cup M10×1 8
7 LG855.11.05 动臂缸上销轴焊合 Lift cylinder upper pin weldment 2 LG50F.11017-018
8 GB/T5783 螺栓 M24×35 Bolt M24×35 1
9 GB/T93 垫圈 24 Washer 24 1
10 GB/T97.1 垫圈 24 Washer 24 1
11 GB9877.1-88(B 型) 油封 120×150×12 Oil seal 120×150×12 2
12 LG853.11-002 摇臂中轴套 Tilt arm middle shaft sleeve 2
13 LG853.11.06 摇臂中销轴焊合 Tilt arm middle pin weldment 1
14 LG853.11-004 拉杆轴套 Pull rod sleeve 2
15 GB/T93 垫圈 20 Washer 20 7
16 GB/T97.1 垫圈 20 Washer 20 7
17 GB/T5783 螺栓 M20×35 Bolt M20×35 7
18 LG853.11-005 O 型密封圈 O-ring 8
19 LG855.11.06 铲斗下销轴焊合 Bucket lower pin weldment 2 LG50F.11001-002
20 LG853.11-003 动臂下轴套 Lift arm lower shaft sleeve 4
21 LG853.11.07 铲斗上销轴焊合 Bucket upper pin weldment 3
22 LG856.11.01-002 齿套 Tooth sleeve 8

23 LG856.11.01-004 销 Pin 8
24 LG856.11.01-005 挡圈 Sprag 8
