Description

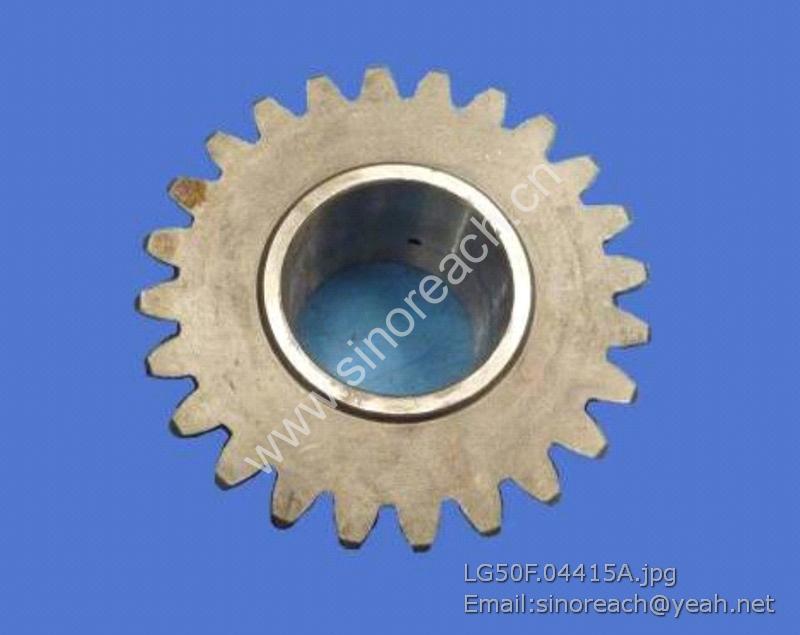

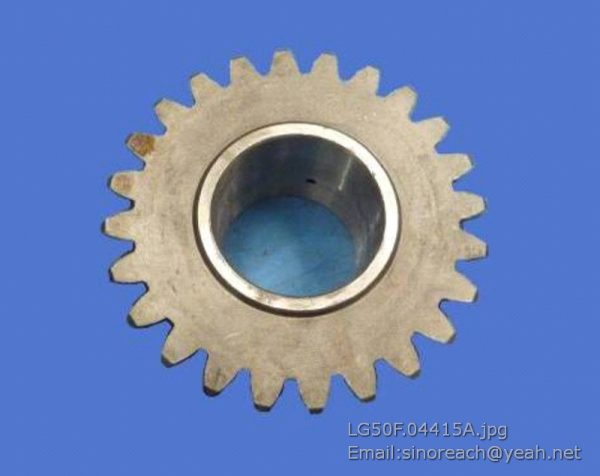

LG50F.04415A Planet gear for LONKING part
19 LG50EX.09-002 手控制动阀进气接头 Manual control brake valve air inlet
connector
1 LG50F.09001A
20 LG856.09-001 制动气室进气接头 Brake air chamber inlet connector
1 LG856.10Ⅱ.01 前车架 Front frame 1
2 GB/T5783 螺栓 M10×20 Bolt M10×20 4
3 GB/T93 垫圈 10 Washer 10 4
4 LG855.10-001 盖板 Cover board 1 LG855.10001A
5 LG855.10.04 翻斗缸后销轴焊合 Tilt cylinder rear pin weldment 1 LG50F.10002-003A
6 JB/T7940.1-1995 油杯 M10×1 Oil cup M10×1 11 GB/T1152
7 GB/T5783 螺栓 M20×30 Bolt M20×30 9
8 GB/T93 垫圈 20 Washer 20 9
9 GB/T97.1 垫圈 20 Washer 20 7
10 LG855.10.05 动臂上销轴焊合 Lift arm upper pin weldment 2 LG50F.10005-005A
11 LG855.10.06 动臂缸后销轴焊合 Lift cylinder rear pin weldment 2 LG50F.10007-008A
12 LG855.10.07 后转向销轴焊合 Rear steering pin weldment 2 LG50F.10011-012A
13 LG855.10-002 转向缸后垫套 Steering cylinder rear tray 2 LG50F.10013A
14 GB/T5783 螺栓 M16×35 Bolt M16×35 4
15 GB/T93 垫圈 16 Washer 16 12
16 LG855.10.08 油箱固定座 Oil tank bracket 2 LG50E.10001-002A
17 LG856.10Ⅰ.02 后车架 Rear frame 1
LG856.10.02 后车架 Rear frame 1
18 LG855.10-003 双变滤清器支架 Oil filter bracket 1 510009C
19 LG855.10.03 副车架 Oscillating suspension 1 LG50F.10300B
20 LG853.10-018 挡块 Block 8 410002B
21 LG855.10-004 铜垫 Copper pad 2 LG50F.10035A
22 LG855.10.09 副车架销 Oscillating suspension pin 2 LG50F.10033-034A
23 LG855.10.10 副车架注油管 1
Oscillating suspension oil filling
pipe 1
1 LG50F.10042-042A
24 GB/T5782 螺栓 M12×110 Bolt M12×110 8
25 GB/T93 垫圈 12 Washer 12 22
26 GB/T6170 螺母 M12 Nut M12 8
27 GB/T297-1994 轴承 32215 Bearing 32215 4 GB297-84 7515E
28 LG853.10-008 端盖 End cover 1 510014C
29 LG853.10-007 铰接销 Articulating pin 2 510012C
30 LG853.10-006 压板 Press plate 2 510011C
31 GB/T13871-1992 FB 形油封 75×100×12 FB-type seal 75×100×12 2
32 LG853.10-005 上轴承盖 Upper bearing cover 2 510013C
33 LG853.10-004 下轴承盖 Lower bearing cover 2 510015C
34 LG853.10-003 调整垫 Adjusting spacer 2sets 510018C
35 LG853.10-001 上轴套 Upper shaft sleeve 1 LG50F.10020A
36 LG853.10-002 下轴套 Lower shaft sleeve 1 510017C
37 GB/T13871-1992 FB 形油封 85×110×12 FB-type seal 85×110×12 2
38 GB/T5783 螺栓 M12×30 Bolt M12×30 14
39 LG855.10.11 前转向销轴焊合 Front steering pin weldment 2 LG50F.10015-016A
40 LG855.10.12 右前转向销注油管 Right front steering pin oil filling
pipe 1 LG50F.10018-018A
41 LG855.10.13 左前转向销注油管 Left front steering pin filling pipe 1
42 LG855.10-006 调整垫圈 Adjusting washer 1set
43 JB/T7940.2-1995 油杯 M10×1 Oil cup M10×1 2 GB/T1153
44 GB/T5783 螺栓 M16×50 Bolt M16×50 4
45 LG855.10.14 副车架注油管 2
Oscillating suspension oil filling
pipe 2
1 LG50F.10041-041A
46 LG855.10-007 副车架销轴套 Oscillating suspension pin sleeve 2 LG50F.10032A
47 LG853.01-005 线夹 Wiring clip 2 LG50D.15008B
48 GB/T5783 螺栓 M8×20 Bolt M8×20 3
49 GB/T93 垫圈 8 Washer 8 3
50 GB/T97.1 垫圈 8 Washer 8 3
51 LG853.10-022 下端盖 Lower end cover 1
