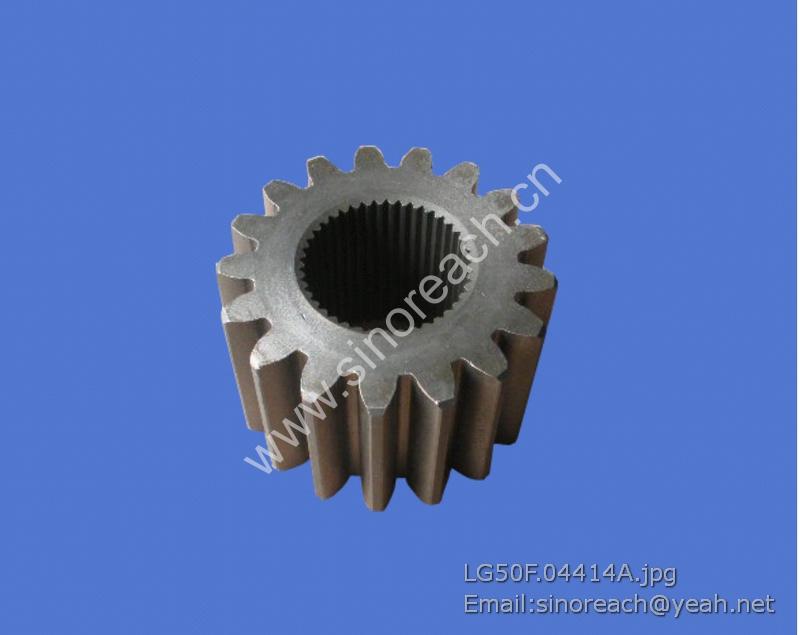

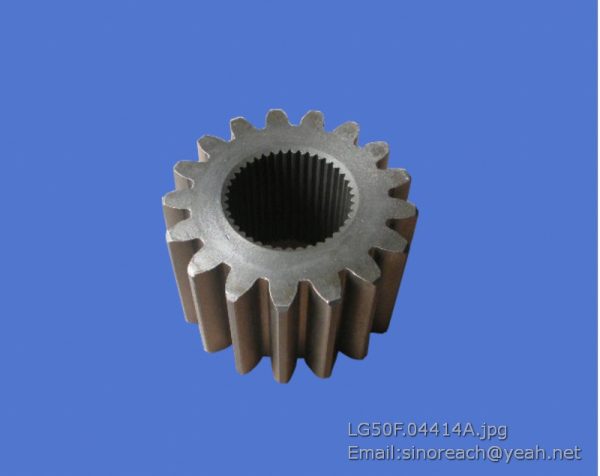

LG50F.04414A Sun gear for LONKING part
23 GB/T 6170 螺母 M12 Nut M12 2
24 LG853.08.07 压缩机出气管 Compressor air outlet pipe 1
25 LG856.08.01 储气筒总成 Air tank assembly 1
26 LG856.08.03 反冲储气筒 Recoil air tank 1 HP-3511CB-18
27 LG853.08.12 气压表接管 Pressure gauge connecting pipe 1 1300
28 LG856.08-001 四回路保护阀出气接头 Four-circuit protecting valve outlet
connector
2
29 LG856.08.04 四回路保护阀 Four-circuit protecting valve 1 HP3518
30 GB/T 5783 螺栓 M8×20 Bolt M8×20 7
31 GB/T 93 垫圈 8 Washer 8 5
32 GB/T 97.1 垫圈 8 Washer 8 5
33 GB/T 5783 螺栓 M10×20 Bolt M10×20 8
34 GB/T 93 垫圈 10 Washer 10 8
35 GB/T 97.1 垫圈 10 Washer 10 8
36 LG853.01-005 管夹 Pipe clip 3
37 GB/T 5783 螺栓 M6×16 Bolt M6×16 3
38 GB/T 93 垫圈 6 Washer 6 3
39 LG853.08.05 前桥油管 Front axle pipe 2
40 90C-C/8I-L=2400 保护阀至右气筒胶管 Hose from protecting valve to right air
tank 1
41 90C-C/8I-L=2700 保护阀至左气筒胶管 Hose from protecting valve to left air
tank 1
42 90C-90°-90C/8I-L=450 干燥器至保护阀胶管 Hose from dryer to protecting valve 1
43 LG856.08-003 干燥器铰接螺栓 Dryer articulating bolt 1
44 20791-18-05/20711-18
-05XJS8XL1600 空压机至干燥器钢丝软管 Hose from air compressor to dryer 1
45 LG856.08.05 干燥器 Dryer 1 HP3511
46 LG856.08.06 干燥器支架 Dryer bracket 1
47 90C-C/8I-L=2000 干燥器至反冲气筒胶管 From dryer to recoil air tank 1
48 LG856.08-004 堵头 Stopper 1
49 JB1002 铜垫 16 Copper pad 16 3
50 LG856.08-005 反充气筒固定板 Recoil air tank fixing board 1
1 LG50EX.09.02 驻车制动气室 Parking brake air chamber 1 QZ50-3507001
2 LG50EX.09.04 驻车制动气室固定座 Parking brake air chamber fixing
bracket 1 LG50F.09007-008A
3 GB5783 螺栓 M16×45 Bolt M16×45 2
4 GB/T97.1 垫圈 10 Washer 10 2
5 GB/T 93 垫圈 10 Washer 10 2
6 90C-C/8I-L=1800 手控动阀至驻车制动气室
胶管
Hose from manual control brake valve to
parking brake air chamber 1
7 LG856.09.02 手控制动阀 Manual control brake valve 1 QZ50
8 90C-C/8I-L=1400 手控制动阀至切断气缸胶
管
Hose from manual control brake valve to
cutoff cylinder 1
9 LG856.08-001 四回路保护阀出气接头 Four-circuit protecting valve outlet
connector
1
10 JB1002 垫圈 16 Washer 16 1
11 LG853.08-013 接头 Connector 2
12 JB1002 垫圈 22 Washer 22 2
13 LG856.09.01 驻车制动储气筒总成 Parking brake air tank assembly 1
14 C/8I-L=3400 四回路保护阀至手制动气
筒胶管
Hose from protecting valve to parking
brake air tank 1
15 C/8I-L=3200 手制动气筒至手控阀胶管 Hose from parking brake air tank to
manual control valve 1
16 LG50EX.09.03 XZ 切断气缸 XZ cutoff cylinder 1
17 LG50EX.09-001 手控制动阀出气接头 Hand control brake valve air outlet
connector
2 LG50F.09002A
18 LG50EX.09-003 切断气缸进气接头 Cutoff cylinder air inlet connector 2 LG50F.09003A
