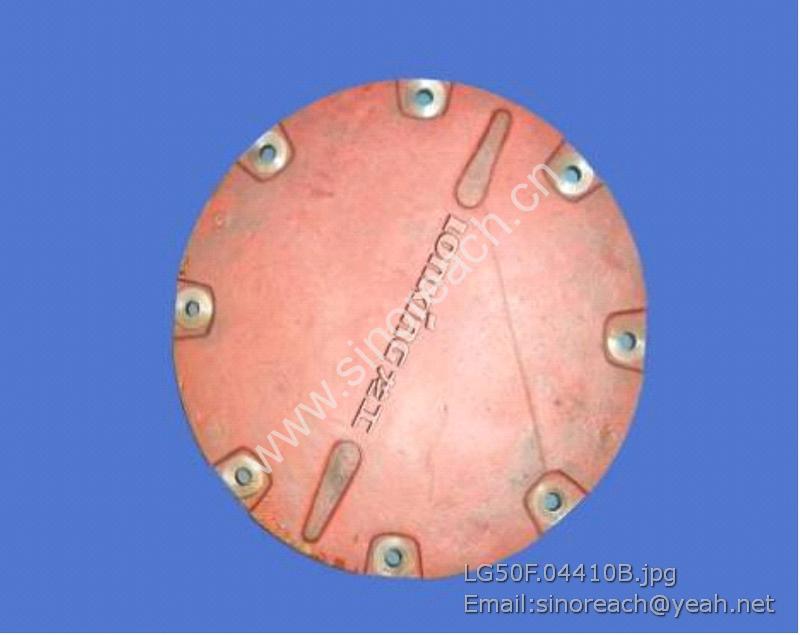

LG50F.04410B Spindle end cover for LONKING part
43 45F(32)-270 ° -90F
(32) /25/28-2S-L500 工作泵出油胶管 Implement pump oil outlet hose 1
44 LG855.07.10 工作泵出油钢管 Implement pump oil outlet pipe 1 LG50F.07017-018A
45 H-H/38/42-I-L575 回油胶管 Oil return hose 1
46 LG855.07.11 后车架回油过渡接头 Rear frame oil return transition
connector
1 LG50F.07034-034A
47 LG50EX.07.05 前车架进油过渡接头 Front frame oil inlet transition
connector
1 LG50F.07036-036B
48 GB/T5782 螺栓 M12×180 Bolt M12×180 3
49 LG50EX.07.06 分 配 阀 动 臂 联 后 腔 钢 管
(一)
Pipe from distribution valve to lift
arm rear chamber Ⅰ
1 LG50F.07010-011A
50 LG50EX.07.07 分 配 阀 动 臂 联 前 腔 钢 管
(一)
Pipe from distribution valve to lift
arm front chamber Ⅰ
1 LG50F.07006-008A
51 LG50EX.07-001 压板 Press plate 1 LG50F.07016A
52 GB/T5783 螺栓 M12×45 Bolt M12×45 4
53 GB1235-76 O 形圈 50×3.1 O-ring 50×3.1 2
54 GB/T5782 螺栓 M10×60 Bolt M10×60 8
55 GB/T6170 螺母 M10 Nut M10 8
56 LG50EX.07-005 管夹 Pipe clip 4
57 LG50EX.07.13 动臂钢管固定板 Lift arm pipe fixing board 1
58 LG50EX.07.08 分 配 阀 动 臂 联 后 腔 钢 管
(二)
Pipe from distribution valve to lift
arm rear chamber Ⅱ
1 LG50F.07012-012A
59 LG50EX.07.09 分 配 阀 动 臂 联 前 腔 钢 管
(二)
Pipe from distribution valve to lift
arm front chamber Ⅱ
1 LG50F.07009-009A
60 LG855.07-003 管夹 Pipe clip 1
61 GB/T5783 螺栓 M8×30 Bolt M8×30 2
62 GB/T5783 螺栓 M10×30 Bolt M10×30 2
63 LG855.07II.02 动臂油缸 Lift cylinder 2
64 LG50EX.07.14 动臂钢管固定板 Lift arm pipe fixing board 1
65 LG50EX.07.10 分配阀回油钢管 Distribution valve oil return hose 1 LG50F.07015-015B
67 LG856.07.11 先导操纵系统 Pilot control system 1
68 90F(38)-H/32/34-4S-L
800 分配阀进油胶管 Distribution valve oil inlet hose 1
69 GB/T3452.1-1992 O 形圈 58×3.55 O-ring 58×3.55 1
70 LG856.07I.03 液压系统回油钢管 Hydraulic system oil return pipe 1
LG50F.07019-020A
71 LG853.07-001 压板 Press plate 1 LG50F.07037A
72 LG856.07I.04 工作泵进油钢管 Implement pump oil inlet pipe 1 LG50EX.07.01
73 GB/T3452.1-1992 O 形圈 58×3.55 O-ring 58×3.55 1
74 GB/T5782 螺栓 M12×85 Bolt M12×85 4
75 GB/T5782 螺栓 M8×130 Bolt M8×130 4
76 LG50EX.07-003 管夹 Pipe clip 1 LG50F.07025A
77 LG50EX.07-004 管夹 Pipe clip 2 LG50F.07026A
78 LG855.07-006 管夹压板 Pipe clip press plate 4
79 LG50EX.07.16 分配阀至转斗缸胶管固定
架
Hose from distribution valve to tilt
cylinder fixing bracket 1
80 GB/T5783 螺栓 M10×35 Bolt M10×35 40
81 GB/T5783 螺栓 M12×35 Bolt M12×35 4
1 LG853.08.04 进油管 Oil inlet pipe 4
2 LG853.08.03 前加力泵出油管 Front booster pump oil outlet pipe 2
3 LG853.08-004 联接螺栓 Connecting bolt 10
4 LG853.08-005 垫圈 Washer 22
5 LG856.08.02 加力泵 Booster pump 2 LG-ZL50C
6 90C-C/8I-L=2300 制动阀至前加力泵胶管 Hose from brake valve to front booster
pump
1
7 LG856.08.07 双腔气制动阀 Double chamber air brake valve 1 HP3514B
8 JB1002 铜垫 22 Copper pad 22 16
9 LG853.08-007 测压接头座 Pressure measuring connector bracket 1
10 C/8I-L=3600 制动阀至右储气筒胶管 Hose from brake valve to right air tank 1
11 C/8I-L=3300 制动阀至左储气筒胶管 Hose from brake valve to left air tank 1
12 90C-C/8I-L=1400 制动阀至后加力泵胶管 Hose from brake valve to rear booster pump 1
13 LG853.08.06 后桥油管 Rear axle oil pipe 2
14 LG853.08.11 制动软管 Brake hose 1
15 GB/T 5783 螺栓 M16×25 Bolt M16×25 1
16 GB/T93 垫圈 16 Washer 16 1
17 GB/T 97.1 垫圈 16 Washer 16 1
18 LG853.08-015 空压机出气管支架 Air compressor outlet pipe bracket 1 508009C-Ⅱ
19 LG853.08-003 管夹 φ12 Pipe clip φ12 1
20 GB/T 5783 螺栓 M12×25 Bolt M12×25 11
21 GB/T 93 垫圈 12 Washer 12 13
22 GB/T 97.1 垫圈 12 Washer 12 13
