Description

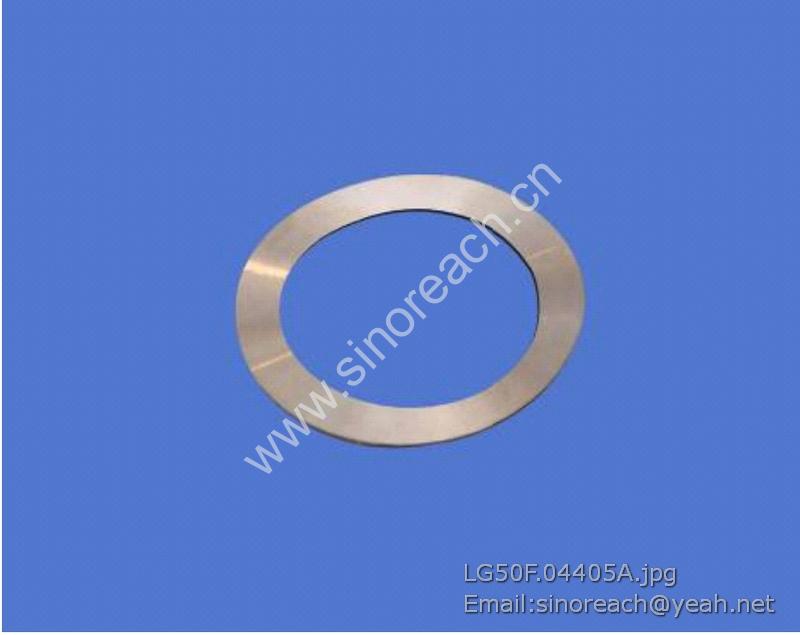

LG50F.04405A Spacer for LONKING PART

1 LG855.05.01 变速操纵总成 Speed control assembly 1 LG50E.05000
2 LG855.05.02 工作操纵总成 Implement control assembly 1 LG50E.07600A

1 LG855.05.01.01 变速操纵软轴 Speed control flexible shaft 1
2 GB/T5783 螺栓 M10×25 Bolt M10×25 1
3 GB/T93 垫圈 10 Washer 10 4
4 GB/T97.1 垫圈 10 Washer 10 4
5 LG853.05.01-002 变速软轴固定板 Speed control flexible shaft securing
plate 1
6 LG853.05.01-001 锁紧块 Lock block 1
7 GB/T5783 螺栓 M8×45 Bolt M8×45 2
8 GB/T93 垫圈 8 Washer 8 2
9 LG853.05.01-002 变速软轴固定块 Speed control flexible shaft securing
block 1
10 GB/T5782 螺栓 M6×35 Bolt M6×35 2
11 GB/T93 垫圈 6 Washer 6 2

1 LG853.05.02-001 叉形接头 Fork connector 2
2 LG853.05.02-002 固定支板 Securing plate 1
3 LG855.05.02.01 操纵软轴 Control flexible shaft 2 LG50E.07602A
4 GB/T5783 螺栓 M10×30 Bolt M10×30 7
5 GB/T6170 螺母 M10 Nut M10 3
6 GB 882 销轴 B 型 8×28 Pin (B type) 8×28 2
7 GB/T97.1 垫圈 8 Washer 8 2
8 GB/T91 开口销 3.2×30 Split pin 3.2×30 2
9 LG853.05.02-003 叉形接头 Fork connector 2
10 GB/T97.1 垫圈 10 Washer 10 13
11 LG853.05.02.02 固定架 Fixing bracket 1
12 LG853.05.02-004 铰轴座 Cardinal axis bracket 2
13 LG853.05.02-005 铰轴套 Cardinal axis sleeve 2
14 GB/T5783 螺栓 M10×35 Bolt M10×35 2
15 GB/T96 垫圈 10 Washer 10 3
16 GB/T93 垫圈 8 Washer 8 4
17 LG853.05.02-006 紧定螺钉 Set screw 4
18 LG853.05.02-007 轴座 Shaft bracket 1
19 LG853.05.02-008 挡圈 Sprag 2
20 GB/T93 垫圈 10 Washer 10 13
21 GB/T5783 螺栓 M10×20 Bolt M10×20 4
22 LG853.05.02-009 衬套 bush 2

23 LG853.05.02-010 轴 Shaft 1
24 LG855.05.02.02 操纵杆总成 Control rod assembly 2 LG50E.07601-601A
25 LG853.05.02-011 方胶木球 M12×32 Bakelite ball M12×32 2
