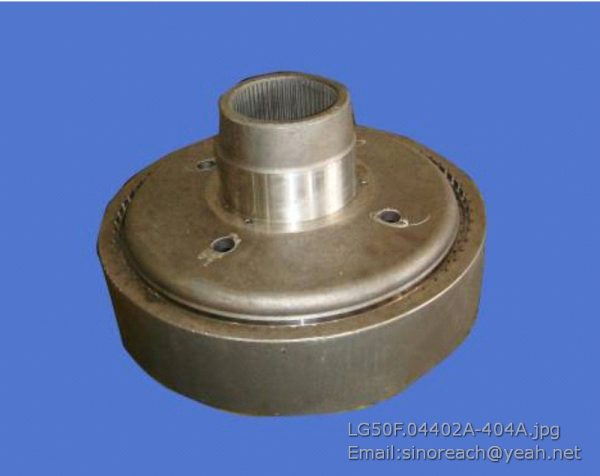

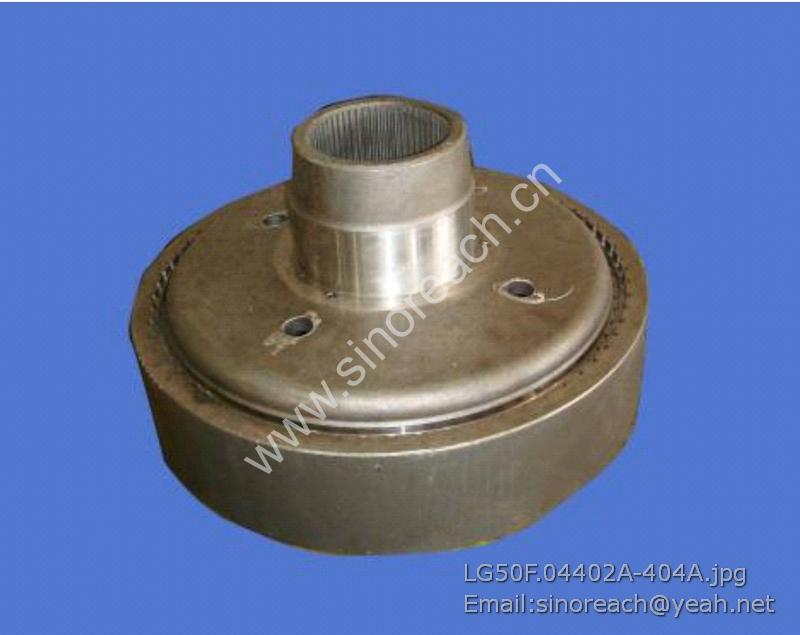

LG50F.04402A-404A Ring gear assembly for LONKING part

1 LG50EX.04.01 前驱动桥总成 Front axle assembly 1
2 GB/T5786 螺栓 M12×1.5×40 Bolt M12×1.5×40 32
3 GB/T889.1 螺母 M12×1.5 Nut M12×1.5 32
4 LG853.04-001 定位圈 Nest 3 LG50F.04001A
5 LG856.04.02 前传动轴总成 Front drive shaft assembly 1 LG50F.04201A
6 GB/T5783 螺栓 M16×40 Bolt M16×40 4
7 GB/T97.1 垫圈 16 Washer 16 4
8 GB/T93 垫圈 16 Washer 16 4
9 LG855.04.03 中/后传动轴总成 Intermediate/rear drive shaft assembly 2 LG50F.04203A
10 GB/T5786 螺栓 M12×1.5×30 Bolt M12×1.5×30 8
11 GB/T93 垫圈 12 Washer 12 8
12 LG50EX.04.05 后驱动桥总成 Rear axle assembly 1 LG50F.04000
13 LG853.04.05 轮辋总成 Rim assembly 4
14 GB/T2980 轮胎 23.5-25 E-3 Tire 23.5-25 E-3 4
15 GB/T5784 螺栓 M30×2×145-10.9 Bolt M30×2×145-10.9 8
16 GB/T889.1 螺母 M30×2 Nut M30×2 16
17 GB/T5784 螺栓 M30×2×120-10.9 Bolt M30×2×120-10.9 8

1 ZL50EX.04.01.01 轮边减速器总成 Reducer assembly 2 LG50F.04400A
2 ZL50EX.04.01.02 前后桥壳总成 Front and rear axle housing assembly 1 LG50F.04500A
3 ZL50EX.04.01.03 主减速器总成 Master reducer assembly 1 LG50F.04300A
4 LG853.04.01.04 透气管 Vent pipe 1 404002
5 GB6173-86 螺母 M10×1-6 Nut M10×1-6 1
6 ZL50EX.04.01-001 半轴 Axle shaft 2 LG50F.04002A
7 LG853.04.01.03 钳盘式制动器总成 Disc brake assembly 4 408100
8 ZL50EX.04.01-002 轮辋螺母 Rim nut 20 LG50F.04003A
9 LG853.04.01-023 螺塞 Plug screw 2
10 GB93-87 垫圈 14 Washer 14 14
11 GB5785-86 螺栓 M14×1.5×55-10.9 Bolt M14×1.5×55-10.9 2
12 GB5785-86 螺栓 M14×1.5×60-10.9 Bolt M14×1.5×60-10.9 2
13 GB5786-86 螺栓 M14×1.5×35-10.9 Bolt M14×1.5×35-10.9 10
14 GB/T119-1986 销 A12×20 Pin A12×20 3
15 LG853.04.01-020 螺栓 M20×1.5×56 Bolt M20×1.5×56 16 408120
16 GB93-87 垫圈 20 Washer 20 16
17 LG853.04.01.03.02 刹车片 Brake disc 8 408107-108
18 GB93-87 垫圈 10 Washer 10 8
19 LG853.04.01.03-011 螺栓销 Bolt pin 8 408114

1 ZL50EX.04.01.01 轮边减速器总成 Reducer assembly 2 LG50F.04400A
2 ZL50EX.04.01.02 前后桥壳总成 Front and rear axle housing assembly 1 LG50F.04500A
3 ZL50EX.04.05.01 主减速器总成 Master reducer assembly 1 LG50F.04300A
4 LG853.04.01.04 透气管 Vent pipe 1 404002
5 GB6173-86 螺母 M10×1-6 Nut M10×1-6 1
6 ZL50EX.04.01-001 半轴 Axle shaft 2 LG50F.04002A
7 LG853.04.01.03 钳盘式制动器总成 Disc brake assembly 4 408100
8 ZL50EX.04.01-002 轮辋螺母 Rim nut 20 LG50F.04003A
9 LG853.04.01-023 螺塞 Plug screw 2
10 GB93-87 垫圈 14 Washer 14 14
11 GB5785-86 螺栓 M14×1.5×55-10.9 Bolt M14×1.5×55-10.9 2
12 GB5785-86 螺栓 M14×1.5×60-10.9 Bolt M14×1.5×60-10.9 2
13 GB5786-86 螺栓 M14×1.5×35-10.9 Bolt M14×1.5×35-10.9 10
14 GB/T119-1986 销 A12×20 Pin A12×20 3
15 LG853.04.01-020 螺栓 M20×1.5×56 Bolt M20×1.5×56 16 408120
16 GB93-87 垫圈 20 Washer 20 16
17 LG853.04.01.03.02 刹车片 Brake disc 8 408107-108
18 GB93-87 垫圈 10 Washer 10 8
19 LG853.04.01.03-011 螺栓销 Bolt pin 8 408114
