Description

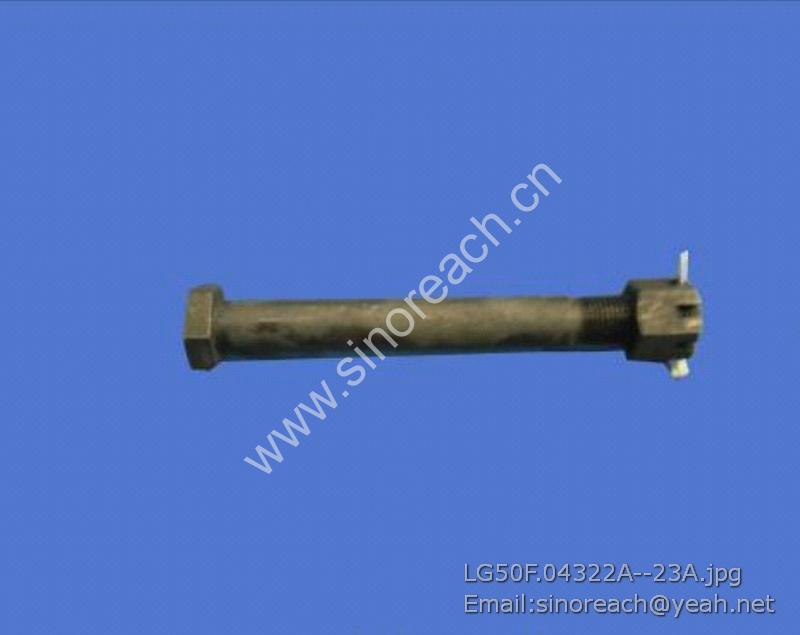

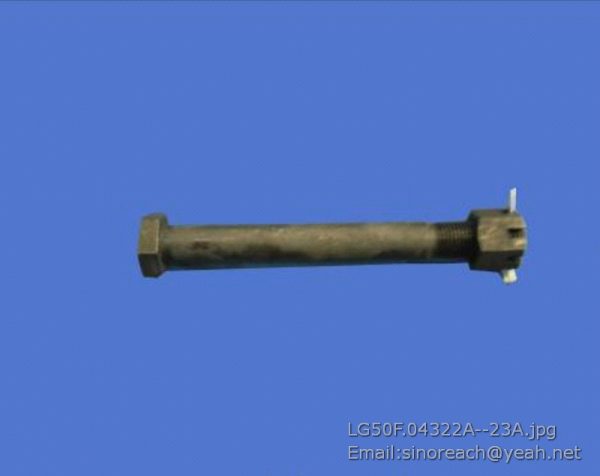

LG50F.04322A LG50F.04323A Differential bolt and nut for LONKING spare part

1 LG853.02.01-001 机芯总成 Core assembly 1 402000-1
2 LG853.02.01-012 衬垫 Gasket 1 402215
3 LG853.02.01-013 观察盖 Observing cover 1 402214A
4 LG853.02.01-002 变矩器壳体 Torque converter body case 1 402216
5 JB/T8547-97 金属密封环 YH×125 Metal seal ring YH×125 1
6 GB/T5782 螺栓 M10×25 Bolt M10×25 9
7 GB/T93 垫圈 10 Washer 10 9
8 LG853.02.01-003 导轮座 Guide wheel bracket 1 402222
9 LG853.02.01-004 铜垫圈 Copper washer 2 402106
10 管接头 Pipe connector 2 402111A
11 LG853.02.01-007 弹簧Ⅰ Spring Ⅰ 1 402229
12 LG853.02.01-008 进口阀芯 Inlet valve core 1 402233
13 LG853.02.01-006 阀盖 Valve cover 1 402228A
14 LG853.02.01-011 螺塞 Z3/4〞 Plug screw Z3/4〞 1 402223
15 GB/T5781 螺栓 M8×20 Bolt M8×20 2
16 GB/T93 垫圈 8 Washer 8 8
17 GB/T5781 螺栓 M8×16 Bolt M8×16 6
18 LG853.02.01-015 出口阀芯 Outlet valve core 1 402234
19 LG853.02.01-010 弹簧Ⅱ Spring Ⅱ 1 402231A
20 LG853.02.01-009 盖板 Cover board 1 402230A
21 LG853.02.01-014 回油接头 Oil return connector 1 402204

1 LG853.02.02-001 铰接螺栓 Articulating bolt 2 402002A
2 JB1002-77 垫圈 27 Washer 27 5
3 LG853.02.02-002 接头体 Adapter 1 402014B
4 JB1002-77 垫圈 30 Washer 30 1
5 GB/T5783 螺栓 M8×35 Washer M8×35 2
6 GB/T6170 螺母 M8 Nut M8 2
7 GB/T93 垫圈 8 Washer 8 2
8 GB/T97.1 垫圈 8 Washer 8 4
9 LG855.02.02.01 双变滤油器 Oil filter 1 YFL-A400X25LS-G
10 LG855.02.02-001 接头体 Adapter 1 306016D
11 180H-270 °
-90H-25/28-Ⅰ-L1080 变矩器至滤油器胶管 Hose from torque converter to oil filter 1
12 90H-H/25/28-IIBZ-25/
18BG-L750 滤油器至变矩器胶管 Hose from oil filter to torque converter 1
13 90H-45Q/25/28- Ⅰ
-L2500 冷却器至变矩器胶管 Hose from cooler to torque converter 1
14 90H-330°-90Q/25/28-
Ⅰ-L2300 变矩器至冷却器胶管 Hose from torque converter to cooler 1

1 GB/T93 垫圈 18 Washer 18 4
2 GB/T6170 螺母 AM18 Nut AM18 2
3 LG853.03-001 弧形垫圈 Arc washer 2
4 LG853.03-002 橡胶垫 Rubber pad 2
5 GB/T5782 螺栓 M18×140 Bolt M18×140 2
6 LG856.03.01 变速箱总成 Transmission assembly 1
7 GB5783 螺栓 M10×25 Bolt M10×25 1
8 GB/T97.1 平垫 10 Washer 10 1
9 GB/T93 垫圈 10 Washer 10 1
