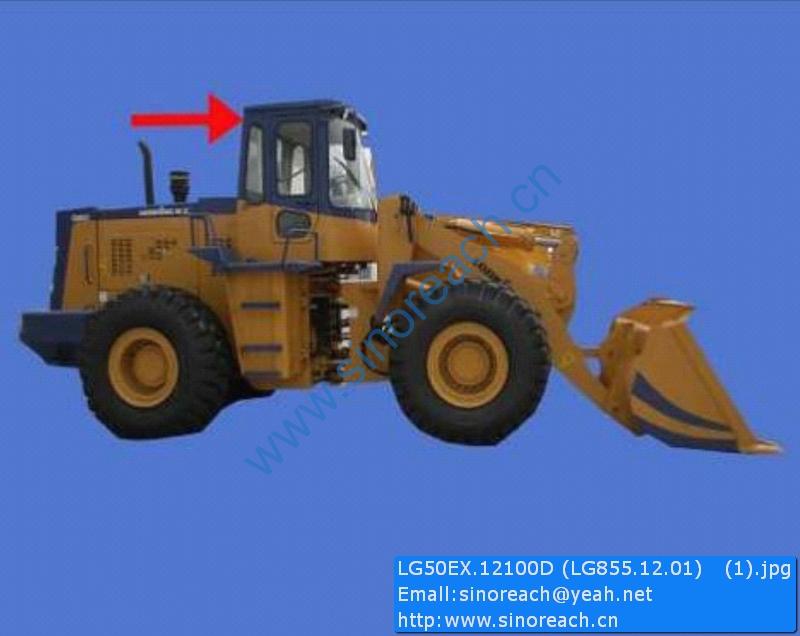

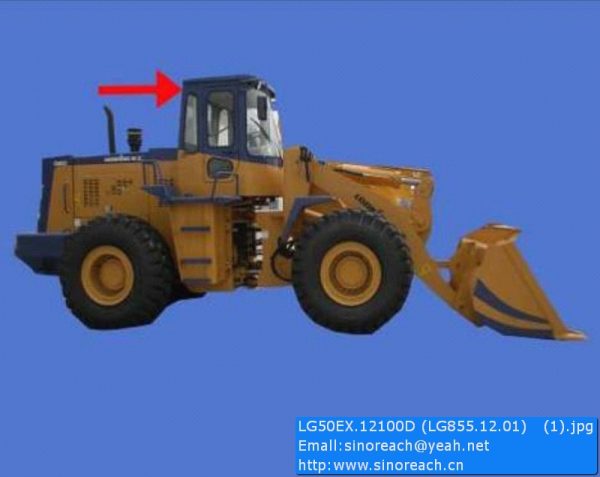

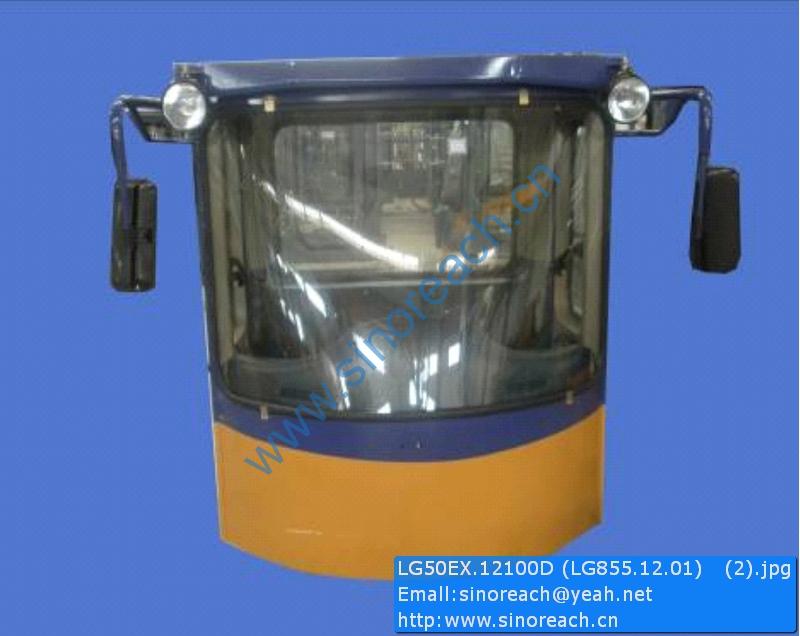

LG50EX.12100D LG855.12.01 Cab assembly 855 parts

1
CDM6210.73.01
BUCKET
铲斗本体
1
2
GB/T5782
BOLT M16×150
螺栓 M16×150
2
3
GB/T6170
NUT M16
螺母 M16
4
4
CDM6210.71.02
PIN ASSEMBLY
销轴总成
2
5
LG6230.15-09
ADJUST SHIMS
调整垫片
4
6
GB/T3452.1
O RING Φ145×10
O 形圈Φ145×10
4
7
GB/T6170
NUT M24
螺母 M24
8
8
GB/T1230
WASHER 24
垫圈 24
8
9
E200BL
LEFT CORNER TOOTH
左侧齿板
1
10
GB/T5782
BOLT M24×70
螺栓 M24×70
8
11
E200BR
RIGHT CORNER TOOTH
右侧齿板
1
12
GB/T5782
BOLT M16×150
螺栓 M16×150
1
13
SPRING-6230
SNAP RING
扣环
4
14
PIN-6230
PIN
销
4
15
1U3352RC
TOOTH SLEEVE
齿套
4

1
CDM6210.06.02.01
TILT ARM
摇臂本体
1
2
CDM6210.05-14
ANTIFRICTION WASHER II
减磨垫圈 II
2
3
VAY 80 95 4
DUST PROVE SEAL 80×95×4
防尘密封圈 80×95×4
8
4
CDM6210.06.02-02
STEEL SLEEVE Φ80×Φ95×80
钢套Φ80×Φ95×80
2
5
CDM6210.06.02.02
CONNECTION FRAME
连接架本体
1
6
CDM6210.06.02-01
TILT ARM PLATE
摇臂板
2
7
GB/T5782
BOLT M16×150
螺栓 M16×150
2
8
CDM6210.06.02-03
LINK ROD SHAFT
连杆轴
1
9
GB/T6170
NUT M16
螺母 M16
10
CDM6210.06.02-04
TILT ARM SHAFT
摇臂轴
1
11
VAY 70 85 4
DUST PROVE SEAL 70×85×4
防尘密封圈 70×85×4
2
12
CDM6210.06-01
STEEL SLEEVE Φ70×Φ85×70
钢套Φ70×Φ85×70
2
13
CDM6210.06-02
STEEL SLEEVE Φ80×Φ95×110
钢套Φ80×φ95×110
4
14
CDM6210.06.01
BUCKET ROD
斗杆本体
1
15
VAW09001
DUST PROVE SEAL 90×105×6
防尘密封圈 90×105×6
2
16
CDM6210.05-07
BEARING Φ90×Φ105×90
轴承Φ90×Φ105×90
2
17
PT1/8
OIL CUP
油杯
7
18
LG6230.15-05
ADJUST SHIMS
调整垫片
2
19
CDM6210.05-09
WASHER Φ82×12
垫圈Φ82×12
1
20
CDM6210.05.11
BUCKET ROD CYLINDER PIN ASSEMBLY
斗杆油缸销轴总成
1
21
CDM6210.05-08
SPRAG Φ22×5.5
挡圈Φ22×5.5
2
22
GB/T97.1
WASHER 20
垫圈 20
2
23
GB/T5783
BOLT M20×40
螺栓 M20×40
2
24
CDM6210.06.03
BUCKET CYLINDER PIN ASSEMBLY
铲斗油缸销轴
1
25
CDM6210.06-03
WASHER D72×14
垫圈 D72×14
1
