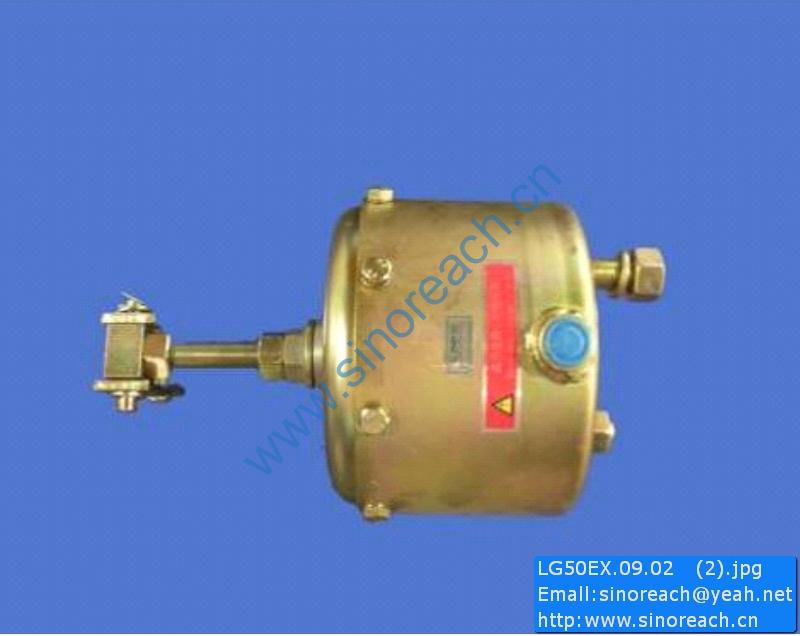

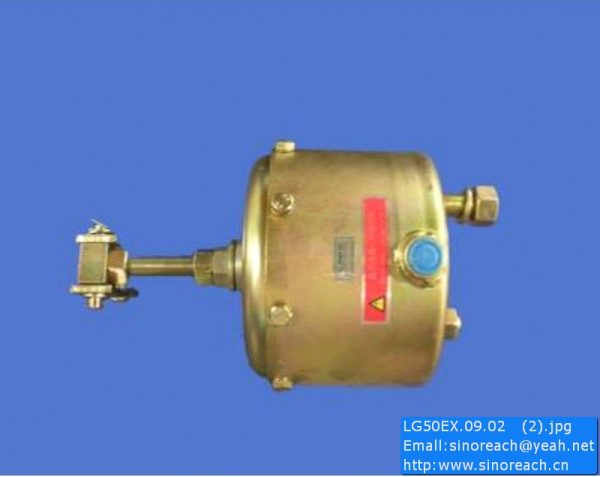

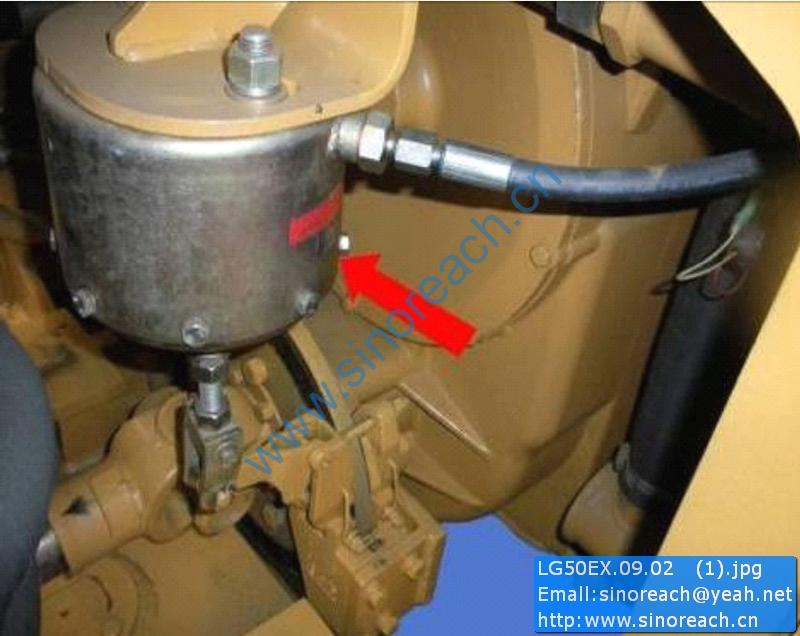

LG50EX.09.02 QZ50-3507001 Parking brake air chamber CDM855 CDM855E parts

1
GB/T5783
BOLT M8×18
螺栓 M8×18
6
2
GB/T97.1
WASHER 8
垫圈 8
6
3
CDM6210.12-01
COVER BOARD
盖板
1
4
GB/T3452.1
O RING Φ128×3.55
O 形圈Φ128×3.55
1
5
20T-12B10-01
OIL
FILL
COVER
AND
OIL
FILTER
ELEMENT
加油盖及滤芯
1
6
GB/T818
BOLT M5×14
螺钉 M5×14
5
7
GB/T97.1
WASHER 5
垫圈 5
5
8
224-011-000-060X
OIL LEVEL SENSOR
油位传感器
1
9
LS127-T-M10
HYDRAULIC
OIL
TEMPERATURE
AND
LEVEL INDICATOR
LTM127 液温液位计
1
10
CDM6210.12.03
FUEL TANK
燃油箱本体
1
11
CDM6210.12.06
FOOT PEDAL
踏脚
1
12
GB/T97.1
WASHER 12
垫圈 12
2
13
GB/T5783
BOLT M12×25
螺栓 M12×25
2
14
DM6210.12-04
ADJUST SHIMS
调整垫
1
GB/T97.1
WASHER 20
垫圈 20
4
15
GB/T5783
BOLT M20×40
螺栓 M20×40
4
16
9C-30
INTERNAL SCREW PLUG
内螺纹堵头
1
17
CDM6210.12-03A
BUTTERFLY VALVE
蝶形球阀
2
18
CDM6210.12-03
CONNECTER
接头
2

1
CDM6210.15.05
ENGINE HOOD
发动机罩
1
2
CDM6210.15.04
DOOR COMPONENT
车门组件
1
3
CDM6210.15-03
RIGHT TORSIONAL SPRING
右扭簧
1
4
CDM6210.15.01
COVER COMPONENTS BRACKET
覆盖件架
1
5
CDM6210.15-02
LEFT TORSIONAL SPRING
左扭簧
1
6
CDM6210.15.07
HAND RAIL
扶手
1
7
CDM6210.15.04.01
RIGHT SIDE DOOR
右侧门
1
8
GB/T5783
BOLT M12×25
螺栓 M12×25
10
9
GB/T96
WASHER 12
垫圈 12
13
10
GB/T5783
BOLT M12×30
螺栓 M12×30
2
11
CDM6210.15.04.04
LEFT SIDE REAR DOOR
左侧后门
1
12
CDM6210.15.04.03
LEFT SIDE FRONT DOOR
左侧前门
1
13
CDM6210.15.04.02
RIGHT SIDE PLATE
右侧面板
1
14
LGW-NBS6105010
ENGINE HOOD LOCK
发动机罩锁
2
15
NBS504B
HOOD LOCK
机罩锁
2
