Description

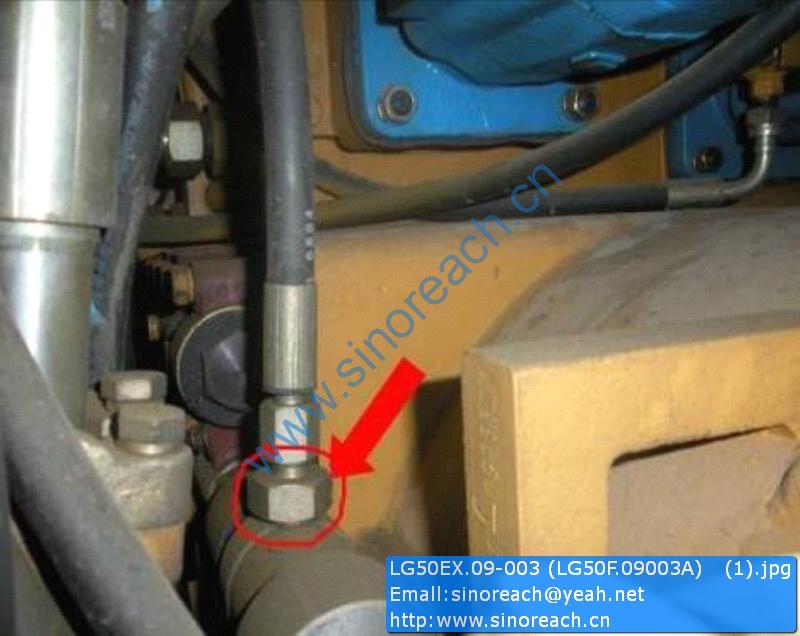

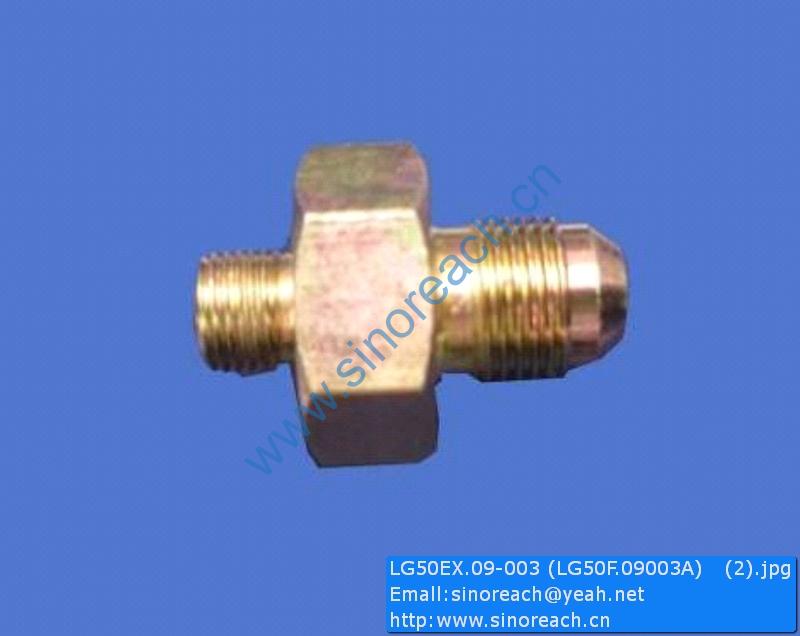

LG50EX.09-003 LG50F.09003A Cutoff cylinder air inlet connector CDM855 CDM855E CDM856 parts

1
CDM6210.75.01
BUCKET
铲斗本体
1
2
GB/T5782
BOLT M16×150
螺栓 M16×150
2
3
GB/T6170
NUT M16
螺母 M16
4
4
CDM6210.71.02
PIN ASSEMBLY
销轴总成
2
5
LG6230.15-09
ADJUST SHIMS
调整垫片
4
6
GB/T3452.1
O RING Φ145×10
O 形圈Φ145×10
4
7
GB/T6170
NUT M20
螺母 M20
12
8
GB/T1230
WASHER 22
垫圈 22
12
9
EX200-L
LEFT CORNER TOOTH
左侧齿板
1
10
GB/T5782
BOLT M20×70
螺栓 M20×70
12
11
EX200-R
RIGHT CORNER TOOTH
右侧齿板
1
12
GB/T5782
BOLT M16×150
螺栓 M16×150
1
13
SPRING-6230
SNAP RING
扣环
4
14
PIN-6230
PIN
销
4
15
P-6230
TOOTH SLEEVE
齿套
4

1
CDM6200.74.01
BUCKET
铲斗本体
1
2
GB/T5782
BOLT M16×150
螺栓 M16×150
2
3
GB/T6170
NUT M16
螺母 M16
4
4
CDM6210.71.02
PIN ASSEMBLY
销轴总成
2
5
LG6230.15-09
ADJUST SHIMS
调整垫片
4
6
GB/T3452.1
O RING Φ145×10
O 形圈Φ145×10
4
7
GB/T6170
NUT M24
螺母 M24
10
8
GB/T1230
WASHER 24
垫圈 24
10
9
S/C-6230L
LEFT CORNER TOOTH
左侧齿板
1
10
GB/T5782
BOLT M24×70
螺栓 M24×70
10
11
S/C-6230R
RIGHT CORNER TOOTH
右侧齿板
1
12
GB/T5782
BOLT M16×150
螺栓 M16×150
1
13
SPRING-6230
SNAP RING
扣环
5
14
PIN-6230
PIN
销
5
15
P-6230
TOOTH SLEEVE
齿套
5
