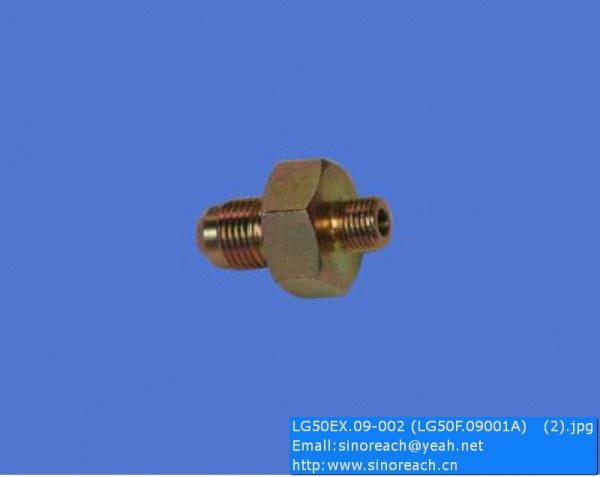

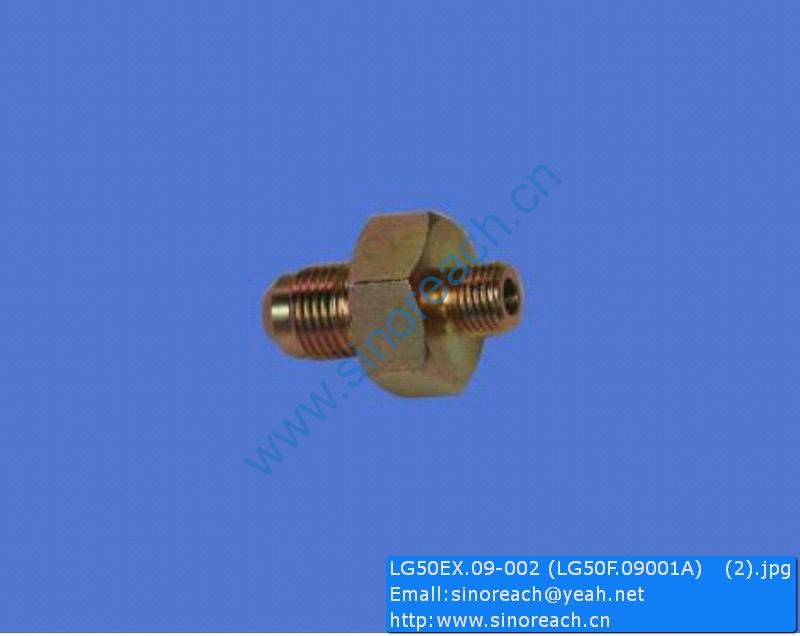

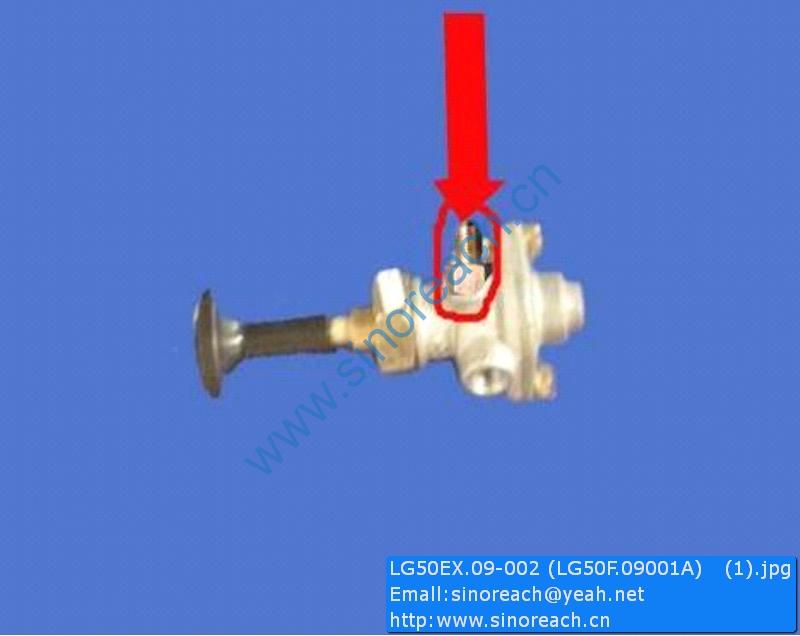

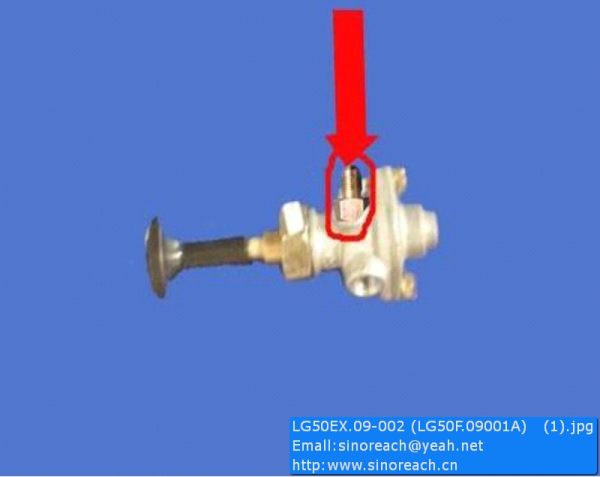

LG50EX.09-002 LG50F.09001A Parking brake valve air inlet conenctor CDM855 CDM855E CDM856 parts

1
M1MAKH-16
FLANGE COMPONENTS
法兰组件
2
2
F7811519121212-
1250(PG-119)
HOSE
软管
2
3
M1M1KH-12
FLANGE COMPONENTS
法兰组件
14
4
CDM6210.06
BUCKET ROD ASSEMBLY
斗杆总成
1
5
H10229500
BUCKET CYLINDER
铲斗油缸
1
6
GB/T70.1
SCREW M20×35
螺钉 M20×35
8
7
CDM6210.71
BUCKET ASSEMBLY
铲斗总成
1
8
H10229401(RH)
RIGHT BOOM CYLINDER
右动臂油缸
1
H10229301(LH)
LEFT BOOM CYLINDER
左动臂油缸
1
9
GB/T5783
BOLT M20×30
螺栓 M20×30
2
10
GB/T97.1
WASHER 20
垫圈 20
2
11
CDM6210.05-08
SPRAG D22×5.5
挡圈 D22×5.5
2
12
CDM6210.05.10
BOOM CYLINDER PIN ASSEMBLY
动臂油缸销轴总成
2
13
CDM6210.05-09
PIN WASHER Φ82×12
销轴垫圈Φ82×12
2
14
CDM6210.05.06
HIGH PRESSURE HOSE Φ27
高压油管Φ27
1
15
CDM6210.05.05
HIGH PRESSURE HOSE Φ27
高压油管Φ27
1
16
CDM6210.05.03
HIGH PRESSURE HOSE Φ34
高压油管Φ34
1
17
CDM6210.05.02
HIGH PRESSURE HOSE Φ27
高压油管Φ27
1
18
F7811515121212-1100
HOSE
软管
1
19
F7811519161616-1170
HOSE
软管
1
20
124
O-RING Ф24.99×3.55
O 形圈Ф24.99×3.55
3
21
H10229200
BUCKET CYLINDER
斗杆油缸
1
22
CDM6210.05
BOOM ASSEMBLY
动臂总成
1
23
CDM6210.05.08
HIGH PRESSURE HOSE Φ27
高压油管Φ27
1
24
CDM6210.05.07
HIGH PRESSURE HOSE Φ27
高压油管Φ27
1

1
CDM6210.71.01
BUCKET
铲斗本体
1
2
GB/T5782
BOLT M16×150
螺栓 M16×150
2
3
GB/T6170
NUT M16
螺母 M16
4
4
CDM6210.71.02
PIN ASSEMBLY
销轴总成
2
5
LG6230.15-09
ADJUST SHIMS
调整垫片
4
6
GB/T3452.1
O RING Φ145×10
O 形圈Φ145×10
4
7
GB/T6170
NUT M24
螺母 M24
10
8
GB/T1230
WASHER 24
垫圈 24
10
9
S/C-6230L
LEFT CORNER TOOTH
左侧齿板
1
10
GB/T5782
BOLT M24×70
螺栓 M24×70
10
11
S/C-6230R
RIGHT CORNER TOOTH
右侧齿板
1
12
GB/T5782
BOLT M16×150
螺栓 M16×150
1
13
SPRING-6230
SNAP RING
扣环
5
14
PIN-6230
PIN
销
5
15
P-6230
TOOTH SLEEVE
齿套
5
