Description

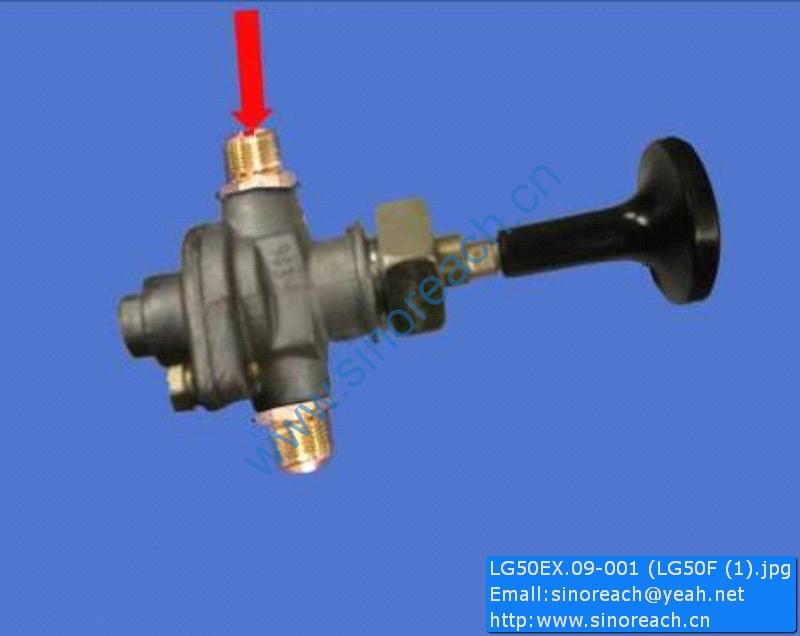

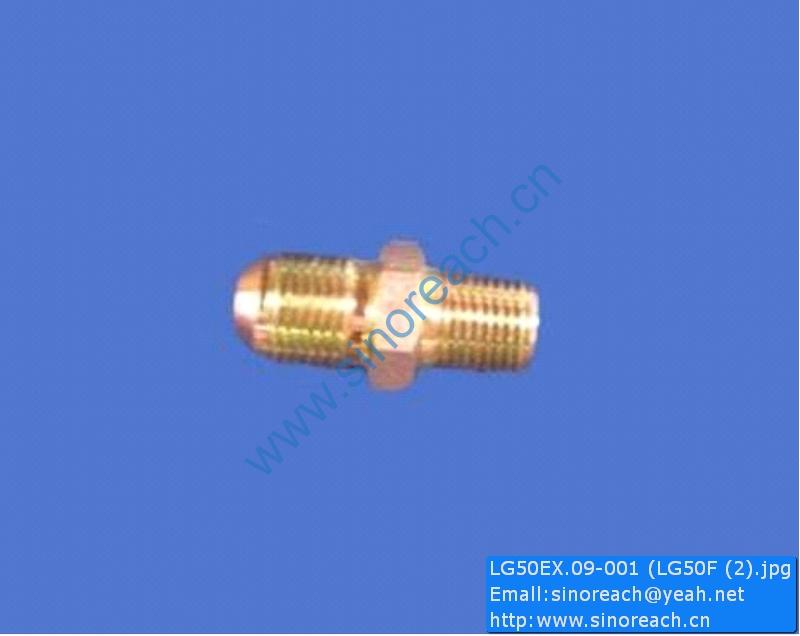

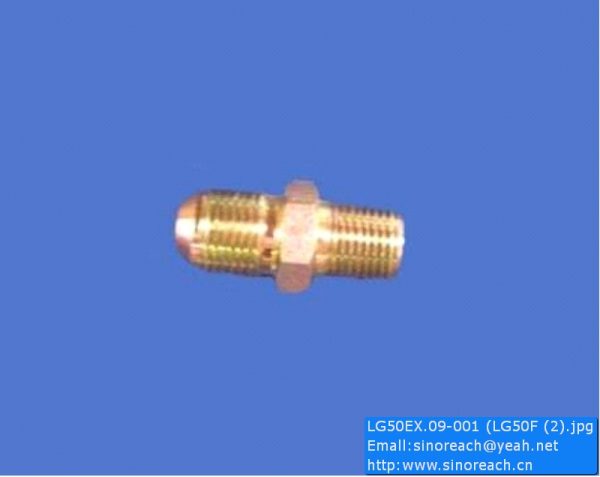

LG50EX.09-001 LG50F.09002A Manual control brake valve air outlet conenctor CDM855 CDM855E CDM856 parts

1
CDM6210.16.01
BOTTOM SEALING PLAT Ⅰ
封板一
1
2
CDM6210.16-02
BOTTOM SEALING PLAT Ⅱ
封板二
1
3
CDM6210.16-03
BOTTOM SEALING PLAT Ⅲ
封板三
1
4
CDM6210.16-06
BOTTOM SEALING PLATⅥ
封板六
1
5
CDM6210.16-08
BOTTOM SEALING PLAT Ⅷ
封板八
1
6
CDM6210.16-07
BOTTOM SEALING PLAT Ⅶ
封板七
1
7
CDM6210.16-05
BOTTOM SEALING PLAT Ⅴ
封板五
1
8
CDM6210.16-04
BOTTOM SEALING PLAT Ⅳ
封板四
1
9
GB/T96
WASHER 12
垫圈 12
51
10
GB/T5783
BOLT M12×25
螺栓 M12×25
51
11
GB/T97.1
WASHER 10
垫圈 10
4
12
GB/T5783
BOLT M10×25
螺栓 M10×25
4
13
CDM6210.16-11
SEAL
密封垫
1
14
CDM6210.16-10
COVER BOARD
盖板
1

1
D60-10-00001
LEFT HANDLE
左手柄
1
2
D60-10-00002
RIGHT HANDLE
右手柄
1
3
GB/T818
SCREW M4×14
螺钉 M4×14
2
4
CDM6210.19.02.02
LEFT JOYSTICK
左操纵杆
1
5
CDM6210.19.02.01
RIGHT JOYSTICK
右操纵杆
1
6
GB/T5783
BOLT M10×20
螺钉 M10×20
8
7
GB/T97.1
WASHER 10
垫圈 10
24
8
GB/T5783
BOLT M16×50
螺栓 M16×50
4
9
GB/T97.1
WASHER 16
垫圈 16
4
10
CDM6210.19.03
PEDAL
踏板
2
11
GB/T5783
BOLT M10×20
螺栓 M10×20
16
12
Y20-26-00
SHOCK ABSORBER
减震器
4
13
CDM6210.19-01
WASHER
垫圈
4
14
CDM6210.19.04-02
RUBBER PEDAL
橡胶脚踏
2
15
CDM6210.19.04-03
RUBBER MAT
橡皮地垫
1
16
CDM6210.19.01
BOARD WELDMENT
底板焊合
1
17
CDM6210.19.04-05
HOSE CLAMP
管夹
2
18
CDM6210.08-07
WASHER
垫圈
4
19
GB/T96
WASHER 10
垫圈 10
4
