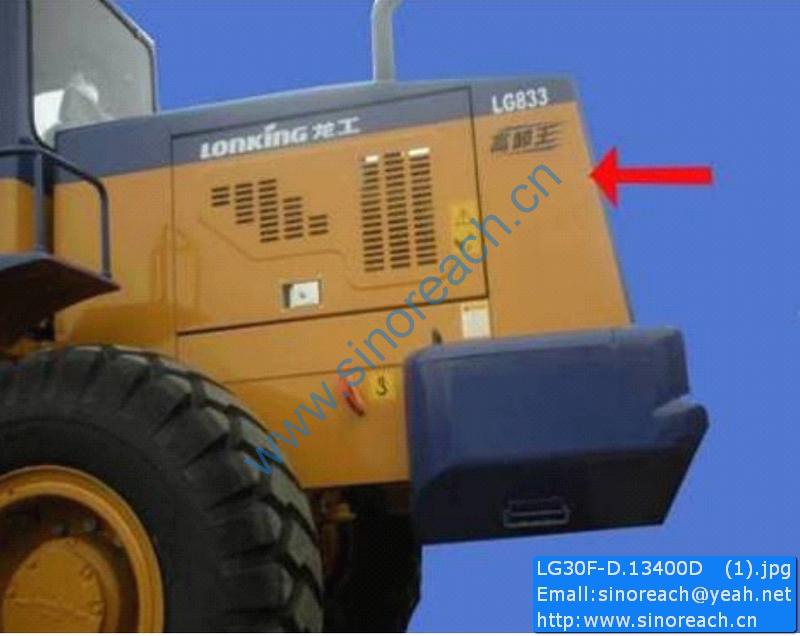

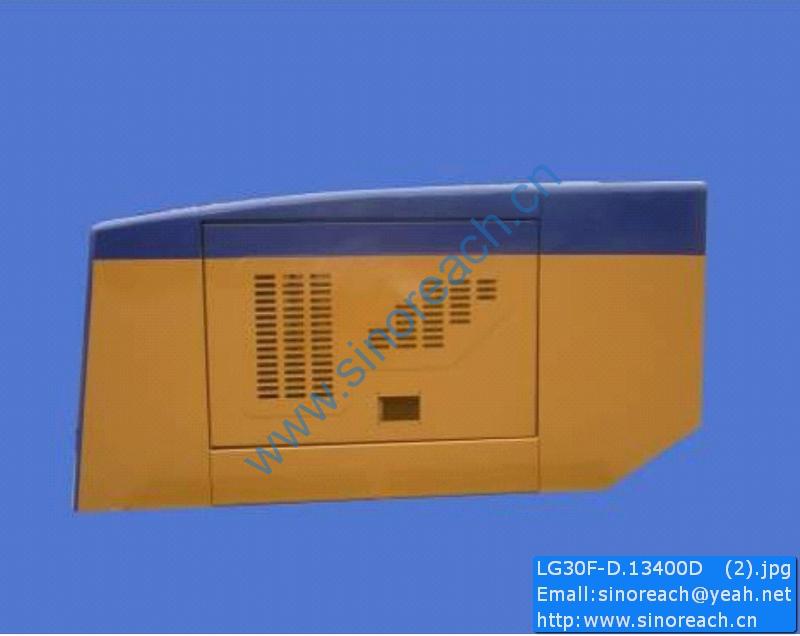

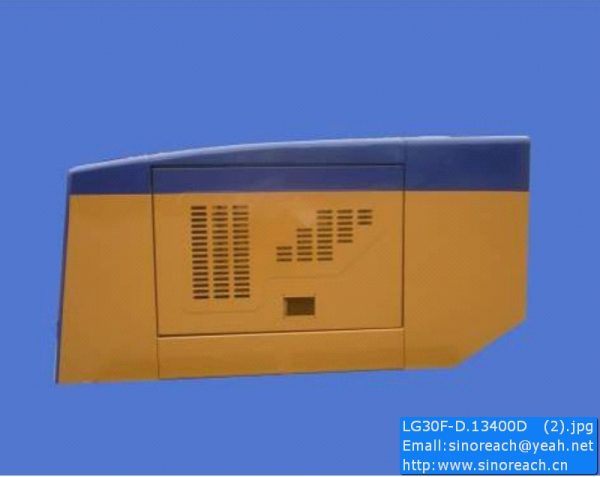

LG30F-D.13400D Engine hood assembly CDM833 spare parts

38
F076-B-001
WATER SEPARATOR
油水分离器
1
39
CDM6210.17.18
BEDPLATE OF WATER SEPARATOR
油水分离器座板
1
40
IC9038
AIR INLET HOSE
进气胶管
1
41
HOOP95
SILICONE HOSE
硅胶管
1
42
CDM6210.17-14
CLAMP
卡箍
2
43
GB/T5783
BOLT M8×25
螺栓 M8×25
4
44
GB/T97.1
WASHER 8
垫圈 8
4
45
STBH120
CLAMP 112-120
卡箍 112-120
2

GB7548
WATER PIPE Φ8×300
水管Φ8×300
1
2
20Y-06-15240
AUXILIARY RADIATOR ASSEMBLY
副水箱总成
1
3
CDM6210.17.16
AUXILIARY RADIATOR SUPPORT
副水箱支架
1
4
GB/T7548
WATER PIPER Φ8×1500
水管Φ8×1500
1
5
GB/T5783
BOLT M10×25
螺栓 M10×25
11
6
GB/T1230
WASHER 10
垫圈 10
27
7
CDM6210.17-14
CLAMP
卡箍
2
8
CDM6210.17.15
HOLDER 2
固定架 2
1
9
GB/T5783
BOLT M8×25
螺栓 M8×25
10
10
CDM6210.17.03
REAR SUPPORT LEFT
左后支架
1
11
Q/GHXF 23
FUEL PIPE Φ10/20×700
燃油管Φ10/20×700
1
12
CDM6210.17.01
REAR SUPPORT RIGHT
右后支架
1
13
GB/T97.1
WASHER 12
垫圈 12
2
14
GB/T5783
BOLT M12×25
螺栓 M12×25
2
15
CDM6210.17.11
CONNECTOR
连接管
1
16
GB/T6170
NUT M8
螺母 M8
8
17
GB/T97.1
WASHER 8
垫圈 8
15
18
CDM6210.17.09
MUFFLER SUPPORT
消声器支架
1
19
XH.G332X.W
MUFFLER ASSEMBLY
消声器总成
1
20
CDM6210.17-01
MUFFLER CLAMP
消声器卡箍
2
21
LF3806
ENGINE OIL FILTER
机油过滤器
1
22
FS5052
FF9055 FUEL FILTER (SMALL)
FF9055 燃油滤清(小)
1
23
FS1280
FF9055 FUEL FILTER (BIG)
FF9055 燃油滤清器(大)
1
24
Q/GHXF 23
FUEL PIPE Φ10/20×2700
燃油管Φ10/20×2700
1
25
CF-H-110-01-T54
ELASTIC COUPLING
弹性联轴器
1
26
CDM6210.17.05-01
CONNECTIVE PLATE
连接板
1
27
GB/T5783
BOLT M10×30
螺栓 M10×30
12
28
G9H1222
CLAMP 12-22
卡箍 12-22
4
29
Q/GHXF23
FUEL PIPE Φ4.5/10.4×350
燃油管Φ4.5/10.4×350
1
30
SB100
SPRING CLAMP Φ10
弹簧卡箍Φ10
6
31
CDM6210.17-10
BRACKET – CABLE
软轴支架
1
32
CDM6210.17.19
Y-CONNECTOR
三通接头
1
33
GB/T7548
WATER PIPE Φ19×900
水管Φ19×900
1
34
GB/T5783
BOLT M12×40
螺栓 M12×40
1
35
CDM6210.17-13
BENT PLATE
折弯板
1
36
22587-1
STRAIGHT JOINT M10×1
直通接头 M10×1
1
