Description

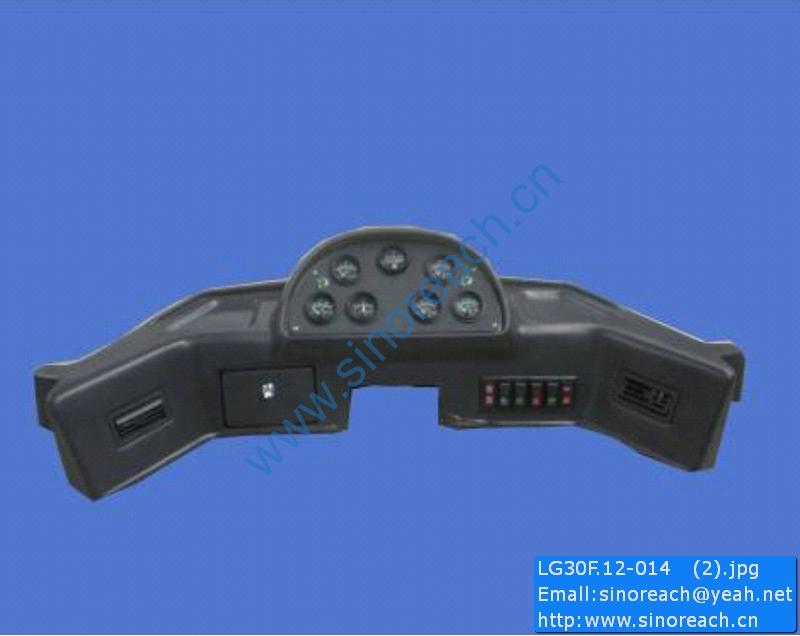

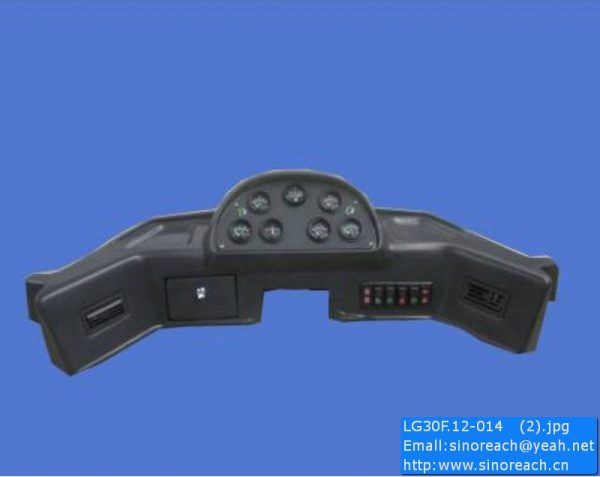

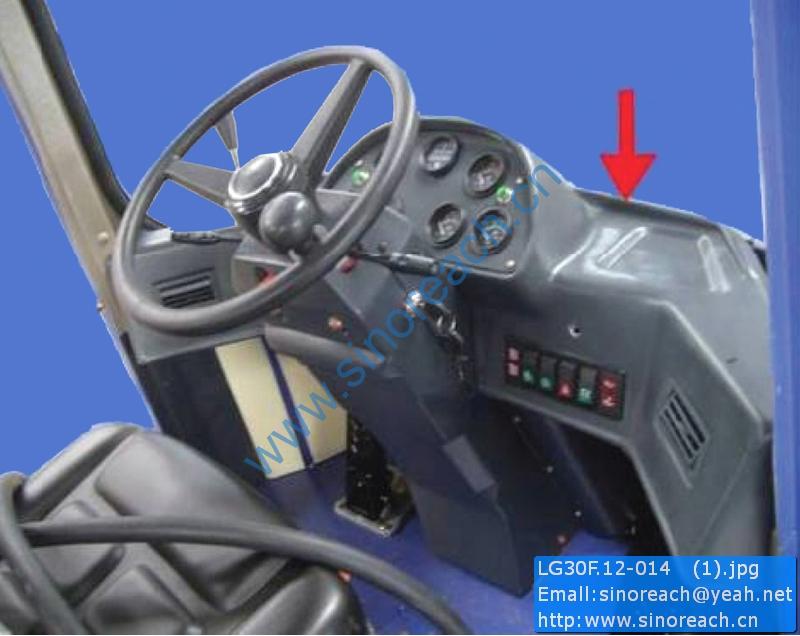

LG30F.12-014 Instrument panel assembly CDM833 PARTS

1 G3645A-100/50-01 缸体(右) Cylinder Body（Right） 1
1a G3645A-100/50-01 缸体(左) Cylinder Body（Left） 1
2 CY158.6-2005 螺母M 39×2 Nut M39×2 1
3 CY115-85 Yx形密封圈D100 YX-Ring D100 2
4 CY115-85 挡圈A100×2 Retaining Ring A100×2 2
5 HSG-100-04 支承环ZD100A Supporting Ring ZD100A 2
6 G3645A-100/50-02 活塞 Piston 1
7 GB1235-76 O形圈55×3.1 O-Ring 55×3.1 1
8 CY155-20002 挡圈D55×3.1×1.5 Retaining Ring D55×3.1×1. 2
9 GB1235-76 O形圈100×5.7 O-Ring 100×5.7 1
10 CY155-2002 挡圈D100×5.7×2 Retaining Ring D100×5.7×2 1
11 CY127-1977 滑环S-50 Slide Ring S-50 1
12 GB1235-76 O形圈65×5.7 O-Ring 65×5.7 1
13 CY128-1997 密封圈g-50 Piston Rod Seal g-50 1
14 CY128-1997 挡圈50 Retaining Ring 50 1
15 G3645A-100/50-05 导向套 Guide Sleeve 1
16 CY129-1997 防尘圈CK-50 Dustproof Ring CK-50 1
17 G3645A-100/50-06 丝圈 Nut 1
18 G3645A-100/50-03 活塞杆 Piston Rod 1
19 GB893.1-86 挡圈75 Retaining Ring 75 4
20 GB1152-89 油杯M10×1 Oil Cup M10×1 2
21 GB/T9163-2001 关节轴承GE50ES Bear GE50ES 2
22 GB/T79-2000 紧定螺钉M6×8/33H Set Screw M6×8/33H 1

1 G3638A-80/40-01 缸体(左) Cylinder Body（Left） 1
1a G3638A-80/40-01 缸体(右) Cylinder Body（Right） 1
2 GB810-88 螺母M30×1.5 Nut M30×1.5 1
3 CY166-94 支承环ZD80B Supporting Ring ZD80B 2
4 CY143-2004 矩形封UF-0080 Rectangle Seal UF-0080 1
5 G3638A-80/40-02 活塞 Piston 1
6 GB3452.1-92 O形圈40×3.55 O-Ring 40×3.55 1
7 CY155-2002 挡圈d40×1.5 Retaining Ring d40×1.5 2
8 G3638A-80/40-04 导向套 Guide Sleeve 1
9 CY164-2002 导向环Td40B Guide Ring Td40B 2
10 GB1235-76 O形圈80×3.1 O-Ring 80×3.1 1
11 CY155-2002 挡圈D80×1.5 Retaining Ring D80×1.5 1
12 CY127-1997 滑环S-40 Slide Ring S-40 1
13 GB1235-76 O形圈50×3.5 O-Ring 50×3.5 1
14 派克B3 4004 P5008 活塞杆密封 Piston Rod Seal 1
15 CY129-1997 防尘圈CK-40 Dustproof Ring CK-40 1
16 G3638A-80/40-05 螺母 Nut 1
17 G3638A-80/40-03 活塞杆 Piston Rod 1
18 GB893.1-86 挡圈62 Retaining Ring 62 2
19 GB1152-89 油杯M10×1 Oil Cup M10×1 1
20 GB9163-90 关节轴承GE40ES Bear GE40ES 1
21 GB/T79-2000 紧定螺钉M6×8/33H Set Screw M6×8/33H 1

1 G3642A-125/70-01 缸体 Cylinder Body 1
2 CY166-94 支承环ZD125A Supporting Ring ZD125A 2
3 G3642A-125/70-02 活塞 Piston 1
4 CY143-2004 矩形封UF-0125 Rectangle Seal UF-0125 1
5 GB1235-76 O形圈75×3.1 O-Ring 75×3.1 1
6 CY155-2002 挡圈D75×3.1×1.5 Retaining Ring D75×3.1×1.5 2
7 GB1235-76 O形圈125×5.7 O-Ring 125×5.7 1
8 CY155-2002 挡圈D125×5.7×2 Retaining Ring D125×5.7×2 1
9 CY127-1997 滑环S-70 Slide Ring S-70 1
10 GB1235-76 O形圈85×5.7 O-Ring 85×5.7 1
11 G3642A-125/70-04 导向套 Guide Sleeve 1
12 派克BS 7085 P5008 活塞杆密封 Piston Rod Seal 1
13 CY129-1997 防尘圈CK-70 Dustproof Ring CK-70 1
14 G3642A-125/70-05 螺母 Nut 1
15 G3642A-125/70-03 活塞杆 Piston Rod 1
16 GB893.1-86 挡圈90 Retaining Ring 90 2
17 GB/T9163-2001 关节轴承GE60ES Bear GE60ES 1
18 GB1152-89 油杯M10×1 Oil Cup M10×1 1
19 GB/T79-2000 紧定螺钉M8×10/33H Set Screw M6×10/33H 1
20 GB/T308-2002 钢球5 Steel Ball 5 1
21 GB/T77-2000 紧定螺钉M8×16/45H Set Screw M8×16/45H 1
22 GB/T77-2000 紧定螺钉M8×12/45H Set Screw M8×12/45H 1
