Description

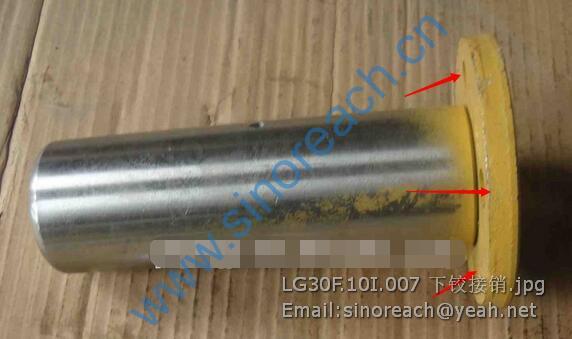

LG30F.10I-007 Lower hinge pin
40 WZ30-25.21.5 动臂 Rocker Arm 1
41 WZ30-25.21.10 固定板销轴 Shaft End Retaining Plate 1
42 WZ30-25.21.9 固定板销轴 Shaft End Retaining Plate 1
43 GB91-86 销6.3×65 Pin6.3×65 1
44 GB6181-86 螺母M36 Nut M36 1
45 WZ30-25.21-6 挡板 Baffle 1
46 WZ30-25.21-7 轴套 Shaft sleeve 2
47 WZ30-25.21-8 隔套 Sleeve 1
48 WZ30-25.21-5 销轴 Shaft 1
49 WZ30-25.21.13 固定板销轴 Shaft End Retaining Plate 2
1 WZ30-25.22A.1 支腿油缸 Bracket Cylinder 各一
2 S01-K8L-14 液压锁 Hydraulic Pressure Lock 2
3 WZ30-25.22A-1 铰接螺栓 Hinge Bolt 4
4 WZ30-25.22A.6 短摆动接管 Short Swing Take-over 各一
5 WZ30-25.22A.12 长摆动接管 Long Swing Take-over 各一
6 DIN20078P 高压胶管8Ⅱ-900 High Pressure Rubber Hose 8Ⅱ-900 2
0间距紧密护簧 Zero Space Between Protect Spring
7 DIN20078P 高压胶管8Ⅱ-880 High Pressure Rubber Hose 8Ⅱ-880 2
0间距紧密护簧 Zero Space Between Protect Spring
8 WZ30-25.22A.2 回转油缸 Steering Cylinder 各一
9 DIN20078P 高压胶管13Ⅱ-500 High Pressure Rubber Hose 13Ⅱ-500 2
10 CDB20-6 多路换向阀 Multi-way Valve 1
11 WZ30-25.22A.9A 散热器 Radiator 1
12 JB1885-77 高压胶管22Ⅰ-600 High Pressure Rubber Hose 22Ⅰ-600 1
13 WZ30-25.22A.8 挖掘操纵装置 Dig Contorl system 1
14 WZ30-25.4-3 双向接头 Connecter 6
15 WZ30-25.22A-4 自润滑轴套 From Lubricate Shaft Sleeve 2
16 DIN20078P 高压胶管16Ⅱ-1050 High Pressure Rubber Hose 16Ⅱ-1050 2
一端90°弯头 One End 90° Head
17 WZ30-25.22A.4 斗杆油缸 Stick Sylinder 1
18 WZ30-25.22-9 管夹 Pipe Clip 2
19 DIN20078P 高压胶管16Ⅱ-1000 High Pressure Rubber Hose 16Ⅱ-1000 2
一端90°弯头 One End 90° Head
20 WZ30-25.22A.5 挖斗油缸 Bucket Cylinder 1
21 WZ30-25.22A.10 挖斗钢管 Bucket Steel Tube 各一
22 WZ30-25.22A-6 双向接头 Connecter 1
23 DZF-L20H-LT-00 单向阀 Unilateralism Throttle 1
24 WZ30-25.22A.7 斗杆钢管（一） Stick Steel Tube（Ⅰ） 1
25 WZ30-25.22A.11 斗杆钢管（二） Stick Steel Tube（Ⅱ） 1
26 WZ30-25.22-12 管夹（一） Pipe Clip（Ⅰ） 2
27 WZ30-25.22A.3 动臂油缸 Lift Arm Cylinder 1
28 DIN20078P 高压胶管16Ⅱ-2600 High Pressure Rubber Hose 16Ⅱ-2600 2
一端90°弯头、0间距
紧密护簧L=1400 One End 90° Head、Zero Space between Protect Spring L=1400
29 WZ30-25.22A-3 压板 Pressure Plate 1
30 WZ30-25.22A-2 胶夹 Rubber Splint 1
31 GB1235-76 O型圈D16×2.4 O-ring D16×2.4 4
32 GB3452.1-92 O型圈16×1.8G O-ring 16×1.8G 8
33 GB1235-76 O型圈D13×1.9 O-ring D13×1.9 4
34 GB1235-76 O型圈D16×1.9 O-ring D16×1.9 4
35 GB1235-76 O型圈D20×1.9 O-ring D20×1.9 12
36 JB982-77 组合垫圈27 Assembled Washer 27 6
37 JB982-77 组合垫圈30 Assembled Washer 30 2
38 GB5783-86 螺栓 M10×20 Bolt M10×20 4
39 GB93-87 垫圈 10 Washer 10 18
40 GB5783-86 螺栓 M10×30 Bolt M10×30 2
41 GB5783-86 螺栓 M10×25 Bolt M10×25 4
42 GB6170-86 螺母M10 Nut M10 2
43 GB5782-86 螺栓 M10×60 Bolt M10×60 8
