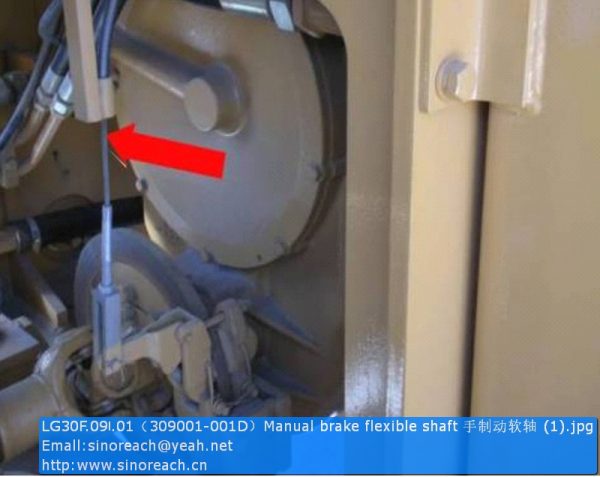

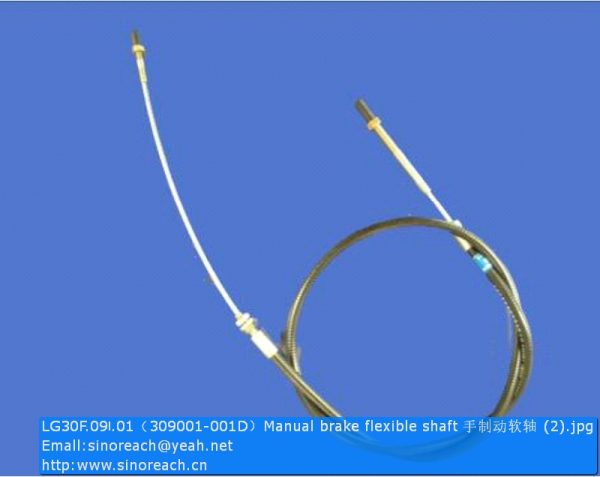

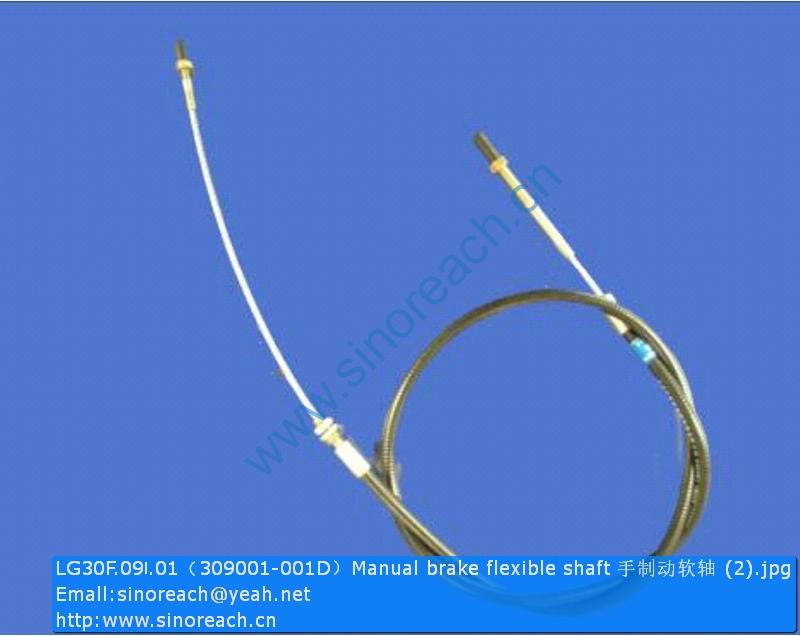

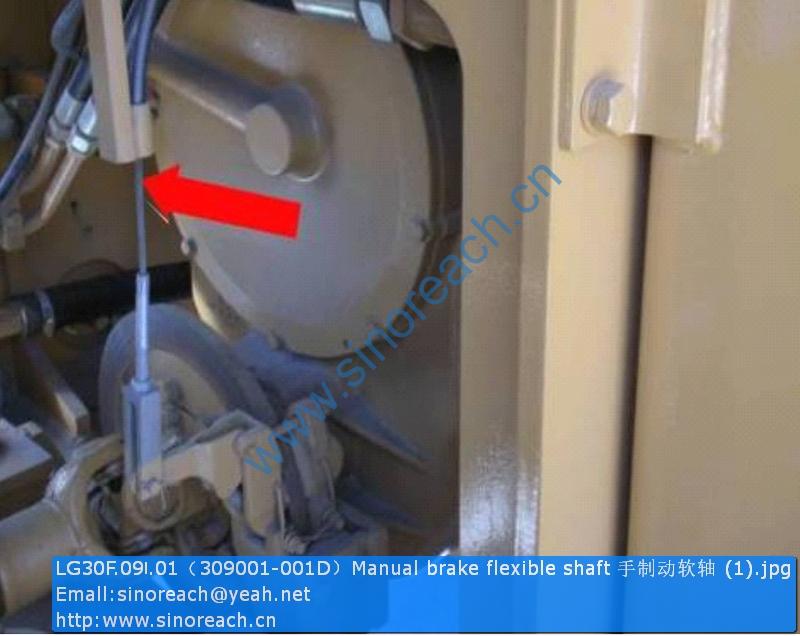

LG30F.09Ⅰ.01 309001-001D Manual brake flexible shaft for CDM833 CDM835 parts

1 GB70-85 螺栓M8×20 Bolt M8×20 4
2 GB93-87 垫圈8 Washer 8 4
3 WZ30-25.16A.3 百叶窗 Shutter 1
4 GB91-86 开口销4×30 Pin 4×30 2
5 GB95-85 垫圈12 Washer 12 2
6 GB70-85 螺栓M10×35 Bolt M10×35 4
7 GB93-87 垫圈10 Washer 10 4
8 GB882-86 销轴B12×85 Shaft B12×85 2
9 WZ30-25.16B.2 合页连板 Hinge Seat Plate 2
10 GB91-86 开口销3.2×20 Pin 3.2×20 4
11 GB95-85 垫圈8 Washer 8 4
12 GB882-86 销轴B8×16 Shaft B8×16 2
13 WZ30-25.16B.3-1 滑板 Movable Plate 2
14 WZ30-25.16B.3-2 连板 Connecting Plate 2
15 GB91-86 开口销2×20 Pin 2×20 1
16 GB95-85 垫圈6 Washer 6 2
17 WZ30-25.16A-2 盖板 Cover plate 1
18 GB882-86 销轴B6×14 Shaft B8×16 1
19 WZ30-25.16B.1 机罩体 Hook Body 1
20 GB62-88 蝶形螺母M6×1 Nut M6×1 1
21 GB65-85 螺钉 M5×10 Screw M5×10 4
22 GB93-87 垫圈5 Washer 5 4
23 箱挂 Ring Hoisting 2
24 WZ30-25.16A-3 挂钩 Pull Plate 2

1 13-20SDC 轮辋体 Rim Body 4
2 16-70/20 轮胎总成 Tire Assembly 4
3 13-20SDC 轮辋轮缘 Rim Flenge 4
4 13-20SDC 锁圈 Lock Ring 4

1 NJ130-2201023-D 突缘叉 Flange Yoke 2
2 HWJ3-002-00 万向节总成 Universal Joint Assembly 2
3 外花键轴总成 Outer Spline Shaft Assembly 1 特制
4 NJ130-2201021-W 内花键轴总成 Inner Spline Shaft Assembly 1
5 NJ130-2202120 弹性挡圈 Retaining Ring 8
6 GB1152-89 油嘴M10×1 Oil Grease M10×1 1
7 GB6182-86 螺母M12-9 Nut M12-9 4
8 GB5783-86 螺栓M12×35-9.8 Bolt M12×35-9.8 4
9　 GB5786-86 螺栓M12×1.25×25-9.8 Bolt M12×1.25×25-9.8 4
10 GB93-87 垫圈12 Washer 12 4
11　 NJ130-2201017 挡油片 Block Oil Slice 1
12　 NJ130-2201065 油封盖 Oil Seal Cover 1
