Description

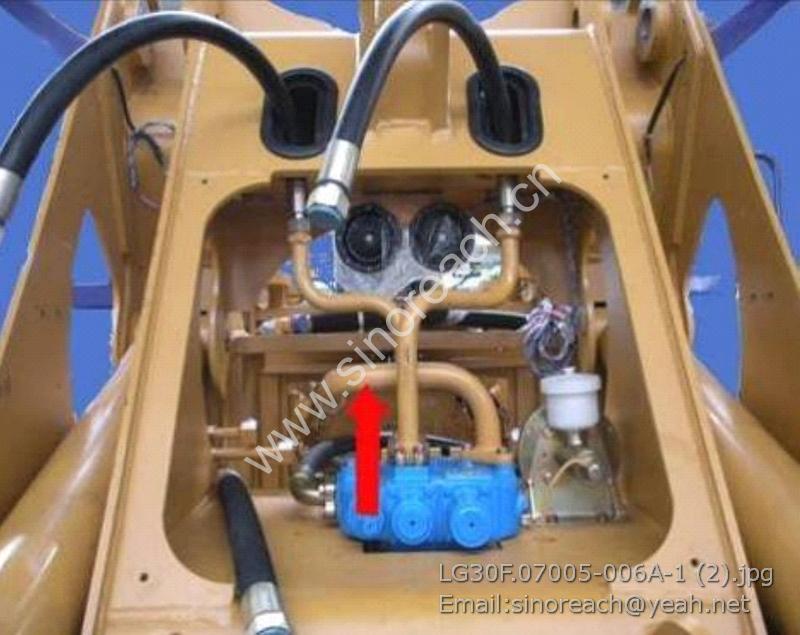

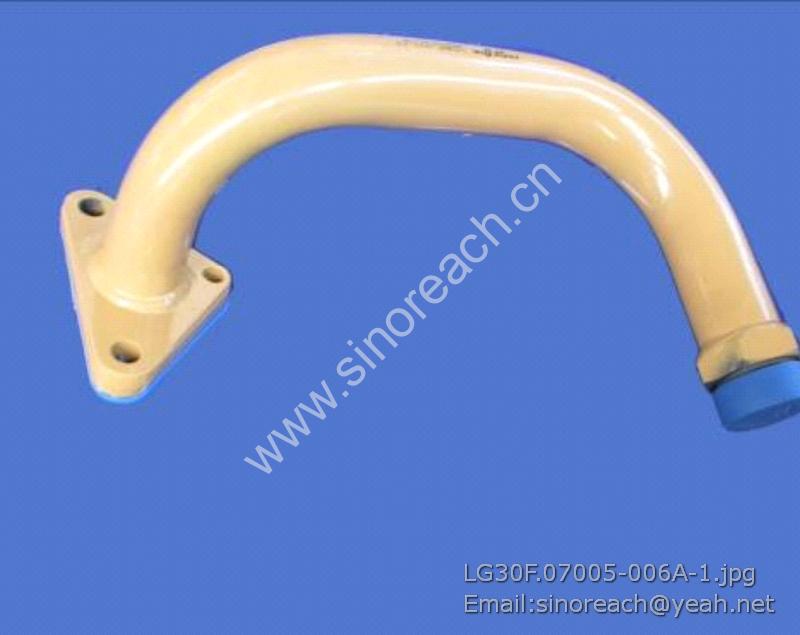

LG30F.07005-006A-1 LG30F.07Ι.13 Distribution valve oil return pipe

90B-B/22/22-Ⅱ-L600 变速泵至滤油器胶管 Hose from transmission pump to oil filter 1
LG30F.02Ι.02-009 滤油器回油接头 Filter oil-return connector 1 302021D
JB1002-77 密封垫圈22 Seal washer 22 1
LG853.02.02.01 双变滤油器 Oil filter 1 YL-98-00
GB/T5782 螺栓M8×45 Bolt M8×45 4
GB/T6170 螺母M8 Nut M8 4
GB/T97.1 垫圈M8 Washer M8 8
LG30F.02Ι.02-002 滤油器进油接头 Filter oil-inlet connector 1 LG30F.02020A
JB/T1002 密封垫圈30 Seal washer 30 1
φ19×2×110 回油胶管 Oil-return hose 1
JB/T8870-1999 管夹(φ22-32) Pipe clip(φ22-32) 4
GB5628.2-85 接头体A5 Adapter A5 1
JB1002 密封垫圈10 Seal washer 10 1
LG853.15.35 变速阀压力表油管（1300） Transmission valve pressure gauge tube 1
φ19×2×250 回油胶管 Oil-return hose 1

GB/T894.1 挡圈60 Spacer 60
GB/T276-94 轴承60×95×18 Bearing 60×95×18
YJ31502A-12 被动齿轮 Driven gear
YJ31502A.3-3 轴套 Shaft sleeve
YJ31502A.4-1 泵驱动轴总成（Ⅱ） Pump shaft assembly Ⅱ
GB/T893.1 挡圈95 Spacer 95
YJ31502D.1-1 泵驱动轴总成（Ⅰ） Pump shaft assembly Ⅰ
外方堵头ZG1/2〃 Square plug ZG1/2〃
GB/T5783 螺栓M8×12 Bolt M8×12
GB/T93 垫圈8 Washer 8
YJSW315-4AI-5 盖板 Cover board
GB/T825 螺钉M12 Screw M12
YJ31502D-5 壳体 Housing body
YJ31502A-14 止口环 Stop ring
GB3452.1-92 O型密封圈42.5×2.65 O-ring 42.5×2.65
JB/T2600-80 油封SD70×95×12 Oil seal SD70×95×12
YJ31502C-10 端盖 End cover
GB/T93 垫圈10 Washer 10
GB/T5782 螺栓M10×55 Bolt M10×55
YJ31502C-9 轴套 Shaft sleeve
YJ31502D-6 输出法兰 Output flange
YJ31502C-7 挡圈 Spacer
GB/T889 螺母 Nut

YJ31502D-3 驱动齿轮 Drive gear
GB/T5783 螺栓M12×30 Bolt M12×30
GB/T93 垫圈12 Washer 12
YJ31502D-4 驱动齿圈 Drive ring gear
GB/T5783 螺栓M10×30 Bolt M10×30
GB/T93 垫圈10 Washer 10
YJ31502D-2 定心轴头 Centering shaft end
GB3452.1-92 O型密封圈95×2.65 O-ring 95×2.65
YJ31502A-5 泵轮罩 Pump wheel housing
GB/T5783 螺栓M8×20 Bolt M8×20
GB/T93 垫圈8 Washer 8
YJ31502A-2 挡圈 Spacer
GB/T894.1 挡圈65 Spacer 65
GB/T276-94 轴承6013（65×100×18） Bearing 6013（65×100×18）
YJ31502A.2-1 涡轮 Turbine
YJ31502A.2-2 涡轮毂 Turbo hub
GB/T109 铆钉 Rivet
GB/T894.1 挡圈45 Spacer 45
GB/T894.1 挡圈45 Spacer 45
YJ31502A-4 导轮 Idler wheel
YJ31502A-17 挡板 Baffle
YJ31502A-7 泵轮 Pump wheel
GB/T5783 螺栓M8×30 Bolt M8×30
