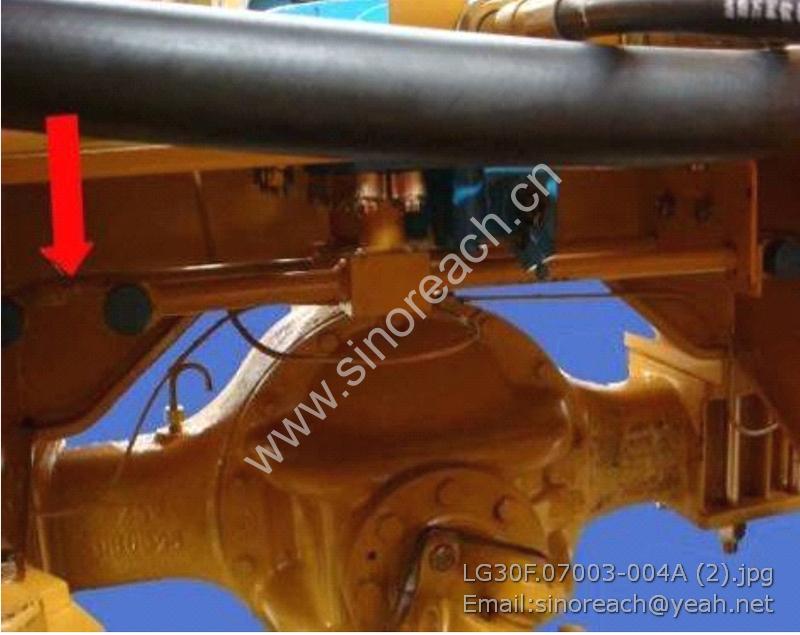

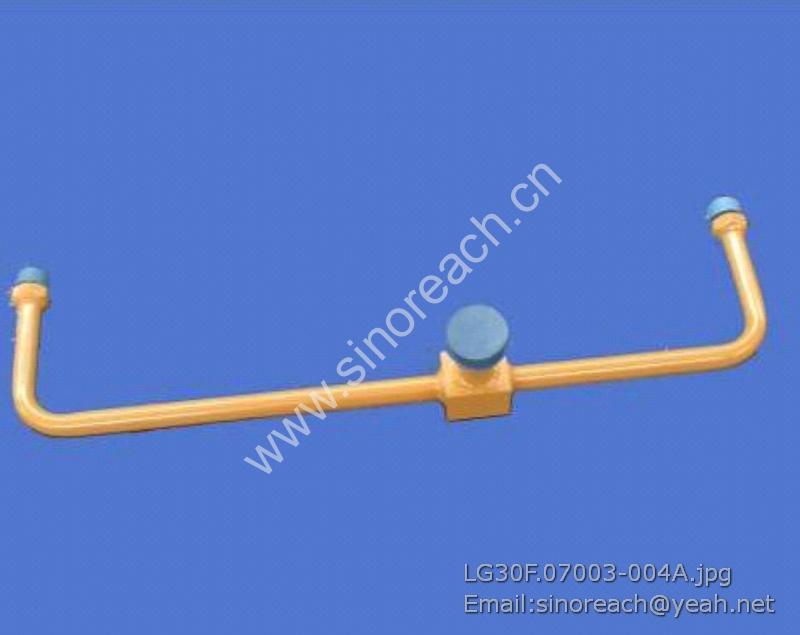

LG30F.07003-004A LG30F.07Ι.15 Pipe from distribution valve to lift cylinder rear chamber

LG30F.01Ⅰ.06.01 油门软轴总成 Throttle flexible shaft assembly 1 13022936
LG30F.01Ⅰ.06-001 油门软轴支架 Throttle flexible shaft bracket 1 LG330.01604A
GB/T93 垫圈6 Washer 6 5
GB/T97.1 垫圈6 Washer 6 7
GB/T6170 螺母M6 Nut M6 2
GB/T5783 螺栓M6×20 Bolt M6×20 5
LG853.01.06.02 油门踏板总成 Throttle pedal assembly 1 LG50F.01601-627A

GB/T5782 螺栓M10×50 Bolt M10×50 8
GB/T93 垫圈 10 Washer 10 8
GB/T5783 螺栓M12×35 Bolt M12×35 20
GB/T93 垫圈 12 Washer 12 12
LG30F.02Ⅲ.01 变矩器总成 Torque converter assembly 1
LG30F.02Ⅲ.02 双变油路总成 Transmission and torque converter oil circuit assembly 1
GB/T5783 螺栓M12 Bolt M12 8
GB/T890 螺母M12 Nut M12 8
LG30F.02Ⅲ.03 上传动轴总成 Upper drive shaft assembly 1 302100D

GB3733.2-83 接头体G22 Adapter G22 5
JB1002-77 密封垫圈27 Seal washer 27 5
LG30F.02Ⅲ.02.01 变速阀进油钢管 Transmission valve oil-inlet pipe 1 302004-004D
LG30F.02Ⅲ.02.02 变速阀出油钢管 Transmission valve oil-outlet pipe 1 302003-003D
H-H/22/22-Ⅱ-L600 操纵阀进出油胶管 Control valve oil-inlet/outlet hose 2
LG30F.02Ⅲ.02.03 滤油器出油钢管 Oil filter oil-outlet pipe 1 302027-027D
LG30F.02Ⅲ.02.04 变矩器进油钢管 Torque converter oil-inlet pipe 1 302009-009D
LG30F.02Ⅲ.02.05 冷却器至变速箱润滑油管 Lubricating tube from cooler to transmission 1 302032-033D-HN
LG30F.02Ⅲ.02-001 变速箱回油口接头体 Transmission oil-return adapter 1 302030D
GB3733.2-83 接头体G28 Adapter G28 2
JB1002-77 密封垫圈33 Seal washer 33 2
H-H/25/28-Ⅱ-L800 变矩器回油胶管 Torque converter oil-return hose 1
H-H/25/28-Ⅱ-L950 变速泵吸油胶管 Transmission pump oil-suction hose 1
LG30F.02Ⅲ.02.06 变速泵吸油钢管 Transmission pump oil-suction pipe 1 302038-038D
LG30F.02Ⅲ.02-002 变矩器回油口接头体 Torque converter oil-return adapter 1 302031D
LG30F.02Ⅲ.02.07 变矩器出油钢管 Torque converter oil-outlet pipe 1 302007-007D
LG30F.02Ⅲ.02-003 管夹 Pipe clip 4 302045D
GB/T5783 螺栓M8×15 Bolt M8×15 8
GB/T93 垫圈8 Washer 8 8
H-H/22/22-Ⅱ-L1300 冷却器进出油胶管 Cooler oil-inlet/outlet hose 2
GB/T5783 螺栓M10×30 Bolt M10×30 6
GB/T93 垫圈10 Washer 10 6
LG30F.02.02.01 单级齿轮泵 Single-stage gear pump 1 CBG-FA40-FL
