Description

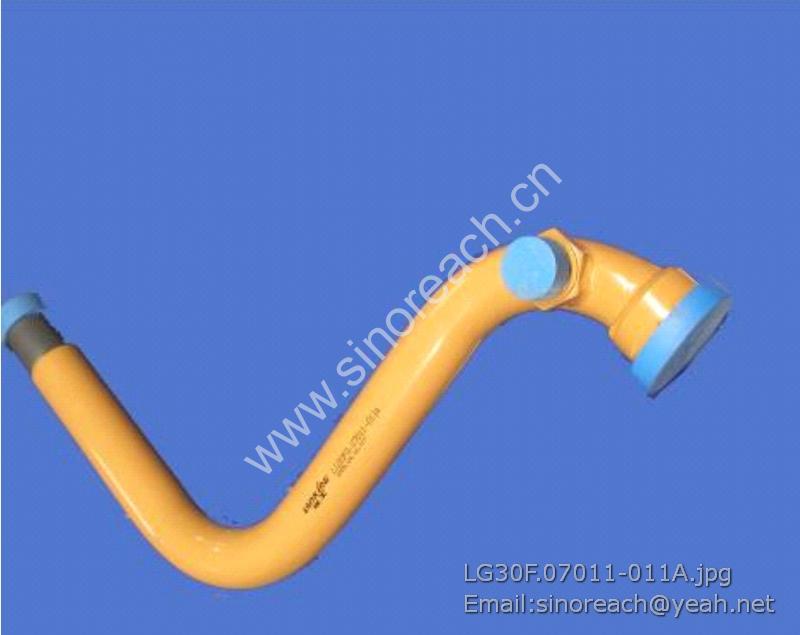

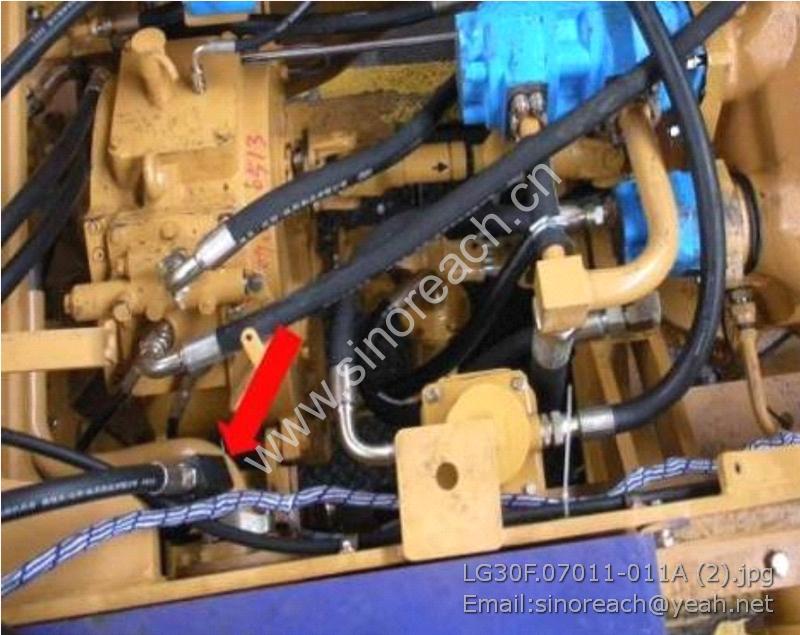

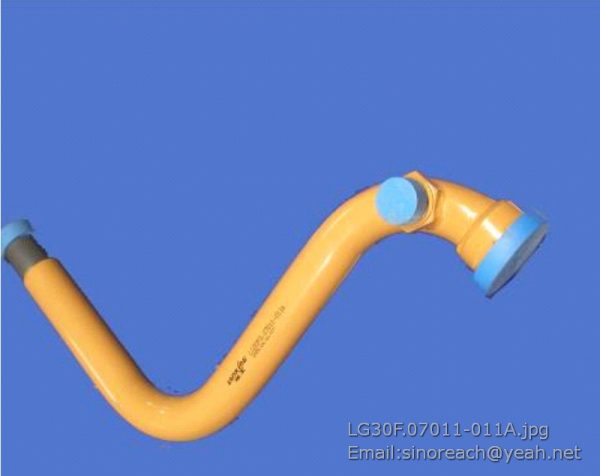

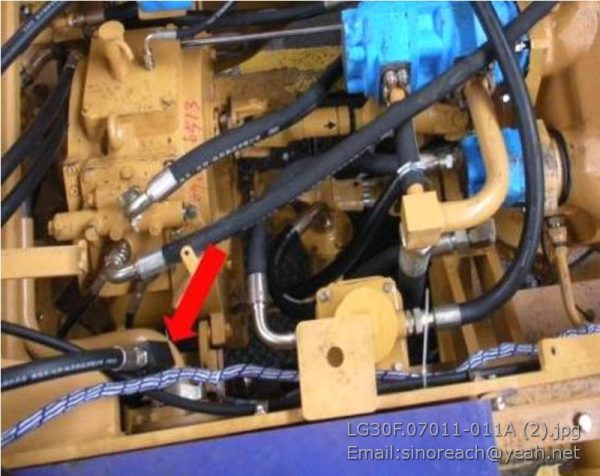

LG30F.07Ι.16 LG30F.07011-011A Hydraulic oil tank return pipe

GB/T283-94 轴承NF308 Bearing NF308 1 φ40×φ90×23
ZL30E.5.4-2(ZL30E.5.4-5） 轴套 Shaft sleeve 1
ZL30E.5.4-1B 三轴三挡齿轮 Shaft Ⅲ third gear 1
ZL30E.5.4-2(ZL30E.5.4-5) 轴套 Shaft sleeve 1
GB/T276-94 轴承6209 Bearing 6209 2
ZL30E.5.3-4 轴套 Shaft sleeve 1
GB893.1-86 挡圈85 Spacer 85 2
GB894.1-86 挡圈52 Spacer 52 1
ZL30E.5.1-3 压板 Press plate 2
ZL30E.5.4-3 三轴二挡齿轮 Shaft Ⅲ second gear 1
GB893.1-86 挡圈150 Spacer 150 1
ZL30E.5.1-8 离合器活塞压板 Clutch piston press plate 2
ZL30E.5.1-13 离合器被动片 Clutch driven plate 6 ZL30E.10.5.1-6
ZL30E.5.1-12 离合器主动片 Clutch driving plate 6 ZL30E.10.5.1-3
ZL30E.5.1.1 活塞装置 Piston device 1
ZL30E.5.1-4 回位弹簧 Return spring 1
ZL30E.5.4.1 三轴离合器毂体 Shaft Ⅲ clutch hub body 1
ZL30E.5.4-4A 三轴输出齿轮 Shaft Ⅲ output gear 1
ZL30E.5.4-6 轴套 Shaft sleeve 1
GB283-94 轴承NF309 Bearing NF309 1
ZL30E.5.1-7 密封环 Seal ring 2
ZL30E.5.1-9 丝堵 Plug 1
ZL30E.5.4-7 调整垫圈 Adjusting washer 1set

LG30F.04Ⅰ.01 前驱动桥总成 Front axle assembly 1 LG30F.04000A
GB/T5786 螺栓M14×1.5×42 Bolt M14×1.5×42 24 404026
GB/T889 螺母 M14×1.5 Nut M14×1.5 24
LG30F.04Ⅰ.02 前传动轴总成 Front drive shaft assembly 1 304100D
LG30F.04Ⅰ.03 中间支承轴总成 Intermediate support shaft assembly 1 304311-315D
GB/T5783 螺栓 M16×50 Bolt M16×50 4
GB/T97.1 垫圈 16 Washer 16 4
GB/T93 垫圈 16 Washer 16 4
LG30F.04Ⅰ.04 中间传动轴总成 Intermediate drive shaft assembly 2 304300D
LG30F.04Ⅰ.06 后驱动桥总成 Rear axle assembly 1 LG30F.04000A
LG30F.04Ⅰ.07 轮辋总成 Rim assembly 4 304600D
GB/T2980 17.5-25轮胎 E-3/L-3 Tyre 17.5-25 E-3/L-3 4
GB/T5784 前桥螺栓M24×280 Front axle bolt M24×280 8
GB/T890 螺母M24 Nut M24 16
GB/T5784 后桥螺栓M24×240 Rear axle bolt M24×240 8
