Description

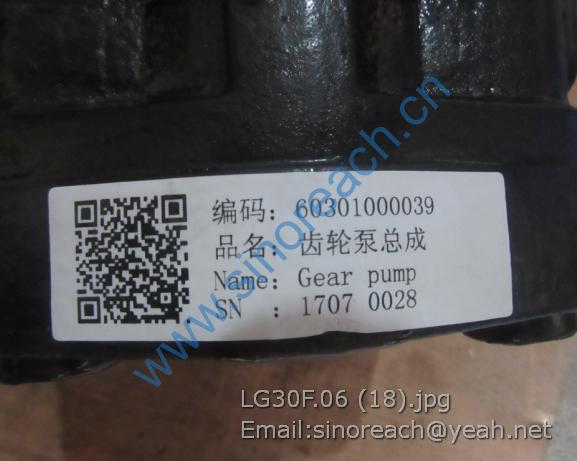

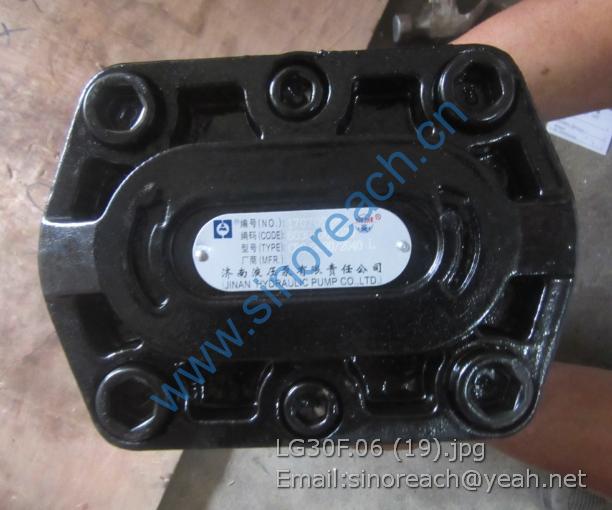

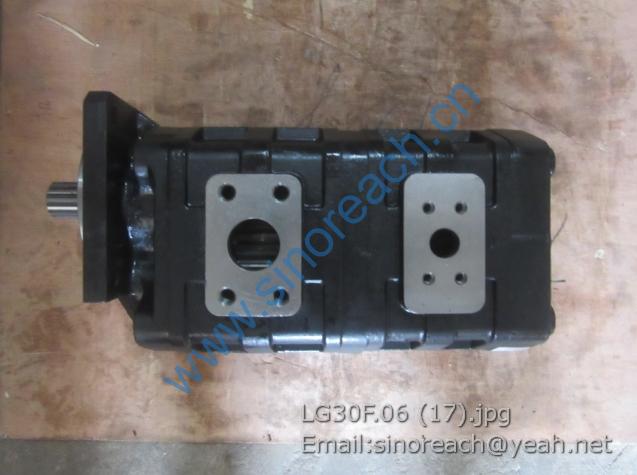

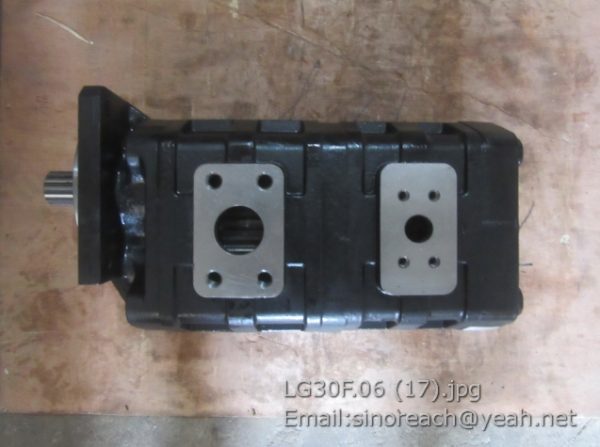

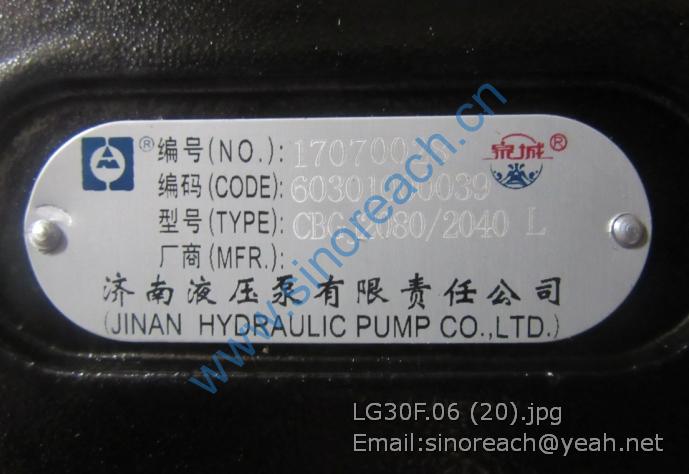

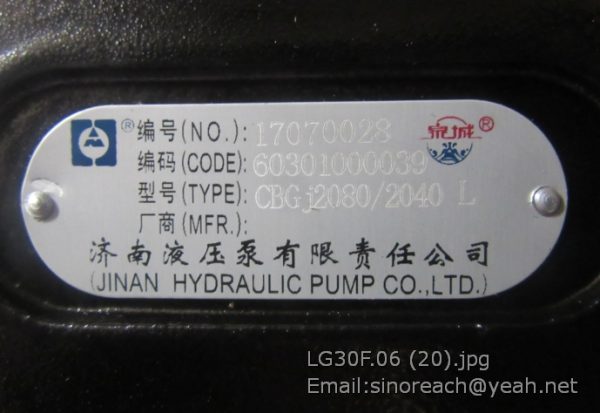

LG30F.06.01 60301000039 CBG2080/2040-B3BL GEAR PUMP for LONKING spare parts
1 GB/T5782 BOLT M16×195 螺栓 M16×195 4
2 CDM6210.17-03 SHIM PLATE 垫板 4
3 CDM6210.17.01 REAR SUPPORT RIGHT 右后支架 1
4 GB/T5783 BOLT M12×35 螺栓 M12×35 16
5 Y20.01-12222.R ENGINE REAR SHOCK PAD RIGHT 发动机后减震垫 4
6 CDM6210.17-02 INSERT PLATE 限位垫板 6
7
PSi63.5
INTER-COOLER HOSE SILICON
Ф63.5×150×60×40
空中冷器硅胶管Ф63.5
×150×60×40
3
8 STBH78 CLAMP 70-78 卡箍 70-78 6
9 CDM6210.17-05
AIR OUTLET STAINLESS STEEL
TUBE OF INTERCOOLING 中冷出气不锈钢管 1
10 GB/T1230 WASHER 16 垫圈 16 5
11 GB/T6170 NUT M16 螺母 M16 8
12 CDM6210.17.04 FRONT SUPPORT LEFT 左前支架 1
13 CDM6210.17.09 MUFFLER SUPPORT 消声器支架 1
14 CDM6210.17-04 AIR INTAKE PIPE Ф102×7 吸气管Ф102×7 1
15 CDM6210.17-06 WATER INLET HOSE 发动机进水胶管 1
16 AH19225-A1 AIR FILTER 空滤器 1
17 HRSGBLPU30B1-217ST HOLD HOOP 抱箍 2
18 GB/T6170 NUT M12 螺母 M12 8
19 GB/T1230 WASHER 12 垫圈 12 24
20 CDM6210.17.13 AIR FILTER SUPPORT 空滤器支架 1
21 GB/T5783 BOLT M12×25 螺栓 M12×25 7
22 Q/GHXF 23 FUEL PIPE Ф10/20×3560 燃油管Ф10/20×3560 1
23 Q/GHXF 23 FUEL PIPE Ф10/20×2700 燃油管Ф10/20×2700 1
24 CDM6210.17.07 RADIATOR ASSEMBLY 散热器总成 1
25 CDM6210.17-07 WATER OUTLET HOSE 发动机出水胶管
26 6BTAA5.9-C150 DIESEL ENGINE 柴油机 1
27 SP9038 FAN HEEL BLOCK 风扇垫块 1
28 CDM6210.17-11 FAN SHIM PLATE 风扇垫板 1
29 MD9-YS-685.8-01 FAN 风扇 1
30 GB/T5783 BOLT M10×110 螺栓 M10×110 4
31 AF25270 EXTERNAL ELEMENT OF AIR FILTER 空滤器外滤芯 1
32 AF25271 INTERNAL ELEMENT OF AIR FILTER 空滤器内滤芯 1
33 Y20.01-12222.F ENGINE FRONT SHOCK PAD 发动机前减震垫 4
34 GB/T1230 WASHER 10 垫圈 10 4
35 G9H5070 CLAMP 50-70 卡箍 50-70 3
37 CDM6210.17-08
AIR INLET STAINLESS STEEL
TUBE OF INTER-COOLING 中冷器进气不锈钢管 1
38 F076-B-001 WATER SEPARATOR 油水分离器 1
39 CDM6210.17.18 BEDPLATE OF WATER SEPARATOR 油水分离器座板 1
40 IC9038 AIR INLET HOSE 进气胶管 1
41 HOOP95 SILICONE HOSE 硅胶管 1
42 CDM6210.17-14 CLAMP 卡箍 2
43 GB/T5783 BOLT M8×25 螺栓 M8×25 4
44 GB/T97.1 WASHER 8 垫圈 8 4
45 STBH120 CLAMP 112-120 卡箍 112-120 2
