Description

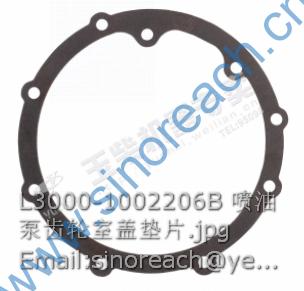

L3000-1002206B Gasket for gear chamber cover of fuel injection pump

E0203-1002071 前左支架 Front left bracket
E0601-1002180 前悬置软垫总成 Front suspension soft pad assembly
6QA1-1600030A 后悬置软垫总成 Rear suspension soft pad assembly
G0202-1600071 后左支架 Rear left bracket
G0202-1600072 后右支架 Rear right bracket
G0108-1002072A 前右支架 Front right bracket

G0100-1002026B 气缸套 Cylinder sleeve
150-1002011 定位套 Positioning liner
150-1002021 碗形塞片 Bowl-type spacer
Q61904 螺塞NPT 1/2 Screw plug NPT 1/2
150-1002012A 凸轮轴衬套Ⅰ Camshaft bushing
530-1002029 凸轮轴端盖 Camshaft end head
150-1002016 定位销 Positioning pin
150-1002062 曲轴后油封 Crankshaft rear oil seal
Q40308 垫圈8 Washer8
Q150B0825 螺栓M8×25 BoltM8×25
G0100-1002061A 曲轴后油封座 Crankshaft rear oil seal seat
150-1002063A 后油封座垫片 Rear oil seat washer
G2000-1002015B 气缸体 Cylinder block
Q61902 螺塞NPT 1/4 Screw plug NPT 1/4
150-1002019 碗形塞片 Bowl-type spacer
530-1002081 油标尺套管 Oil level indicator pipe shroud
6105Q-1002082 O形密封圈9×1.6 O-ring
B30-1002090 油标尺焊接件 Oil level indicator weldment
530-1002028 定位销 Positioning pin
150-1002022 主油道螺塞 Main oil gallery screw plug
150-1002013 碗形塞片 Bowl-type spacer
150-1002028 凸轮轴衬套Ⅱ Camshaft bushing
150-1002042 惰齿轮轴 Idler gear shaft
530-1002044A 惰轮轴螺栓 Idler gear shaft bolt
150-1002043A 惰齿轮衬套 Idler gear bushing
150-1002041A 惰齿轮 Idler gear
150-1002045 惰齿轮防磨板 Idler gear wear strip
150-1002025 定位销 Positioning pin
Q5220512 销5×12 Pin 5×12
G0100-1002170 喷嘴焊接件 Nozzle weldment
430-1002163 垫圈 Washer
G0100-1002162 过油螺栓 Oil-passing bolt
150-1002024 主轴承盖 Main shaft head cover
150-1002023 止推主轴承盖 Thrust main shaft head covet
150-1002014 主轴承盖(后） Main shaft head cover(rear)
G0100-1002118 主轴承盖螺栓 Main shaft head cover bolt
Q61901 螺塞NPT 1/8 Screw plug NPT 1/8
