Description

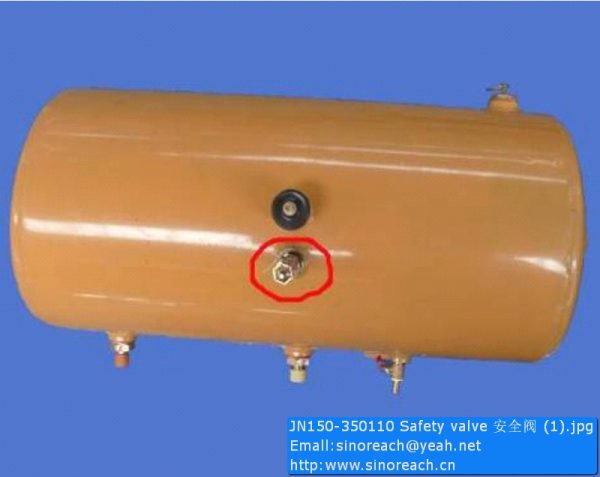

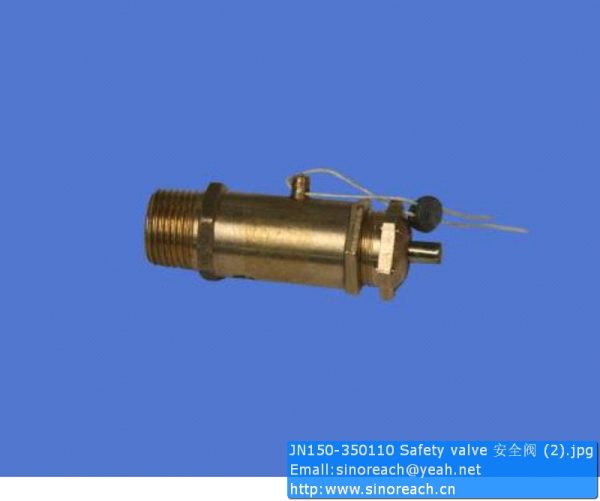

JN150-350110 Safety valve for CDM833 CDM835 CDM843 CDM853 CDM855 CDM855E parts
1 GB/T91-2000 开口销3.2×40 Cotter Pin 3.2×40 1
2 ZL10.6.1-5 开槽螺母M24×1.5 Notch Nut M24×1.5 1
3 ZL10.6.1-6 垫圈 Φ45×Φ25×4.5 Washer Φ45×Φ25×4.5 1
4 ZL10.6.1-4-1 输入法兰 4×Φ12/Φ96 Input Flange 4×Φ12/Φ96 1
5 ZL10.6.1-4-2 防尘罩 Dust Shroud 1
6 GB/T 9877.1-88 油封 FB 55×82×12 Taper Drive Gear Seal FB 55×82×12 2
7 GB/T 5785-2000 螺栓 M12×1.25×55 Bolt M12×1.25×55 6
8 GB/T 93-1987 垫圈 12 Washer 12 6
9 ZL10.6.1-8 轴承盖 Bearing Cover 1
10 ZL10.6.1-7 止推垫圈Φ65×Φ39×5.5 Thrust washer Φ65×Φ39×5.5 1
11 非标,大锥角 轴承 27709 Bearing 27709 2
12 ZL10.6.1-3 调整垫片Φ56×Φ46 Adjust washer Φ56×Φ46 1组
13 ZL10.6.1-2 轴承隔套Φ55.5×Φ45×13 Bearing Spacer Φ55.5×Φ45×13 1
14 ZL10.6.1-10 轴承套 Bearing Seat 1
15 ZL10.6.1-14 主动锥齿轮 Z=6 Drive Bevel Gear Z=6 1
16 GB/T 283-94 轴承 102605 Bearing 102605 1
17 ZL10.6.1-1 止动环 Stop Ring 1
18 ZL10.6.1-11 调整垫片Φ172×Φ116 Adjust washer Φ172×Φ116 1组
19 ZL15Ⅱ03.01.003 前主减壳 Front Final Drive Housing 1 前桥 Front axle
ZL15Ⅱ03.01.002 后主减壳 Rear Final Drive Housing 1 后桥
Rear axle
20 GB/T 6171-2000 螺母M20×1.5 Nut M20×1.5 0
21 ZL10.6.1-17 调整螺柱 M20×1.5×96 Adjust Bolt M20×1.5×96 0
22 ZL10.6.1-16 止推柱 Thrust Bolt 0
23 ZL10.6.1-22A 行星齿轮轴Φ22.149×154 Planet Gear Shaft Φ22.149×154 1
24 ZL10.6.1-20 行星齿轮垫 Planet Gear Washer 4
25 ZL10.6.1-23 半轴齿轮 Z=20 Axle Shaft Gear Z=20 2
26 ZL10.6.1-24 半轴齿轮垫Φ92×Φ58×1.71 Axle Shaft Gear Washer Φ92×Φ58×1.71 2
27 ZL10.6.1-19 差速器右壳 Diff. Right Case 1
28 ZL10.6.1-32 防松垫片 Lock plate 4
29 ZL10.6.1-31 差速器壳螺栓 M12×80 Diff. Case Bolt M12×80 8
30 GB/T 297-94 轴承 30215 Bearing 30215 2
31 ZL10.6.1-25 调整螺母 M135×1.5 Adjust Nut M135×1.5 2
32 ZL10.6.1-26 差速器轴承盖 Diff. Bearing Cover 2
33 ZL10.6.1-30 锁片 Lock Plate 4
34 ZL30.2.1-25 螺栓 M18×90 Bolt M18×90 4
35 ZL10.6.1-29 止动片 Stop Plate 2
36 ZL10.6.1-28 双联锁片 Both Link 2
37 GB/T 5783-2000 螺栓 Bolt M10×16 2
38 ZL10.6.1-21 行星齿轮 Z=11 Planet Gear Z=11 4
39 ZL10.6.1-27 铆钉 Rivet 12
40 ZL10.6.1-15 从动锥齿轮 Z=40 Driven Bevel Gear Z=40 1
41 ZL10.6.1-18 差速器左壳 Diff. Left Case 1
