Description

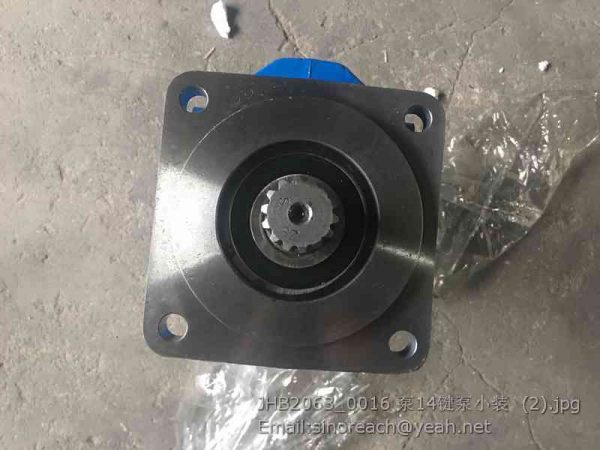

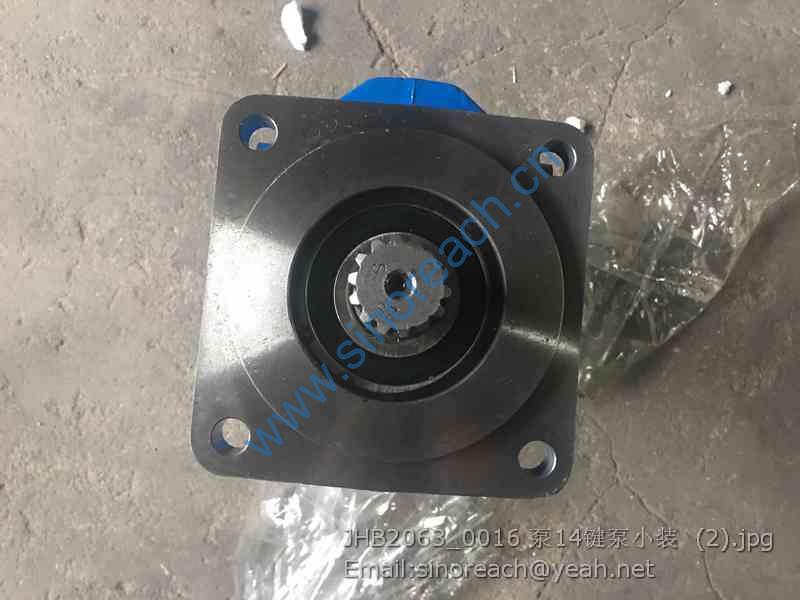

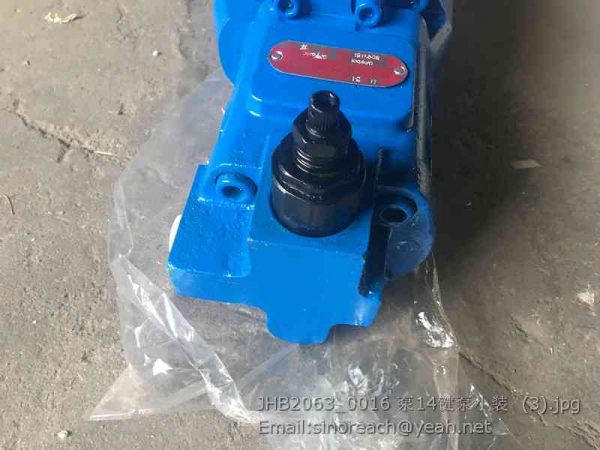

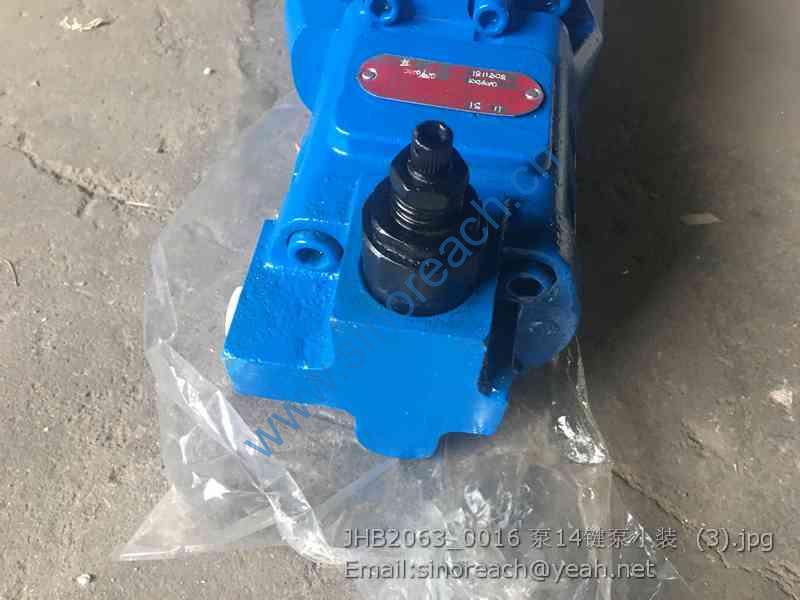

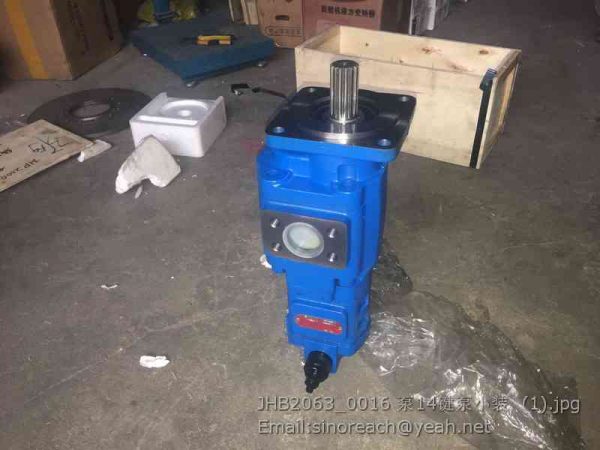

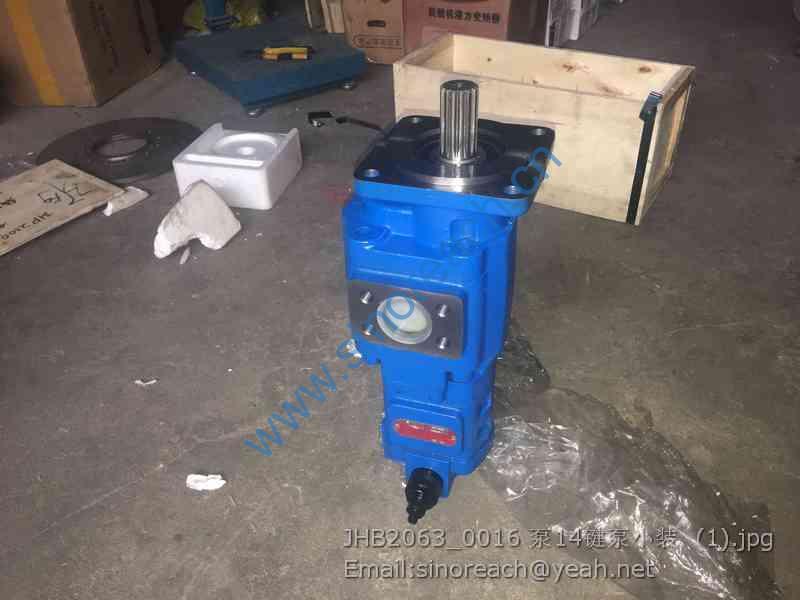

JHB2063/0016 gear pump
4110000076383 CHECK POWER OUTPUT WHEEL YD13 354 016
4110000076393 SHIFT GEAR
4110000367024 FLEXIBLE RETAINING RING 0630 513 068
4110000367135 NEEDLE BEARINGHK4516 45*52*16 0635 303 104
4110000367025 RETAINING RING FOR HOLE 0630 513 016
C18-4110000076 PTO2 PARTS P.T.02
4110000076394 SHAFT YD13 355 019
4110000076393 SHIFT GEAR
4021000017 BALL BEARING GB276-6209
4021000017 BALL BEARING GB276-6209
4110000076395 PUMP FLANGE YD13 355 008
4110000076396 INTAKE OIL TUBE YD13 221 006
4110000367130 PIPE ASSY.4642 211 001
4110000076320 JOINT YD13 321 002 M14*1.5/M18*1.5
4110000076370 COPPER WASHER 0634 801 038 14
C19-4110000076 CONTROL VALVE PARTS
4110000076402 SOLENOID VALVE 0501 315 338
4110000076390 ELECTRIC CABLE UNIT 6029 241 303
4030000311 PLUG JB1000-M10*1EpZn-35
4110000076224 COPPER SCREW 0634 801 152 A10*13.5 DIN7603
C2-4110000076 CASE PARTS
4110000076351 HOUSING YD13 301 001 (500)
4110000076239 PLUG 0636 305 019 AM26*1.5
4110000076013 O-RING 0634 303 233 H 23*2
4110000076237 PLUG SCREW 0636 305 007 AM14*1.5
4110000076014 O-RING 0634 306 522 11*2
4110000076297 BAFFLE YD13 301 002
4110000076333 SEALING COVER 4466 351 081Φ80
4110000076015 O-RING 0634 304 275 27*2
4110000076240 PLUG SCREW 0636 305 023 AM30*1.5
4110000076240 PLUG SCREW 0636 305 023 AM30*1.5
4110000076015 O-RING 0634 304 275 27*2
4110000076331 PLUG SCREW 0637 510 206 M30*1.5
4110000076157 BREATHER CAP 0750 131 027
4110000076337 LUBE-IN COVER YD13 301 004
4110000076046 O-RING 0634 313 529 57*3
4110000076277 OIL-IN COVER YD13 301 007
4110000076332 PLUG SCREW 0636 305 011 AM18*1.5
4110000076019 O-RING 0636 306 524 15*2
C3-4110000076 INPUT PARTS
4110000076347 TURBINE SHAFT YD13 302 002
4021000021 ROLLING BEARING GB276-6308
4110000076269 REGULATING SHIM 0769 120 427
4110000076210 RETAINING RING 0630 501 031 40*1.75
4110000076342 INPUT GEAR YD13 302 004 Z=50
4110000076256 SEALING RING 0734 317 252
4110000076335 OIL FEED FLANGE YD13 302 001
4110000076025 BEARING SEAT 4642 301 136
4110000076027 SEALING RING 0734 401 078
4110000076028 NEEDLE BEARING 0735 298 027 HK75*83*16
4110000076367 SEALING RING FOR SHAFT 0750 111 231 75×100×10
4110000076317 STAND-BY DRIVE SHAFT YD13 302 003
4110000076030 SEALING RING 0634 402 025
4110000076032 GEAR PUMP 0501 004 171
4021000106 BEARING GB276-6206
4022000018 KEY GB1096-6*22-35
4021000106 BEARING GB276-6206
4110000076282 SEALING SPACER(FULL SET)
C4-4110000076 OUTPUT PARTS
4110000076341 OUTPUT SHAFT YD13 303 001
4110000076338 OUTPUT GEAR YD13 303 003 Z=53
4021000164 BEARING GB283-NJ213E
4110000076309 REGULATING SHIM 1204 308 062
4110000076170 PRESS PLATE 4620 303 247
4110000076369 BOLT RETAINER 1269 302 164
4110000076366 STAND-BY DRIVE SHAFT 0750 111 116 WTB,90*120*13
4021000023 BEARING GB276-6311
4110000076213 RETAINING RING FOR HOLE 0630 502 048 120*4
4110000076268 REGULATING SHIM 0769 120 338
4110000076245 SLEEVE 0730 062 296 L=20
4110000076339 OUTPUT FLANGE YD13 303 012 (SAE 7C)
C5-4110000076 CONTROL PARTS
4030000311 PLUG JB1000-M10*1EpZn-35
4110000076224 COPPER SCREW 0634 801 152 A10*13.5 DIN7603
4110000076214 SET SCREW 0631 610 025 M10*10 DIN913 10.9
4110000076224 COPPER SCREW 0634 801 152 A10*13.5 DIN7603
4030000311 PLUG JB1000-M10*1EpZn-35
4110000076224 COPPER SCREW 0634 801 152 A10*13.5 DIN7603
4110000076281 SEALING SPACER(FULL SET)
4110000076391 OIL-LINE PLATE ASSEMBLY
C6-4110000076 SPEED INDICATOR PARTS
4110000076307 WASHER Q20-03 36
4110000076371 PLUG SCREW 0636 302 018 M36*1.5
4110000076332 PLUG SCREW 0636 305 011 AM18*1.5
4110000076019 O-RING 0636 306 524 15*2
C7-4110000076 IDLER PARTS
4110000076311 IDLE WHEEL SHAFT YD13 308 003
4110000076046 O-RING 0634 313 529 57*3
4110000076047 THRUST SHIM 4644 308 542
4110000076310 IDLE WHEEL YD13 308 001 Z=34
4110000076323 ROLLER GROUP YD13 308 002
4110000076206 RETAINING RING 0501 308 832
C8-4110000076 STOP BRAKE STAFF PARTS
4110000076345 PARKING BRAKE YD13 209 001(DFX.2-13B)
4110000076344 PARKING BRAKE FLANGE YD13 303 005
C9-4110000076 PRESSURE VALVE PARTS
4090000064 STEEL BALL GB308-20-GCR15
4110000076254 PRESSURE SPRING 0732 041 352
4110000076278 VALVE BUCKLE YD13 320 001
