Description

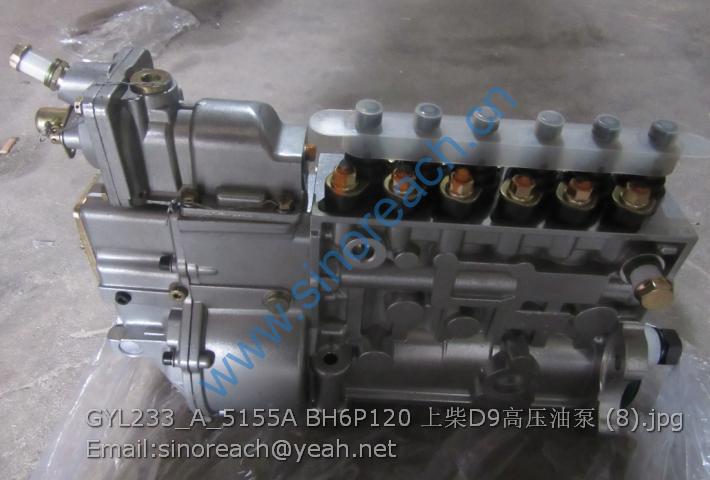

GYL233+A/5155A BH6P120 injection pump for SHANGCHAI spare parts
1 回油管焊接部件 FUEL RETURN PIPE ASSY (WELDED) G19-002-08+B
2 垫片 GASKET G19-125-03+A
3 六角头螺栓 BOLT B00000505(GB/T5783-M10*25)
4 平垫圈 WASHER B00001299(GB/T97.1-8-200HV-Y)
5 弹簧垫圈 SPRING WASHER B00001253(GB/T93-8)
6 油管 FUEL PIPE 771Z-19-003A+A
7 铜垫圈 COPPER WASHER B00001824(Q/SC598-14*20)
8 铰接螺栓 Hinge bolt B00002179(Q/SC642.1-01-M14*1.5)
9 垫片 GASKET G19-125-01+A
10 小六角头螺栓 BOLT B00001963(Q/SC611.1-M8*20)
11 机油泵吸油管焊接部件 PIPE ASSY (WELDED), OIL SUCTION PUMP G19-007-01+B
12 垫片 GASKET G19-102-01+A
13 小六角头螺栓 BOLT B00001966(Q/SC611.1-M8*25)
14 油管 FUEL PIPE G19-104-03+B
15 铰接螺栓 BOLT B00002185(Q/SC642.1-01-M8*1)
16 铜垫圈 COPPER WASHER B00001855(Q/SC598-8*14)
17 夹箍 CLAMP G19-122-01+A
18 六角头螺栓 BOLT B00001899(Q/SC611.1-M10*12)
19 弹簧垫圈 SPRING WASHER B00001237(GB/T93-10)
20 回油管焊接部件 FUEL RETURN PIPE ASSY (WELDED) A771Z-19-010+B
21 O形橡胶密封圈 O-RING B00002471(Q/SC648-13.8*2.4)
1 冷却水泵部件 WATER PUMP ASSY G20-001-05+C
2 水泵齿轮 WATER PUMP GEAR G20-103-01+B
3 放水阀 WATER DRAIN COCK 741G-02-004+A
1 海水泵组件 RAW WATER PUMP GROUP G21-000-01+B
1 橡胶水管 HOSE B00002398(Q/SC646-45*250)
2 喉箍 CLAMP B00001573(Q/SC1302-40~64)
3 橡胶水管 HOSE B00002395(Q/SC646-45*150)
4 六角头螺栓 BOLT B00000509(GB/T5783-M10*30)
5 弹簧垫圈 SPRING WASHER B00001237(GB/T93-10)
6 冲制光垫圈 STAMPED WASHER B00001766(Q/SC596-10*18)
7 橡胶水管 HOSE B00002391(Q/SC646-45*100)
8 调温器装配部件 THERMOSTAT ASSY G24-004-12+A
8.1 垫片 GASKET 761-24-004A+A
8.2 蜡质调温器 THERMOSTAT, WAX 761G-24-003B+A
8.3 垫片 GASKET 761G-24-006B+A
8.4 调整垫片 ADJUST GASKET 761G-24-041+A
8.5 调温器体 HOUSING, THERMOSTAT G24-116-02+A
8.6 调温器座 BASE, THERMOSTAT G24-145-01+A
8.7 六角头螺栓 BOLT B00000392(GB/T5782-M10*60)
8.8 弹簧垫圈 SPRING WASHER B00001237(GB/T93-10)
8.9 方头锥形螺塞 SQUARE HEAD CONE PIPE PLUG B00001716(Q/SC585-R1/2)
9 除气管 AIR DISCHARGING PIPE G24-151-01+B
10 橡胶水管 HOSE B00002321(Q/SC646-19*380)
11 喉箍 CLAMP B00001569(Q/SC1302-21~44)
12 水管焊接部件 WATER PIPE ASSY (WELDED) G24-003-05+B
13 垫片 GASKET 761G-24-044+A
14 六角头螺栓 BOLT B00000631(GB/T5783-M8*20)
15 弹簧垫圈 SPRING WASHER B00001253(GB/T93-8)
16 橡胶水管 HOSE G24-142-01+A
17 水管 HOSE G24-109-01+A
18 橡胶水管 HOSE B00002408(Q/SC646-51*145)
19 垫片 GASKET G24-113-01+A
20 放水阀 WATER DRAIN COCK 741G-02-004+A
21 水管 HOSE G24-110-01A+A
22 垫片 GASKET G18-107-01+A
23 六角头螺栓 BOLT B00000392(GB/T5782-M10*45)
24 水管焊接部件 WATER PIPE ASSY (WELDED) G24-013-01+A
1 高压油管部件(第一缸) HIGH PRESSURE FUEL PIPE ASSY, NO.1 CYLINDER G26-001-03+A
2 高压油管部件(第二缸) HIGH PRESSURE FUEL PIPE ASSY, NO.2 CYLINDER G26-002-03+A
3 高压油管部件(第三缸) HIGH PRESSURE FUEL PIPE ASSY, NO.3 CYLINDER G26-003-03+A
4 高压油管部件(第四缸) HIGH PRESSURE FUEL PIPE ASSY, NO.4 CYLINDER G26-004-03+A
5 高压油管部件(第五缸) HIGH PRESSURE FUEL PIPE ASSY, NO.5 CYLINDER G26-005-03+A
6 回油管焊接部件 FUEL RETURN PIPE ASSY (WELDED) 761-26A-010+A
7 铰接螺栓 BANJO BOLT B00002232（Q/SC642.3-1-M8*1*22）
8 复合式密封硬垫圈 RUBBER COATED HARD WASHER B00001555（Q/SC1294-8）
9 六角头螺栓 BOLT B00000611(GB/T5783-M6*25)
10 弹簧垫圈 SPRING WASHER B00001252(GB/T93-6)
11 平垫圈 WASHER B00001297(GB/T97.1-6-200HV-Y )
12 上夹片 CLAMP A762ZA-26-004+A
13 夹箍衬垫 CLAMP A762ZA-26-003+A
14 油管固定支架焊接部件 FUEL RETURN PIPE ASSY (WELDED) A762ZA-26-010+A
15 平垫圈 WASHER B00001275(GB/T97.1-10-200HV-Y)
16 高压油管部件(第六缸) HIGH PRESSURE FUEL PIPE ASSY, NO.6CYLINDER G26-006-03+A
17 夹片 CLAMP G26-115-01+A
18 夹片 CLAMP G26-117-01+A
19 六角头螺栓 BOLT B00000591(GB/T5783-M5*20)
20 弹簧垫圈 SPRING WASHER B00001251(GB/T93-5)
21 I型六角螺母 BOLT B00000787(GB/T6170-M5-Y)
22 六角头螺栓 BOLT B00000631(GB/T5783-M8*20)
23 弹簧垫圈 SPRING WASHER B00001253(GB/T93-8)
24 低压油管 FUEL PIPE, LOW PRESSURE 771-26-014 +A
25 回油管焊接部件 FUEL RETURN PIPE ASSY (WELDED) 771-26-180+A
26 柴油软管 FUEL HOSE 763G-26-001A+A
27 夹箍 CLAMP G26-104-01+A
28 弹簧垫圈 SPRING WASHER B00001237(GB/T93-10)
29 小六角头螺栓 Hexagon head bolts-Full thread B00001910(Q/SC611.1-M10*28)
30 夹片 CLAMP G26-114-01+A
31 低压油管 FUEL PIPE, LOW PRESSURE 771-26-015+A
32 夹片焊接部件 CLAMP ASSY (WELDED) G26-007-01+A
33 夹片 CLAMP G26-116-01+A
34 塑料回油管 PLASTIC HOSE,INJECTOR LEAK-OFF 761G-26A-007+A
35 垫块 SPACER 765KB-02-002+A
36 回油管焊接部件 FUEL RETURN PIPE ASSY (WELDED) 761-26A-020+A
1 柴油机监控仪 MONITOR ,ENGINE G31-016-02+A
1.1 主仪表控制箱 CONTROL BOX, INSTRUMENT G31-109-06+A
1.2 远程显示仪表 DISPLAYER, REMOTE MONITOR G31-110-02+A
1.3 转速传感器 SENSOR, SPEED G31-111-02+A
1.4 温度传感器 SENSOR, TEMPERATURE G31-112-04+A
1.5 压力传感器 PRESSURE SENSOR G31-113-03+A
1.6 传感器电线部件 WIRE ASSY G31-017-02+A
1.7 控制电线部件 WIRE ASSY G31-018-02+A
1.8 远程显示连接线 WIRE, REMOTE MONITOR G31-019-01+A
2 夹箍 CLAMP G31-134-01+A
3 夹箍 CLAMP G31-120-01+A
4 六角头螺栓 BOLT B00000609(GB/T5783-M6*20)
5 弹簧垫圈 SPRING WASHER B00001252(GB/T93-6)
6 平垫圈 WASHER B00001297(GB/T97.1-6-200HV-Y)
7 控制箱安装板 MOUNTING PLATE, CONTROL BOX G31-118-01+A
8 垫块 SPACER G31-119-01+A
1 海淡水热交换器组件 HEAT EXCHANGER GROUP G35-000-01+C
1 增压器组件 TURBOCHARGER GROUP G38-000-37+A
1 膨胀水箱组件 EXPANSION TANK GROUP G39-000-01A+A
1 连接螺柱 STUD 761G-06-012B+A
2 量规部件 GAUGE ASSY 761G-49-010A+A
3 气门弹簧装拆工具 TOOL, VALVE SPRING 761G-49-030A+A
4 装活塞工具 PITON ASSEMBLY TOOL 761G-49-040A+A
5 扭矩扳手 WRENCH B00000001(0-300 Q/SC627)
6 套筒 SLEEVE B00000289(GB/T3390.1-22*12.5)
7 套筒 SLEEVE B00000290(GB/T3390.1-24*12.5)
8 套筒 SLEEVE B00000293(GB/T3390.3-H12.5)
9 套筒 SLEEVE B00000294(GB/T3390.4-JG12.5*125)
10 内六角扳手 HEX SOCKET SCREW KEY B00000340(GB/T5356-12R)
11 机油燃油滤清器装拆工具 WRENCH, OIL FILTER G49-001-01A+A
1 水空中冷器组件 INTERCOOLER GROUP, WATER TO AIR G61-000-01+D
1 喷油泵总成 FUEL INJECTION PUMP ASSY 8 400 360 532+A
1 增压器涡轮隔热罩壳部件 HEAT SHIELD, TURBOCHARGER GR-13F-000+A
1 喷油器总成 INJECTOR ASSY 343E-000+A
1 空滤器组件 AIR FILTER GROUP KLCY-14-000+A
1 纸质燃油滤清器组件 FUEL FILTER GROUP C0810B-0000+A
1 波形膨胀节 EXPANSION CONNECTOR G00-001-01+A
2 过渡弯管部件 ELBOW ASSY G00-002-01+A
3 六角头螺栓 BOLT B00000550(GB/T5783-M12*45)
4 I型六角螺母 NUT B00000772(GB/T6170-M12-Y)
1 撑条 BRACE G00-107-01+A
2 六角法兰面螺栓 BOLT B00001994(Q/SC622-M10*16)
3 I型六角螺母 NUT B00000768(GB/T6170-M10-Y)
4 喷油泵传动轴罩壳撑条 FUEL INJECTION PUMP DRIVE SHAFT GUARD SUPPORT G00-107-02+B
5 喷油泵传动轴罩壳 FUEL INJECTION PUMP DRIVE SHAFT GUARD G00-106-01+B
